The SGM600is born from the elegance and prestige that has always distinguished BEINAT S.r.l. and from the home
fitness concept.

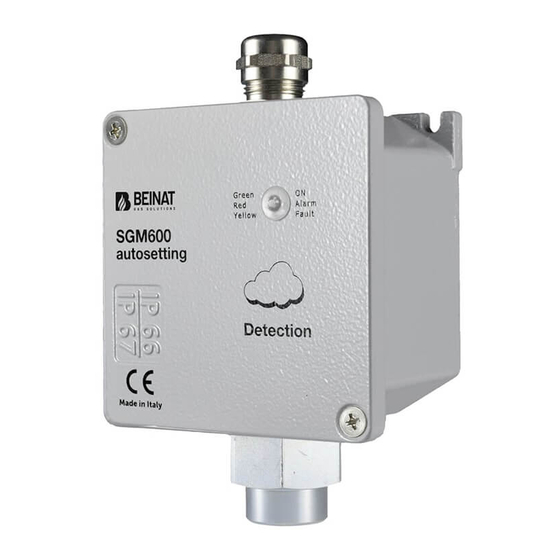

The probe is a Catalytic gas detection unit with IP66 protection that, together with one of BE INAT's industrial
type Control Units, detects the presence of esplosive gas such as Methane, LPG, Hydrogen, and other types of
gas.
The probe is managed by a microprocessor which not only supplies an alarm signal to the control unit connected
to it, but also allows execution of a self-diagnosis and therefore an AUTOMATIC CALIBRATION, in order to always
have the maximum detection accuracy.
The self-calibration means the probe adapts in harsh and variable temperature environments, avoiding false alarms
due to anomalous events.
The probe has a 0 ÷ 20 % LEL linear output conforming to the 4 ÷ 20mA standard, for which can be connected
with one of BEINAT's industrial control units.
The important innovation of this probe is:
The possibility to substitute the sensor at the end of the operating cycle or fault by the technician without having
to send to BEINAT Srl.
Indispensabile instrument for the annual check of the probes
Instrument of testing TS1008
To facilitate the reading of the functional parameters of the probe as well
as the control of annual operating, the BEINAT S.r.l. has built a new
portable tester TS1008.
The tester allows to read all the data in the memory of the probes eand by
serial transmission, it prints the ticket that confirms the testing data.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel and in
accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with particular
environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual carefully and
keep it for future reference. It is also recommended to perform the electrical connections correctly as
per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side
Installation and user
guide

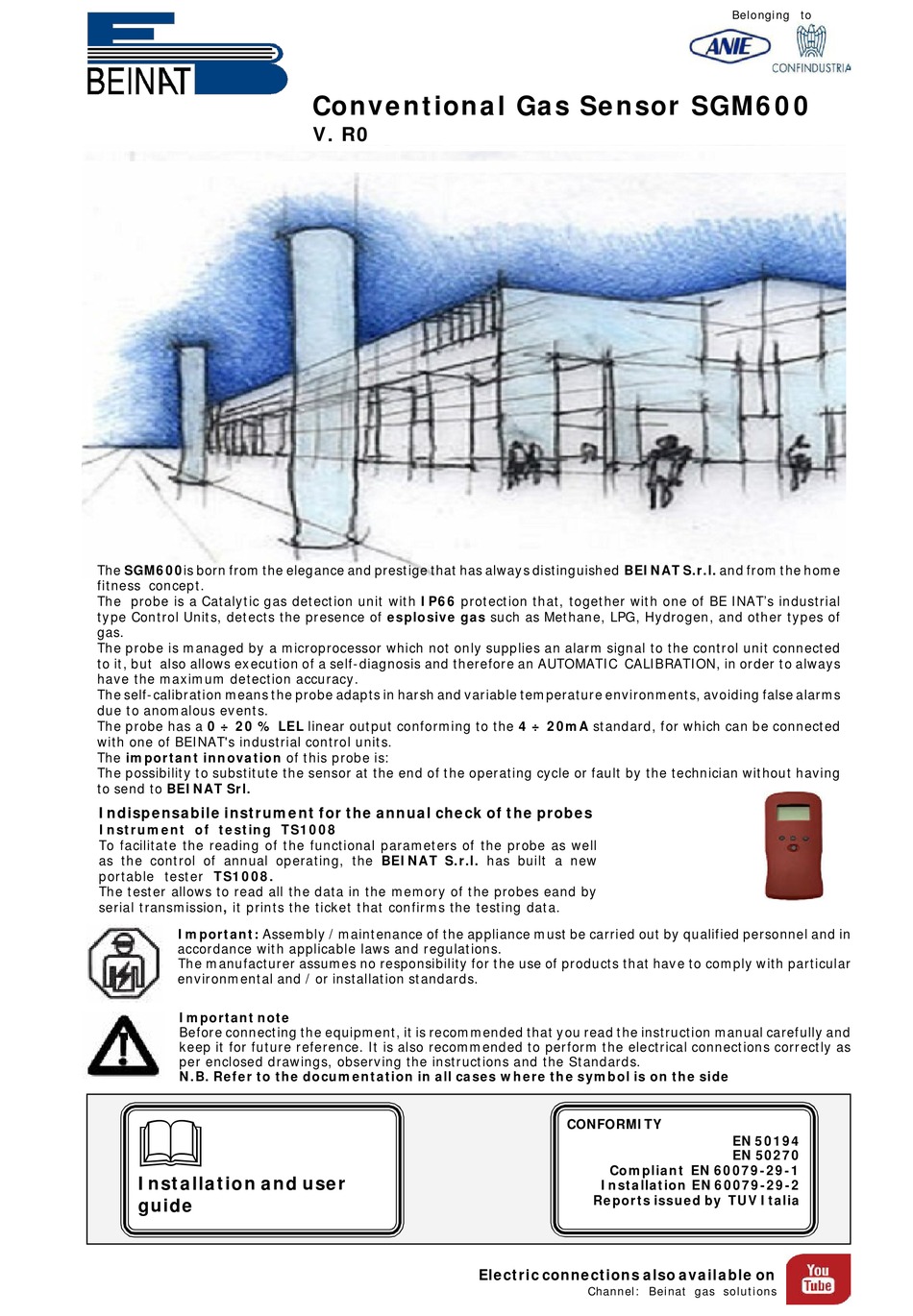

Conventional Gas Sensor SGM600
V. R0
Electric connections also available on
Belonging to
CONFORMITY
EN 50194
EN 50270
Compliant EN 60079-29-1
Installation EN 60079-29-2
Reports issued by TUV Italia
Channel: Beinat gas solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGM600 and is the answer not in the manual?

Questions and answers

Summary of Contents for BEINAT SGM600

  • Page 1 Conventional Gas Sensor SGM600 V. R0 The SGM600is born from the elegance and prestige that has always distinguished BEINAT S.r.l. and from the home fitness concept. The probe is a Catalytic gas detection unit with IP66 protection that, together with one of BE INAT’s industrial type Control Units, detects the presence of esplosive gas such as Methane, LPG, Hydrogen, and other types of gas.
  • Page 2 When doing the electrical connections, follow the drawing closely. Any use of the detector for purposes other than the intended one is considered improper, and as a result of which BEINAT S.r.l. therefore disclaims any responsibility for possible damages caused to people, animals or objects.
  • Page 3 Compatible control units CONTROL UNITS MOUNTING PROBES Max. DEGREE ALARMS POSITIVE OPERATING protec. alarms safety range GS100M unit 1 zone Wall/cabinet IP44 GS300-Mc unit 1 zone Wall/cabinet IP44 BX444-MC unit 1 zone Wall/cabinet IP44 BX150 unit 1 zone Panel IP42 BX180 unit 1 zone Omega bar DIN IP20...
  • Page 4 Positioning of the Sensor The position of the probe is a crucial factor for a gas detection unit correct functioning. In order to obtain the maximum results from an appliance and minimize the probabilities of false alarms, we recommend to follow this diagram and to keep in mind the following general rules. The remote probe must be located at different heights, according to the type of gas.
  • Page 5 Contact capacity 1A 30VDC SELV montato su sonda SELECTION OF THE OPERATING RANGE 100% The SGM600 Conventional Probes, NOT SUITABLE IN ATEX ZONE, leave the factory with a default Operating Range value set at 20% Selection operation range of the LEL To select the operation range to 100% LEL you need to move the jumper between the central and the left pole.
  • Page 6 2 and terminal 3. Linear Otput 4-20 mA If othe r p rob le ms arise , a sp e cialise d and /or authorise d te chnician and /or the Distrib utor of BEINAT S.r.l. should be contacted directly. Page 6...
  • Page 7 Gas imput Test TEST SGM600 with pre calibrated gas bottle The installation of the SGM600 probe, its ordinary and at 20% of LEL ±2% extraordinary maintenance, and its out of service removal at the end of the functional life guaranteed by the manufacturer, For GAS must be carried out by authorized or specialized personnel.
  • Page 8 Stamp and signature of the dealer Purchase date: Serial Number : The Beinat S.r.l. following the targhet to improve its products, reserves the right to modify the technical features, aesthetic and functional any time without prior notice. BEINAT S.r.l. Via Fatebenefratelli 122/C 10077, S. Maurizio C/se (TO) - ITALY Tel.
