FANOX EMM-7 Instruction Manual

FANOX EMM-7 Instruction Manual

Electrical multifunction meter

Advertisement

Quick Links

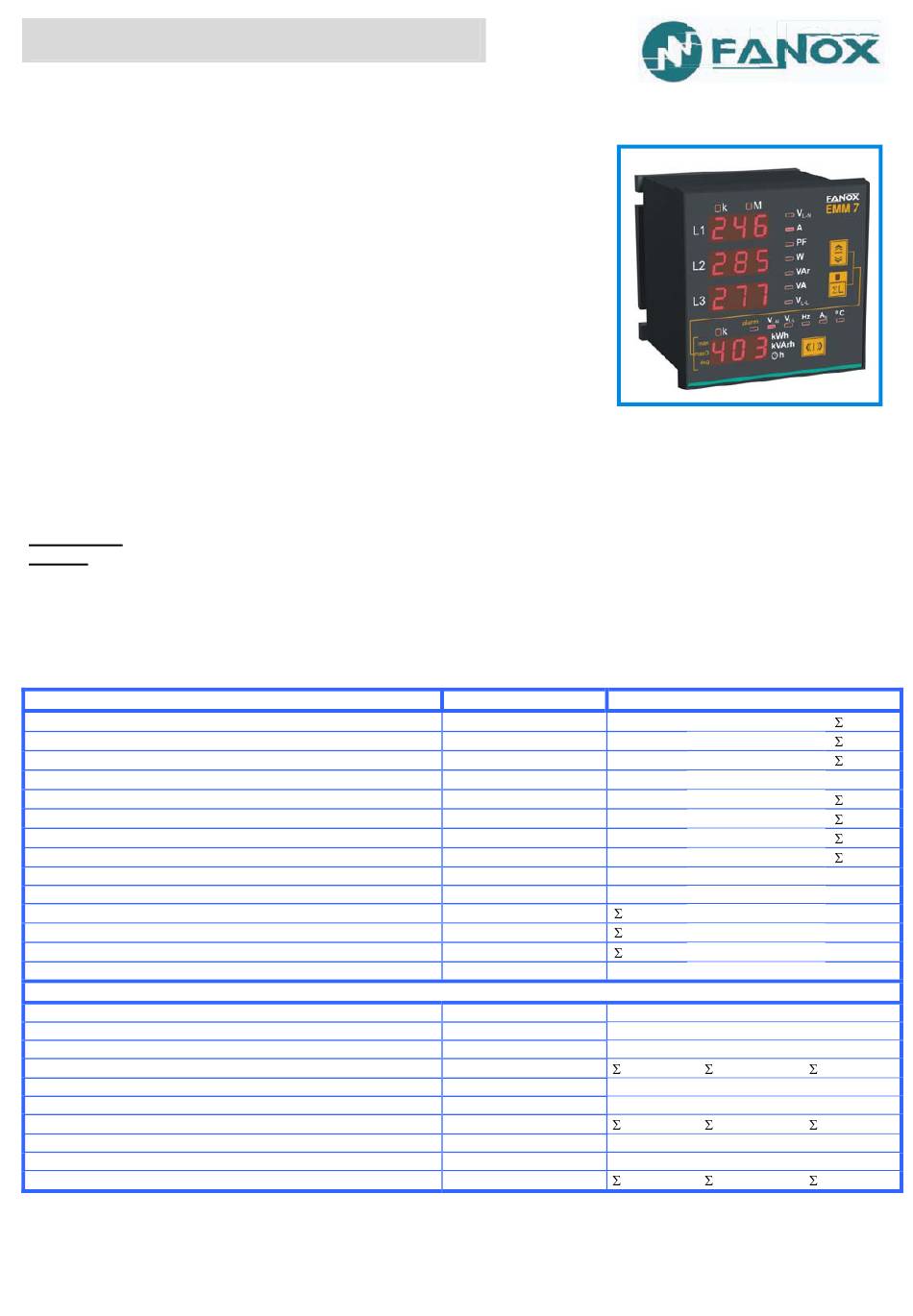

INSTRUCTION MANUAL
IM442-EU-F v0.4
EMM-7
GENERALITY
These digital multimeters allow to monitor all the electrical parameters present
on a distribution line. The local display of 30 electrical parameters is carried out
by 4 display with red LED guaranteeing a good and contemporary reading of
more measures. A simple front panel completes the intuitive selection of
several electrical parameters, with a great quantity of information. These
instruments, over of the instantaneous measures, display the maximum peak
of the main parameters (maximum peak and maximum demand). The
presence of the serial port communication EIA485 (option) allows the
connection in network of more instruments to realize centralized measure
networks.
These multimeters replace in a unique device, all the functions of voltmeters,
ammeters, energy meters, cosphimeters, wattmeters, varmeters, frequency
meters permitting a great economic saving, a reduction of dimension and the
wiring energy and a simplification in the purchase and management of the
instruments because this is a model usable at all of need of local measure in the electrical panel, machine, etc.
AVAILABLE MODELS
It's available only a model for flush mounting for panel.
- EMM-7
basic version in execution for flush mounting DIN 96x96mm
ACCESSORIES AND OPTIONS
accessories: frontal protection transparent cover
options:
analog output (alternative to digital input option)
digital output
serial output RS485
insulated current inputs
neutral current input
digital input (alternative to analog Output option)
MEASURED PARAMETERS
phase and three phase voltages
phase to phase and three phase system voltages
phase and three phase currents
neutral current
phase and three phase power factors
phase and three phase active powers
phase and three phase system reactive powers
phase and three-phase system apparent powers
frequency
temperature
three phase system active energy
three phase system reactive energy
three phase system apparent energy
hour counter
average and peak values (maximums):
maximum phase voltages
maximum phase currents
maximum neutral current
maximum three-phase powers
maximum average phase currents (maximum demand)
maximum average neutral current (maximum demand)
maximum average three-phase powers (maximum demand)
average phase currents
average neutral current
average three-phase powers
