Summary of Contents for Velleman VMA450

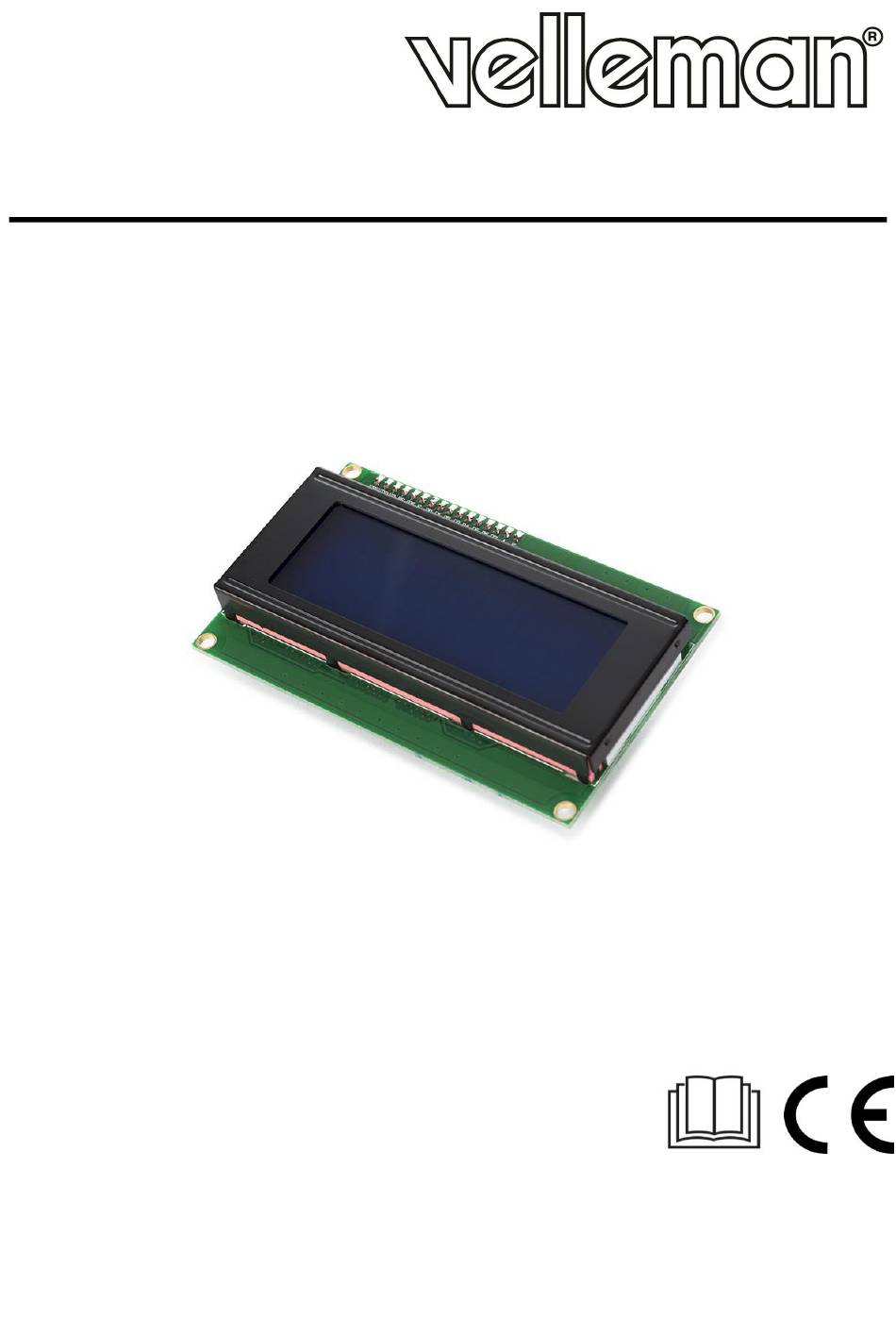

  • Page 1 VMA450 USER MANUAL...
  • Page 2: Safety Instructions

    • Nor Velleman nv nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical…) arising from the possession, use or failure of this product.
  • Page 3: What Is Arduino

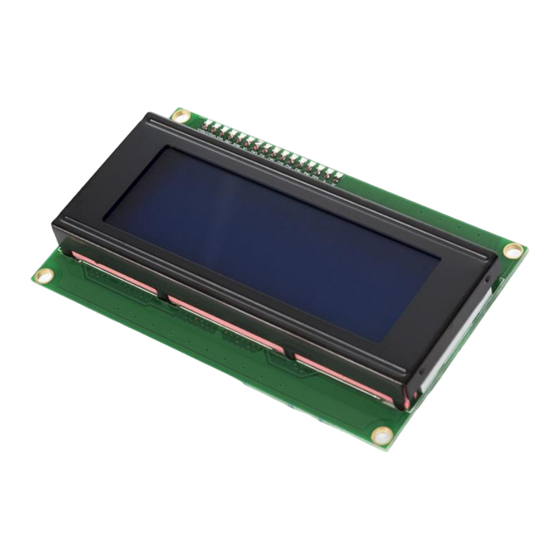

    Overview General The VMA450 is an Arduino ® compatible LCD display module with high speed I²C interface. It can display 20 x 4 characters (white characters on a blue background). Specifications supply voltage ......................5 VDC colour background ......................
  • Page 4: Operation

    ® VMA450 Operation 1. Connect the VMA450 to the VMA100/Arduino ® Uno. 2. Download the library file LiquidCrystal_I2C.zip from our website www.velleman.eu. 3. Open the Arduino ® IDE and connect the VMA100/Arduino ® Uno to your laptop/desktop. 4. Load the LiquidCrystal_I2C.ZIP into the IDE.
  • Page 5 © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
  • Page 6 • Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
