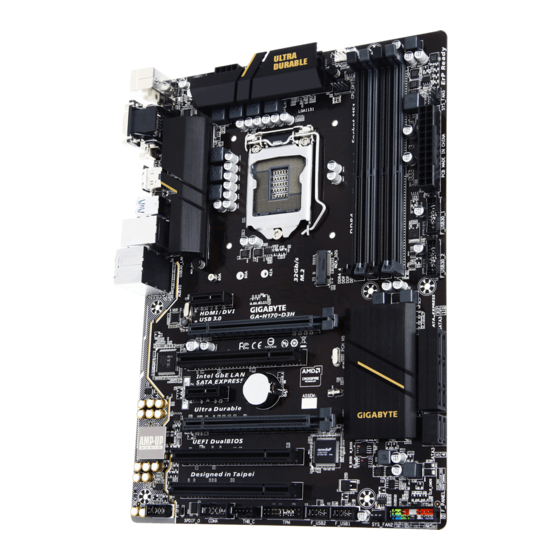

GA-H170-D3H
GA-H170-D3H DDR3
User's Manual
Rev. 1002
12ME-H170D3H-1002R
GA-H170-D3H
GA-H170-D3H DDR3
To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GA-H170-D3H and is the answer not in the manual?

Questions and answers

Related Manuals for Gigabyte GA-H170-D3H

Summary of Contents for Gigabyte GA-H170-D3H

  • Page 1 User's Manual Rev. 1002 12ME-H170D3H-1002R GA-H170-D3H GA-H170-D3H DDR3 For more product details, please visit GIGABYTE's website. To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

  • Page 3: Table Of Contents

    Table of Contents GA-H170-D3H Motherboard Layout ................4 GA-H170-D3H DDR3 Motherboard Layout ..............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 1-2 Product Specifications ..................7 Installing the CPU ..................10 Installing the Memory ..................10 Installing an Expansion Card ................. 11 Back Panel Connectors ..................

  • Page 4: Ga-H170-D3H Motherboard Layout

    GA-H170-D3H Motherboard Layout CPU_FAN ATX_12V KB_MS_USB SYS_FAN1 CPU_OPT LGA1151 HDMI R_USB30 USB30_LAN AUDIO PCIEX1_1 GA-H170-D3H Intel ® PCIEX16 GbE LAN PCI1 ® Super I/O Intel H170 PCIEX1_2 ® PCIEX4 PCI2 PCIe to M_BIOS CODEC PCI Bridge B_BIOS PCI3 CLR_CMOS F_AUDIO...

  • Page 5: Ga-H170-D3H Ddr3 Motherboard Layout

    GA-H170-D3H DDR3 Motherboard Layout CPU_FAN ATX_12V KB_MS_USB SYS_FAN1 CPU_OPT LGA1151 HDMI R_USB30 USB30_LAN AUDIO PCIEX1_1 GA-H170-D3H DDR3 Intel ® PCIEX16 GbE LAN PCI1 ® Super I/O Intel H170 PCIEX1_2 ® PCIEX4 PCI2 PCIe to M_BIOS CODEC PCI Bridge B_BIOS PCI3...

  • Page 6: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 7: 1-2 Product Specifications

    Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Š Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Memoryk 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory Š...
  • Page 8 Expansion Slots Š 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) Š...
  • Page 9 * G IGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. GA-H170-D3H GA-H170-D3H DDR3 Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices. Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps. - 9 -...

  • Page 10: Installing The Cpu

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 11: Installing An Expansion Card

    The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz (the actual resolutions supported depend on the monitor being used). Connect a monitor that supports D-Sub connection to this port. j Only for GA-H170-D3H. k Only for GA-H170-D3H DDR3. - 11 -...
  • Page 12 DVI-D Port (Note) The DVI-D port conforms to the DVI-D specification and supports a maximum resolution of 1920x1200@60 Hz (the actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI-D connection to this port. HDMI Port The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD Master Audio formats.

  • Page 13: Internal Connectors

    Internal Connectors 10 11 ATX_12V F_AUDIO SPDIF_O CPU_FAN F_USB30_1/F_USB30_2 SYS_FAN1/2/3 F_USB1/F_USB2 CPU_OPT SATA EXPRESS THB_C SATA3 0/1/2/3/4/5 COMA M2A_32G CLR_CMOS F_PANEL Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. •...
  • Page 14 1/2) ATX_12V/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed. The power connector possesses a foolproof design. Connect the power supply cable to the power connector in the correct orientation.
  • Page 15 B S S 1 2 3 5) CPU_OPT (Water Cooling CPU Fan Header) The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The speed control function requires the use of a fan with fan speed control design.
  • Page 16 B S_ 8) M2A_32G (M.2 Socket 3 Connector) The M.2 connector supports M.2 SATA SSDs and M.2 PCIe SSDs and support RAID configuration through the Intel Chipset. Please note that an M.2 PCIe SSD cannot be used to create a RAID set either with ® an M.2 SATA SSD or a SATA hard drive. To create a RAID array with an M.2 PCIe SSD, you must set up the configuration in UEFI BIOS mode. Refer to Chapter 3, "Configuring a RAID Set," for instructions on configuring a RAID array.
  • Page 17 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. •...
  • Page 18 11) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.
  • Page 19 SERIRQ LAD3 F_USB3 F LAD2 VCC3 LAD1 SUSCLK 15) THB_C (Thunderbolt Add-in Card Connector) ™ This connector is for a GIGABYTE Thunderbolt add-in card. ™ Pin No. Definition GPIOA B S S GPIOB Supports a Thunderbolt add-in card. ™ N_-SLP_S3...

  • Page 20: Chapter 2 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.

  • Page 21: Startup Screen

    Startup Screen The following startup Logo screen will appear when the computer boots. (Sample BIOS Version: F1c) Function Keys • When the system is not stable as usual, select the Load Optimized Defaults item to set your system to its defaults. •...
  • Page 22 ` M.I.T. Current Status This screen provides information on CPU/memory frequencies/parameters. ` Advanced Frequency Settings & CPU Clock Ratio Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU being installed. &...
  • Page 23 & CPU Enhanced Halt (C1E) (Note) Enables or disables Intel CPU Enhanced Halt (C1E) function, a CPU power-saving function in system halt ® state. When enabled, the CPU core frequency and voltage will be reduced during system halt state to decrease power consumption.
  • Page 24 & Memory Boot Mode (Note) Provides memory detection and training methods. Auto Lets the BIOS automatically configure this setting. (Default) S kip memory detection and training in some specific criteria for faster memory Enable Fast Boot boot. Disable Fast Boot Detect and train memory at every single boot. & Memory Enhancement Settings Provides several memory performance enhancement settings: Normal (basic performance), Relax OC, Enhanced Stability, and Enhanced Performance.
  • Page 25 ` Chipset Voltage Control This section provides Chipset voltage control options. ` DRAM Voltage Control This section provides memory voltage control options. ` PC Health Status & Reset Case Open Status Keeps or clears the record of previous chassis intrusion status. (Default) Disabled Clears the record of previous chassis intrusion status and the Case Open field will Enabled...
  • Page 26 & Fan Speed Percentage Allows you to control the fan speed. This item is configurable only when CPU OPT Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & 1st System Fan Speed Control (SYS_FAN1 Connector) Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the system temperature.

  • Page 27: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 28: Bios Features

    System program. (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.
  • Page 29 & SATA Support All Sata Devices All SATA devices are functional in the operating system and during the POST. (Default) Last Boot HDD Only Except for the previous boot drive, all SATA devices are disabled before the OS boot process completes. This item is configurable only when Fast Boot is set to Enabled or Ultra Fast.
  • Page 30 & Other PCI Device ROM Priority Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller other than the LAN, storage device, and graphics controllers. Disables option ROM. Disabled Legacy Only Enables legacy option ROM only. UEFI Only Enables UEFI option ROM only.

  • Page 31: Peripherals

    Peripherals & Intel Platform Trust Technology (PTT) Enables or disables Intel PTT Technology. (Default: Disabled) ® & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. IGFX Sets the onboard graphics as the first display. Sets the graphics card on the PCIEX16 slot as the first display. (Default) PCIe 1 Slot Sets the graphics card on the PCIEX4 slot as the first display. PCIe 2 Slot & Audio LED Enables or disables the onboard audio LED function. Disables this function. Off Still Mode The LEDs stay constantly on.
  • Page 32 ` Trusted Computing 2.0 This sub-menu appears only when Intel Platform Trust Technology is set to Enabled. & Security Device Support Enables or disables Trusted Platform Module (TPM). (Default: Enabled) & Pending operation To clear TPM related settings, set this item to TPM Clear. (Default: None) &...

  • Page 33: Chipset

    Chipset & VT-d (Note) Enables or disables Intel Virtualization Technology for Directed I/O. (Default: Disabled) ® & Internal Graphics Enables or disables the onboard graphics function. (Default: Auto) & DVMT Pre-Allocated Allows you to set the onboard graphics memory size. Options are: 32M~512M. (Default: 64M) &...

  • Page 34: Power Management

    Power Management & AC BACK Determines the state of the system after the return of power from an AC power loss. Always Off The system stays off upon the return of the AC power. (Default) Always On The system is turned on upon the return of the AC power. The system returns to its last known awake state upon the return of the AC power.
  • Page 35 & Soft-Off by PWR-BTTN Configures the way to turn off the computer in MS-DOS mode using the power button. Press the power button and then the system will be turned off instantly. (Default) Instant-Off Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power button is pressed for less than 4 seconds, the system will enter suspend mode.

  • Page 36: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 37: Chapter 3 Appendix

    Chapter 3 Appendix 3-1 Configuring a RAID Set RAID Levels RAID 0 RAID 1 RAID 5 RAID 10 Minimum Number of Hard ≥2 ≥3 ≥4 Drives Array Capacity Number of hard Size of the smallest (Number of hard (Number of hard drives * Size of the drive drives -1) * Size of drives/2) * Size of the...
  • Page 38 3. On the Intel(R) Rapid Storage Technology menu, press <Enter> on Create RAID Volume to enter the Create RAID Volume screen. Enter a volume name with 1~16 letters (letters cannot be special characters) under the Name item and press <Enter>. Then, select a RAID level. RAID levels supported include RAID 0, RAID 1, Recovery, RAID 10, and RAID 5 (the selections available depend on the number of the hard drives being installed).

  • Page 39: Drivers Installation

    You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. Please visit GIGABYTE's website for details on configuring a RAID array. Please visit GIGABYTE's website for more software information. Please visit GIGABYTE's website for details on configuring the audio software. - 39 -...

  • Page 40: Regulatory Statements

    Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
  • Page 41 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 42 - 42 -...
  • Page 43 - 43 -...

  • Page 44: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231, Taiwan TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: http://esupport.gigabyte.com...
