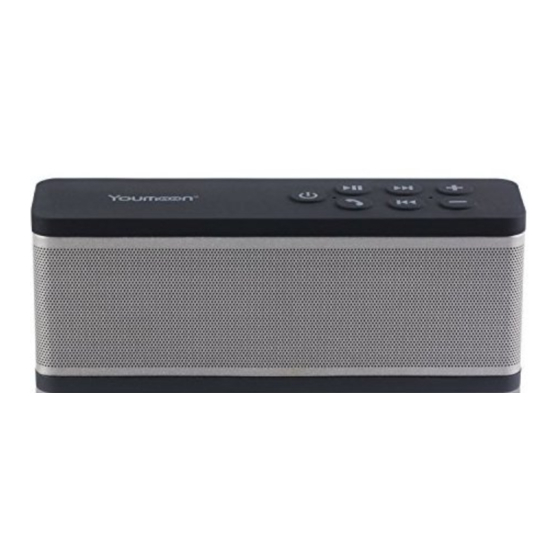

Youmoon YM-Z38 User Manual

Bluetooth Speaker

User Guide
YM-Z38
Read this manual carefully before putting
the appliance into operation and keep
this manual for future reference.
Do not insert any metal object into the
device.
To avoid a static charge, do not use the
device in an extremely dry climate.
Do not attempt to repair the device
yourself.
Batteries (battery pack or batteries
installed) shall not be exposed to
excessive heat such as sunshine,
fire or the like.
1.Press and hold the Power on/off button
until you hear a tone, the Bluetooth status
LED will flash red and blue, indicating that
the Bluetooth speaker is in pairing mode.
2.Set your Bluetooth-enabled device to
search for Bluetooth devices.
3.When the Bluetooth-enabled device finds
the Bluetooth speaker, select "YM-Z38"
from the list of found devices.
4.After a successful pairing, a beep tone
will be heard indicating that the device is
paired and the Bluetooth status LED will
stay solid blue.
If a previously paired device is in range
when the Bluetooth speaker is turned on,
the Bluetooth speaker will connect to it
automatically.
YM-Z38
1 2
Bluetooth Speaker USB charging cable
3 4
AUX input cable Warranty card
Bluetooth version 3.0
Bluetooth profiles HSP, HFP, A2DP
and AVRCP
Bluetooth operating 10 meters (equal to
distance 33 feet)
Output power 5wX2
Frequency response 100Hz-20kHz
Distortion ≤ 1%
-40db
Microphonesensitivity
Playback time Music time 6 hours,
talk time 8 hours
Charging input power DC 5V
Charging time Approx3 hours
Unit INCH 6.3*2.4*1.6 INCH
YM-Z38
The screenshots above are typical of many
Bluetooth-ebabled devices in the market
today,andare used to assist in the
explanation of the pairing process. Your
Bluetooth-enabled devices's interface and
interaction with the Bluetooth Speaker may
differ slightlyfrom the illustrations slightly
above.
Bluetooth 3.0, high speed and low
power consumption.
Built in rechargeable lithium battery.
Built in microphone for hands free
phone calls.
Support TF card playback.
AUX in function for non-bluetooth devices.
LIKE IT? LOVE IT?
REVIEW IT.
www.youmoontech.com
1 Power on/off.
Play/Pause/Mode button
2
3 Next
4 Vol+
5 Phone button
6 PREV
7 Vol-
8
Aux jack
9 DC 5V charging port
TF card slot
10

Using the Bluetooth Speaker

Press and hold the
Play/Pause/Mode button
Qucik press
Press and hold
switch between Switch between Bluetooth, TF
card playback, and AUX mode.
Press button to skip to the next song.
Press button to skip to the previous song.next
song.
Press button to increase volume.
Press button to decrease the volume.
To answer a call, quick press the button.
To end a call, quick press the
Double quick press the
number called will be redialed.
Insert TF card into the TF card slot.
Press button to turn on the Bluetooth speaker.
Press Mode button
speaker to TF card playback mode.

Charging the Bluetooth speaker

To charge the Bluetooth speaker, connect
the supplied micro USB cable to the USB
charging port and the other end to your
computer or USB charging device. The
LED indicator will flash when charging.
When charging is completed, the LED
indicator will stop flashing and stay solid
green.
Make sure you charge your Bluetooth
speaker for at least 4 hours before using
it for the first time.
1 2 3 4
5 6 7
8
9
10
button for about 3 seconds.
button to play or pause music.
button for about 3 seconds to
button again.
button, the last
to switch the Bluetooth
