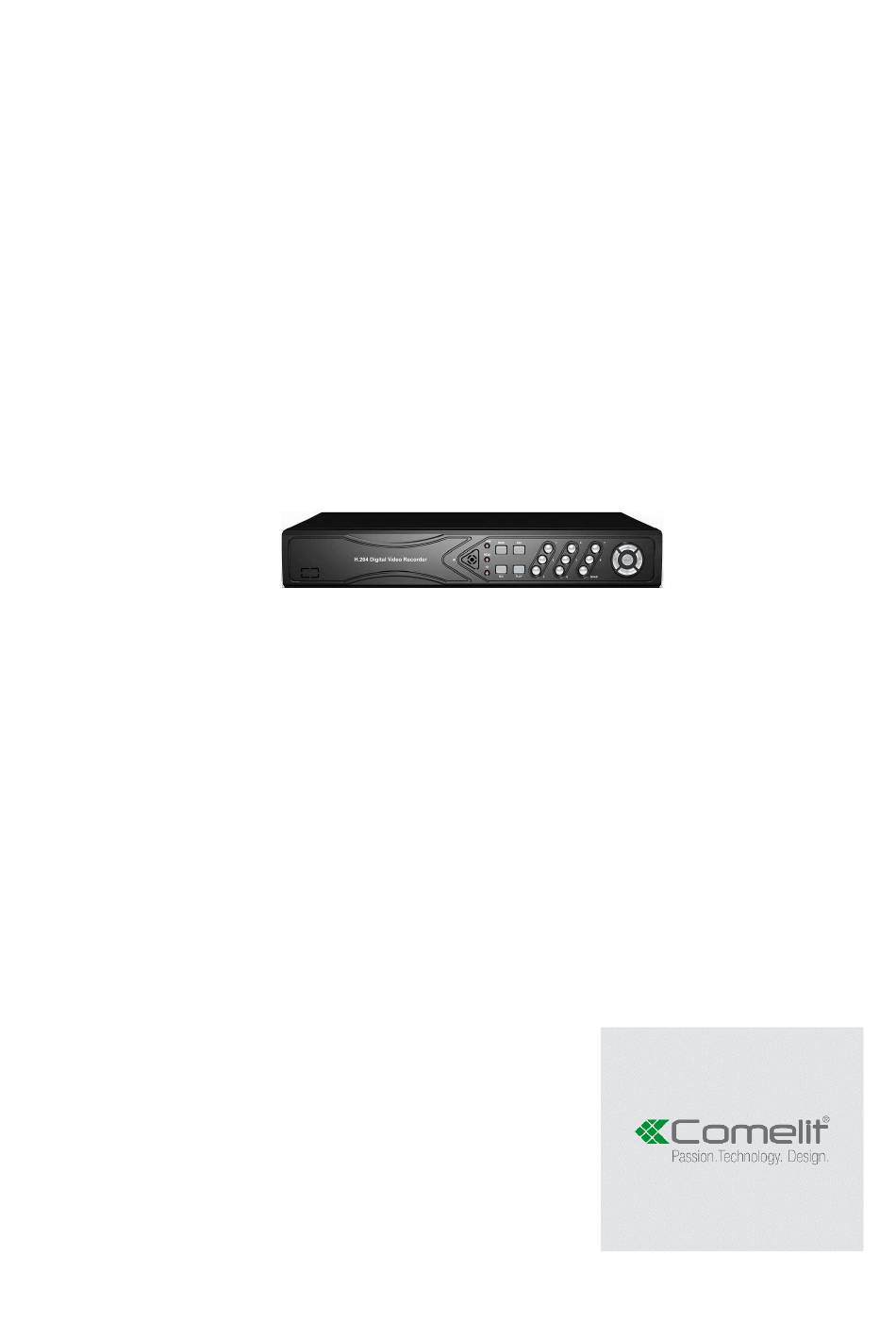

- Page 1 4-8 PoE INPUTS H264 STAND-ALONE NETWORK VIDEO RECORDER ART. IPNVR004BPOE-IPNVR008BPOE IPNVR004CPOE-IPNVR008CPOE Please read this manual thoroughly before use and keep it for future reference...
-
Page 2: Technical Parameters
Technical parameters Model IPNVR004BPOE-IPNVR004CPOE-IPNVR008BPOE-IPNVR008CPOE Operation Embedded Linux operation system Operation system Graphical user interface (GUI), mouse, front button, remote control Imagine compression H.264 Recording mode Manual, Scheduled, Event Video Search Time, Event, Channel, Log Backup Network, USB Video input RJ45... -
Page 3: Hdd Installation

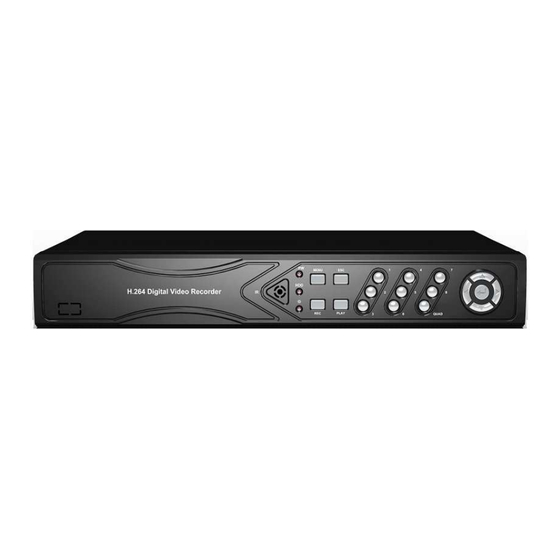

HDD Installation Make sure to install the HDD when You first use it. Front Panel Description 1. HDD led 9. PLAY: Playback key 2. State led, reserved 10. ESC: Exit key 3. 1 ~ 8: CH1 ~ CH8 Single-Screen keys 11. -
Page 4: Rear Panel Description
Rear Panel Description CH1-Ch4 - - CH8: 4 / 8 Poe Inputs (RJ45 ports) WAN: 10/100 Mbit/sec. standard Ethernet port POWER:PoE power supply connector DC12V: 12 VDC power supply connector VGA: VGA video output connector HDMI video output USB: 2 x USB connectors Operating System Description Turn ON / OFF Confirm that AC voltage matches with NVR .Ensure that the NVR power outlet connect with a good... -
Page 5: Menu Composition
Menu composition Menu component units as following: （1） Check box: two kinds of status available, "√" means enabled, "□" means disabled; direction key: 【↑】【↓】【←】【--->】; enter key【 】. Also, click the left mouse button to choose. For example: "channel" and "video mode" check box in the video research. （2）... -
Page 6: Video Playback
Video Playback In the shortcut menu, click "Video Playback" to enter in the interface. Video Search Channel：to choose the target channel by clicking the check box means non-selected. Record mode：to choose the recode mode by clicking the check box Search time：input the starting and finishing time into edit box Search：after setup the above search condition, click "search"... -
Page 7: Ptz Control
In the shortcut menu, click manual record or click 【REC】 to enter the setup the manual record interface. Manual record menu illustration Manual record menu include several parts: Channel：☑”means open；“□”means close. All on：start all the channel. All off：close all the channel. OK：confirm an exit Cancel：click cancel can exit the manual record interface and back to main menu. -
Page 8: System Setup
System setup The “system setup” menu include: General setup, Record setup, Network setup, Channel setup, System Admin. General setup Choose the "General setup" and turn into it's setup interface. Auto Logout: the present user will be logged off if there is no operation within 10 minutes, and it needs login again. - Page 9 Select “screen setup” in “general setup”. OSD Alpha：OSD menu transparency can be adjusted as needed. VGA Resolution: three choice (800x600, 1024x768, 1280x1024) Auto Switch: user can setup the time of auto switching for preview image, it switch in single screen or 4 channels screen.
- Page 10 If IP cameras are connected directly to NVR, there is no setup needed (PoE mode). If not (Switch mode), before connecting and set up IPC, please confirm that IPC is already connected to internet. Right click on the preview interface, pop-up shortcut interface, click “Video Manage”, enter interface. Search IPCs which connected to the same NVR network.
- Page 11 Preferred DNS：DNS IP address Web port：port number IE browser visit, default port is "80" DDNS: automatic analytical function of dynamic domain name, support Comelit DNS, etc. To use Comelit DNS see the last page of this manual. In the "network setup" menu, click " DDNS "...
- Page 12 Video detection Select ”video detection” in the “channel setup” menu Channel: the option to set the alarm channel selection box Detection：select detection type --motion, video loss Sensitivity： chose the trigger video detection sensitivity Alarm duration: after chose the trigger video detection, choose the time alarm. Area edit : setup motion detection area;...
- Page 13 Copy to: choose the object route in the right select box , click the button of “copy to”, then the informations of setting will be showed, which also can be applied in other object routes. Or use can choose copy to “all” to make all channel in same setting. After the setting, click the button of sure to exit with saving the setting , or click the botton of cancel to exit without saving.
- Page 14 User In system admin, click" User". Add user: input a new user name in the edit box and set up the operational authority. Choosing in the right check box, “☑” users can use it, “□” users cannot use it. Click the "password setup" to set the new password or it can be the default password.
-
Page 15: System Info
Factory setting In the " System admin", click "Factory setting", enter setting interface Select the items which need factory setting, click "OK" to save and exit or click "cancel" to exit without saving. Notes: after factory setting, all the settings will be the initial one, please use carefully. System info In the system admin, click "HDD info", enter interface. -
Page 16: System Logout
System version In the system admin, click "System version", enter interface Device name ,device model, H/W version, S/W version could be checked here. System log In the system admin, click "System log", enter interface Choose the log type which need to check from list box, and input the time period in the edit box, then click "search", the related log information will showed below, you can turn the page by click "previous"... - Page 17 ID (P2P) User Manual 1. Connect NVR with network, make sure network working fine 2. For remote view in computer, go to www.dvrskype.com www.e-seenet.com Do the following setup before you log in on computer Note: Internet Explorer setting. If use it for the first time and the software can't load, then need to make the following setting: Internet options Safety-Internet Custom options...
- Page 18 NOTE: to view images of this series of NVRs from smartphones (iOS or Android OS) please use the app "Comelit View S" which is freely downloadable from the relative stores (Apple Store and Play Store). The same app for smartphones has to be used for tablet devices.
