Summary of Contents for Audiophile Systems COA MOJO1000FX

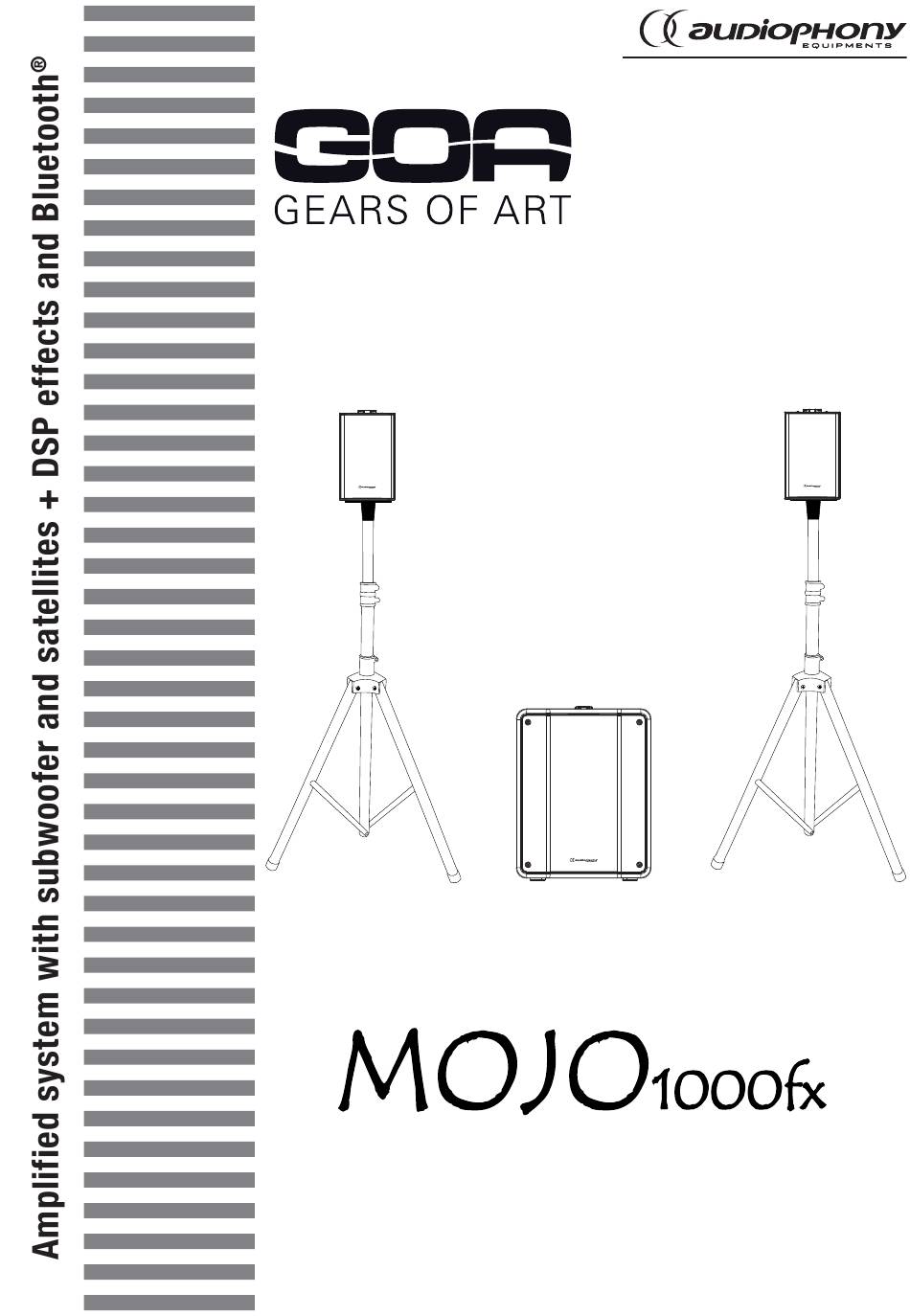

- Page 1 USER GUIDE 10528 - Jully 2016 Version 1.0...
-
Page 2: Important Safety Information
English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins- tructions could result in fire, electric shock, injury, or damage to WARNING : this product or other property. -
Page 3: Technical Specifications
English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 2 - Technical specifications SATELLITE Power 80W RMS - 160W max Frequency response 155Hz -22KHz Sensitivity(1W@1m) 93 dB Max. SPL (@1m) 120 dB Nominal impedance 8 Ohms Boomer 4.75''... - Page 4 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 3 - Presentation 3-1 Overview A - Command panel B - Satellites compartment C - Power supply and sattelites connectors zone D - Transport handle E - Male audio contact slot F - Satellites clamping knob G - Satellite...
- Page 5 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth A- Rear view 1 - Sattelite output for either a stereo left satellite or two mono satellites. CAUTION: only the MOJO1000fx satellites can be connected via this output.
- Page 6 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 4-Multi effects DSP LEDs This LEDs allow you to know which effect is selected by the N°11 selector. 5- Subwoofer sound level The subwoofer volume can be adjusted separately. Use this knob to adjust it as desired. By default, the system is balanced when this knob is in middle position.
- Page 7 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 3.3 - Satellites: Satellite of the COMPACT system: 1 - Female audio contact slot 2 - Jack 6.35 In 3 - Male audio contact slot 4 - M6 insert The satellites were designed to be operated with this subwoofer.
- Page 8 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 4.3 - Setting up the satellites above the subwoofer The MOJO1000fx satellites can be directly mounted above the subwoofer thanks to its contact slot. This slot guarantees the transmission of the audio signal between the two satellites and the subwoofer.
- Page 9 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 5 - Basical wiring 5.1 - Using the MOJO1000fx as 2.1 system: Entrée CH1 : Entrée CH3 : MICRO filaire ® périphérique Bluetooth ® Entrée CH2 : GUITARE The MOJO1000fx system can be used, for instance, for a guitar player-singer with soundtrack.
- Page 10 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 5.2 - Using the MOJO1000fx as a mono 1.1 system: Entrée CH1 : MICRO filaire Entrée CH3 : Ordinateur The MOJO1000fx system can be used, for instance, to give voice to a conference via a speaker and computer. To do so, proceed as follows: - The microphone will be connected to the CH1 combo input via XLR socket, the selector in MIC position.
- Page 11 English ® MOJO1000fx - Amplified system with subwoofer and satellites + DSP multi effects and Bluetooth 6 - Dimensions Page 11...
- Page 12 ® Because AUDIOPHONY takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
