Summary of Contents for MFJ Enterprises MFJ-8802

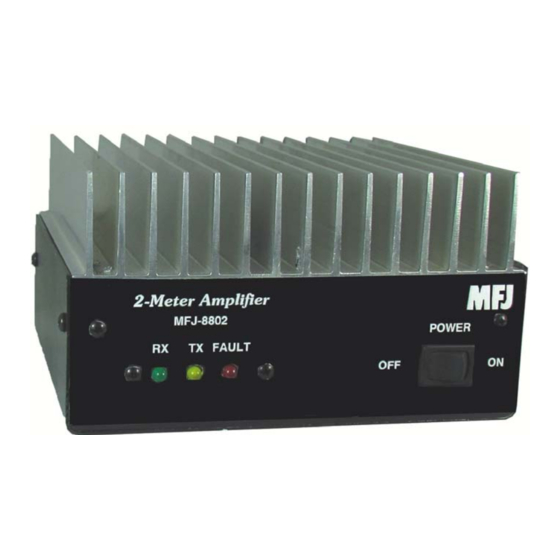

- Page 1 2-Meter Amplifier Model MFJ-8802 INSTRUCTION MANUAL CAUTION: Read All Instructions Before Operating Equipment MFJ ENTERPRISES, INC. 300 Industrial Park Road Starkville, MS 39759 USA Tel: 662-323-5869 Fax: 662-323-6551 COPYRIGHT 2017 MFJ ENTERPRISES, INC. VERSION 1A...
- Page 2 Customers using this manual should report errors omissions, recommendations for improvements, or other comments to MFJ Enterprises, 300 Industrial Park Road, Starkville, MS 39759. Phone: (662) 323-5869; FAX: (662) 323-6551. Business hours: M-F 8-4:30 CST.
- Page 3 2-Meter transverters. A simple input-attenuator may be added to accommodate 10-to-25 Watt radios. SWR load-fault circuitry protects output transistors from severely mismatched loads. By keeping circuitry simple, the MFJ-8802 is designed to deliver a potent transmit-signal boost at a truly affordable price.
- Page 4 Schematic Diagram: .001 .3 uF Bias < Balun .3 uF < Bias 3300 Hash Filter .001 35-A Power TX Bias + 13.8V 2.2K RX LED Crowbar Radio 2.2K TX LED SWR Det Antenna 2N7000 K2a/b 1N914 2N3906 Load Fault 2.2K 1N914 Sens .001...
- Page 5 Circuit Description: Balun T1 splits the phase of the input signal for push-pull operation. Tuned L- network (C2, L1, L2) matches the exciter's 50-Ohm input to the composite load presented by the gates of Q1 and Q2. VR1 provides a regulated bias source for Q1 and Q2 and trimpots R5, R9 set Idq individually.
- Page 6 You can also send questions by mail to MFJ Enterprises, Inc., 300 Industrial Park Road, Starkville, MS 39759; by Facsimile (FAX) to 662-323-6551; or by email to techinfo@mfjenterprises.com.
- Page 7 MFJ Enterprises, Inc. agrees to repair or replace at MFJ's option without charge to the original owner any defective product provided the product is returned postage prepaid to MFJ Enterprises, Inc. with a personal check, cashiers check, or money order for $10.00 covering postage and handling.
- Page 8 MFJ ENTERPRISES, INC. MFJ-8802 Manual 300 Industrial Park Road Version 1A Starkville, MS 39759 Printed In U.S.A.
