SOBELEC TUNISIE 58,AV 15 octobre 1960, belle vue el ouardia 1009 TUNIS TUNISIA
Mobile: +216 71 483 696 / 498211
Email: sobel@planet.tn
www.sobelec-tn.com

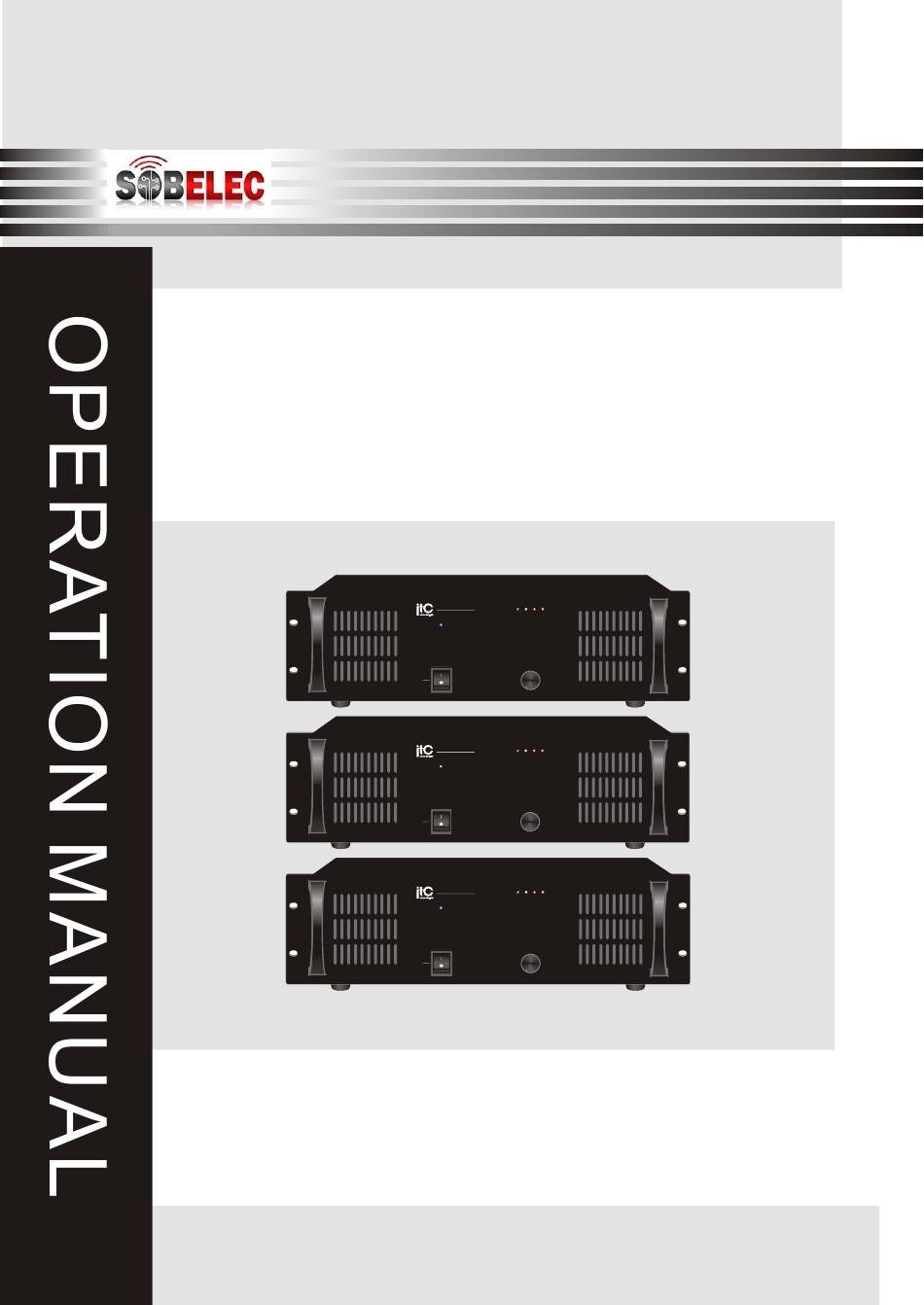

PUBLIC ADDRESS SYSTEM
350/500/650-WATT AMPLIFIER
T-6350
350-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
T-6500
500-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
T-6650
650-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
Fax: +216 71 498281/338973
contact@sobelec-tn.com
T-6350
T-6500
T-6650
Advertisement
Table of Contents
Related Manuals for Sobelec T-6350
Summary of Contents for Sobelec T-6350
- Page 1 TEMP POWER VOLUME T-6650 650-WATT AMPLIFIER SIGNAL CLIP PROT TEMP POWER VOLUME SOBELEC TUNISIE 58,AV 15 octobre 1960, belle vue el ouardia 1009 TUNIS TUNISIA Fax: +216 71 498281/338973 Mobile: +216 71 483 696 / 498211 contact@sobelec-tn.com Email: sobel@planet.tn www.sobelec-tn.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel .........................6 4.2 Rear Panel ........................7 5. CONNECTIONS 5.1 Speaker Connections ....................8 5.2 XLR Connections ......................8 6. APPLICATIONS ......................9 BLOCK DIAGRAM ....................10 8. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 SAFETY PRECAUTIONS WARNING: For the terminals marker with symbol of may be of sufficient magnitude to constitute a risk of electric shock. The external wiring connected to the terminals requires installation by an instructed person or the used of ready-made leads or cords. WARNING: The battery(battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
-
Page 5: General Description
2. GENERAL DESCRIPTION Heavy-duty public address power amplifiers deliver clean audio power from 350 to 650 watts RMS with less than 0.5% distortion. Rugged and overbuilt to provide years of reliable service they are equipped with torroridal transformers, extensive heat-sinking, forced fan cooling and protective circuits against short-circuit, clipping and over-temperature. -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 T-6350-6500-6650 FRONT PANEL SIGNAL CLIP PROT TEMP POWER VOLUME 1. POWER SWITCH On top of the opening Power, Press the end, power shut down 2. VOLUME Channel volume control 3. TEMP Temperature Indicator 4. PROT Protection indicator LED Prot lit when over heat,short circuit and overloading. -
Page 7: Rear Panel
NOMENCLATURE AND FUCTIONS 4.2 T-6350-6500-6650 REAR PANEL MADE IN CHINA INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- ~220V 60Hz T8AL 250V OUTPUTS MAX 720W COM 4-16 100V INPUTS LINK LIFT 8. AC POWER INPUT 9. COMMON SPEAKER OUTPUT Connectors for 4~16 ohms or 70V and 100V speaker 10. -
Page 8: Connections
5. CONNECTIONS 5.1 SPEAKER CONNECTIONS 100V 4~16 100V 4~16 100V 4~16 (T-6350) (T-6350) 28.6 (T-6500) (T-6500) (T-6650) (T-6650) 15.4 100V LINE 70V LINE 4-16 4~16 70V/ 5.2 XLR CONNECTIONS... -
Page 9: Applications
6. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 10: Block Diagram
7. BLOCK DIAGRAM... -
Page 11: Specifications
8. SPECIFICATIONS MODEL T-6350 T-6500 T-6650 RATED POWER OUTPUT 350W 500W 650W SPEAKER OUTPUTS 4~16 ,70V/100V INPUT SENSITIVITY 775mV/0dB FREQUENCY RESPONSE 50Hz~18KHz S/N RATIO Better than 105dB T.H.D Less than 1% at 1KHz, 1/3 rated power Power switch, volume control... -
Page 12: Dimensional Diagram
9. DIMENSIONAL DIAGRAM UNIT:mm SIGNAL CLIP PROT TEMP POWER VOLUME MADE IN CHINA INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- ~220V 60Hz T8AL 250V OUTPUTS MAX 720W COM 4-16 100V INPUTS LINK LIFT UNIT :mm SIGNAL CLIP PROT TEMP POWER VOLUME Over Over... - Page 13 PUBLIC ADDRESS SYSTEM PUBLIC ADDRESS SYSTEM SOBELEC TUNISIE 58,AV 15 octobre 1960, belle vue el ouardia 1009 TUNIS TUNISIA Fax: +216 71 498281/338973 Mobile: +216 71 483 696 / 498211 Email: sobel@planet.tn contact@sobelec-tn.com www.sobelec-tn.com...
