Alien Eko ALIEN358 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

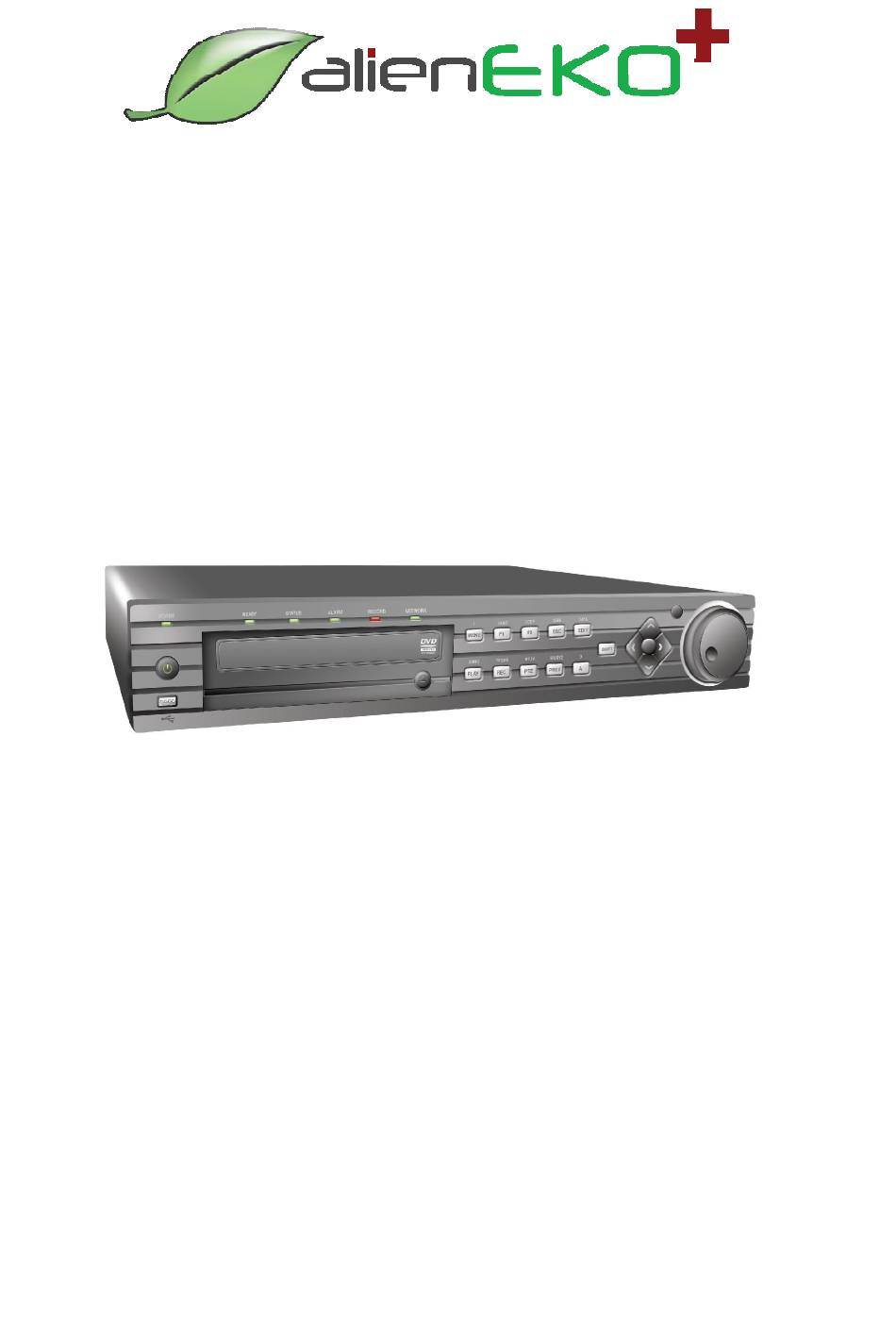

The Alien EKO+ Digital Video Recorder
Operations Manual
Models: ALIEN358 ALIEN366
Special Features:
All channels recording at D1 resolution-
Simultaneous VGA & Main Composite Outputs-
1FPS background recording switching to 25FPS
on motion detection-
Multi-Screen Playback on all channels-
Networking & Email facility
Version 2.0.4
Last Revised: 18/10/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALIEN358 and is the answer not in the manual?

Questions and answers

Related Manuals for Alien Eko ALIEN358

Summary of Contents for Alien Eko ALIEN358

  • Page 1 The Alien EKO+ Digital Video Recorder Operations Manual Models: ALIEN358 ALIEN366 Special Features: All channels recording at D1 resolution- Simultaneous VGA & Main Composite Outputs- 1FPS background recording switching to 25FPS on motion detection- Multi-Screen Playback on all channels- Networking & Email facility Version 2.0.4...

  • Page 2: Safety Warnings And Precautions

    Safety Warnings and Precautions Please pay attention to the following warnings and cautions: Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly. This device must be connected to an approved, enclosed power supply of the proper rated voltage and current.

  • Page 3: Preventive And Cautionary Tips

    Preventive and Cautionary Tips Before connecting and operating your DVR, please be advised of the following tips: Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. • Keep all liquids away from the DVR. •...

  • Page 4: Table Of Contents

    Contents Introduction Overview Product Features Product Application Diagram Operating Your DVR Using the Front Panel Controls ALIEN358 Rear Panel ALIEN366 Rear Panel IR Remote Control Using a USB Mouse 1.10 Using the Soft Keyboard 2. Getting Started Starting and Shutting Down Your DVR...
  • Page 5 6. Backup Exporting Files Export Video Clips Manage Backup Devices 7. Alarm Settings Motion Detection Alarm Sensor Alarm Settings Manual Alarm Triggering Video Loss Detection Video Tampering Detection Exception Settings Understanding Exception Triggers 8. Network Settings Configuring Network Settings NTP Server Settings Remote Alarm Host Settings Configuring DVR TCP Ports 9.
  • Page 6 13.2 1fps background recording switching to 25fps in CIF 13.3 Record Timings for ALIEN366 13.4 Record Timings for ALIEN358 13.5 Frame Rate Settings and TCP Connections for EKO+ Series 14. Frequently Asked Questions 15. Specifications All specifications are approximate. Aliendvr.com reserves the right to change any product specifications or features without notice.

  • Page 7: Introduction

    1. Introduction 1.1 Overview Developed on the basis of the latest technology, the Alien EKO+ range of Digital Video Recorder combines the latest in advanced H.264 video encoding and decoding technologies delivering high performance, reliability and longer recording times. The...

  • Page 8: Product Features

    1.2 Product Features Compression PAL/NTSC adaptive video inputs. H.264 video compression with high reliability and superior definition. G.711 audio compression standard. Independent video encoding parameters, including frame rate, resolution, bit rate, video quality, etc. Scheduled and event recording parameters configurable for per individual camera.
  • Page 9 Pause, play fast, play slow, skip forward, and skip backward when playback, locating in progress bar by dragging the mouse. Up to 8/16-channel playback depending on model. Backup Record files backed up via USB or SATA writer device (if installed). Select backup by file or by time.

  • Page 10: Product Application Diagram

    1.4 Operating Your DVR There are numerous ways to navigate and operate your DVR. You may use the Front Panel Controls, the included IR (Infrared) Remote, a Mouse or a Soft Keyboard. 1.5 Using the Front Panel Controls ALIEN EKO+ Front Panel...
  • Page 11 1. Power On/Off/LED: Press and hold the button to turn off the device. The indicator lights in green when DVR is powered up. 2. READY: the indicator lights in green when the device is running normally. 3. STATUS: the indicator lights when the compound key switches to numeric/letter input mode.
  • Page 12 17. 7PQRS/REC: (1) Enter numeral “7”; (2) Enter letters “PQRS”; (3) Manual record, for direct access to manual record interface; manually enable/disable record. 18. 8TUV/PTZ: (1) Enter numeral “8”; (2) Enter letters “TUV”; (3) Access PTZ control interface. 19. 9WXYZ/PREV: (1) Enter numeral “9”; (2) Enter letters “WXYZ”; (3) Multi- camera display in preview.

  • Page 13: Alien358 Rear Panel

    1.6 ALIEN358 Rear Panel Item Description MAIN VIDEO BNC connector for main video out VIDEO IN BNC connectors for 8 analogue video input AUDIO IN RCA connectors for 1 analogue audio input ALARM IN Connector for 4 alarm inputs ALARM OUT...

  • Page 14: Alien366 Rear Panel

    1.7 ALIEN366 Rear Panel Item Description MAIN VIDEO BNC connector for main video out VIDEO IN BNC connectors for 8 analogue video input AUDIO IN RCA connectors for 1 analogue audio input ALARM IN Connector for 4 alarm inputs ALARM OUT Connector for 1 alarm outputs POWER Switch for turn on/off the device...

  • Page 15: Ir Remote Control

    1.8 IR Remote Control Your DVR may also be controlled with the IR remote control, shown below. Batteries (2×AAA) must be installed before operation. IR Remote Control The keys on the remote control closely resemble the ones found on the front panel, including: POWER: Turn on/off DVR.

  • Page 16: Using A Usb Mouse

    15. RESERVED: Reserved. 16. F1: Same as 2ABC button on front panel. 17. PTZ CONTROL Buttons: Buttons to adjust the iris, focus and zoom of a PTZ camera. 18. F2 Button: The F2 button is used to cycle through tab pages. It can also be used to enter the Channel &OSD Position settings.

  • Page 17: Using The Soft Keyboard

    2. Right Button: • Single-Click: Shows pop-up menu. 3. Scroll-Wheel: • Scroll Up: In Preview mode, scrolling up will switch to the previous screen. In Menu mode, it will move the selection to the previous item. • Scroll Down: In Preview mode, scrolling down will switch to the next screen.

  • Page 18: Getting Started

    2. Getting Started Starting and Shutting Down Your DVR Correct startup and shutdown procedures are crucial for extending the life of your DVR. To start your DVR: 1. Please make sure the input voltage meets the requirements of the DVR. 2.

  • Page 19: Using The Setup Wizard

    2.3 Using the Setup Wizard Note: Please ensure the DVR has been installed with HDD before access to the Setup Wizard. By default, the Setup Wizard will start once the DVR has loaded, as shown in Figure 2. The Setup Wizard will guide you through some important settings of your DVR. Select Next if the DVR has been installed with HDD, or click Cancel to access Live View window if no HDD is installed.
  • Page 20 2. Navigate to the Admin Password text box. 3. Type the admin password into the Admin Password text box. By default, 12345 the password is change 4. To the admin password, check the New Admin Password checkbox. Type new password and confirm it in the given text boxes. 5.
  • Page 21 Figure 5. Record Settings 10. To access Record Settings interface, click the Enter button. See 13.6 Frame Rate Settings and TCP Connections For EKO+ Series. 11. Select the Schedule tab, shown in Figure 6. Figure 6. Schedule Settings 12. Click Edit button to enter a new recording schedule, shown in Figure 7. 13.

  • Page 22: Setting Time & Date

    14. Click the OK button. This will take you back to the Schedule tab. To copy the schedule to a different channel, select the channel or all under Copy To and click the Copy button. 15. Click Next button to access the Network Settings dialog box, shown in Figure 8.

  • Page 23: Live Preview

    3. Live Preview 3.1 Live Preview On-screen Display The Live Preview mode is automatically started after the DVR boots up. It is also at the very top of the menu hierarchy, thus hitting the ESC multiple times (depending on which menu you’re on) will bring you to the Live Preview mode. 3.2 Live Preview Icons Some icons are provided on screen in Live Preview mode to indicate different camera and monitor status.

  • Page 24: Mouse Operation In Live Preview

    • By Mouse: Select Next Screen in right-click menu. 4. Auto Sequence: • By Front Panel/Remote: Press Enter button. • By Mouse: Select Start Auto-switch in right-click menu. 5. Digital Zoom: • By Mouse: Select Digital Zoom in right-click menu. 3.4 Mouse Operation in Live Preview Some functions of the Live Preview can be quickly accessed by clicking the right- button of the mouse (shown in Figure 2).

  • Page 25: Configure Live Preview Display - Channel Zero Encoding

    Figure 3. Digital Zoom 3.6 Configure Live Preview Display Click Menu >Settings >Display to access the Live Preview display settings: Figure 4. Display Settings Configure the following settings for Live Preview Display: Video Output: Set the video output modes, including VGA and Main •...

  • Page 26: Set Camera Order

    allows a user to access the live view of the camera according to the configured CVBS video parameters. 3. When there is no VGA display connected to DVR, the VIDEO OUT will be used as the main video output, and menu operations are accessible; the VGA will be used as the spot video output which only allows user to access the live view of the camera according to the configured VGA video parameters.
  • Page 27 Operate the following steps to set camera order: 1. Enter the Display Settings menu (Menu > Settings > Display) and click Set in the Camera Order item. 2. Select the video output port and the display mode (1×1, 2×2, 3×3 and 4×4 modes selectable).

  • Page 28: Record Settings

    4. Record Settings There are multiple ways to setup your DVR for recording. They include setting up a recording schedule, triggering a recording by motion detection and/or a sensor alarm, and manually starting the recording. 4.1 Before Record Settings Before configuration, please make sure your DVR has been installed with an HDD and has completed its initialisation, otherwise, access Menu >...
  • Page 29 Figure 2. More Record Settings Pre-Record: Set the time in seconds to pre-record before the actual • recording begins. Post-Record: Set the time in seconds to post-record after the actual • recording has ended. Recording Expired Time: Set the expiration time in days for recorded •...

  • Page 30: Scheduling A Recording

    4.3 Scheduling a Recording The Schedule allows you to set up flexible recording schedules for daily or weekly recording. To set up a recording schedule: 1. Click Menu > Settings > Record to enter the Record Settings menu. 2. Select the Schedule tab to enter the Schedule dialogue box, shown below. Figure 4.

  • Page 31: Starting A Manual Recording

    4.4 Starting a Manual Recording A manual recording can be enabled at any time by means of the following configuration: Press the REC button on the front panel to access the Manual Record dialogue box, shown in Figure 5. Figure 5. Manual Record Menu Start manual recording by selecting ON or OFF for each camera.

  • Page 32: Set Hdd To Read-Only

    2. Search for desired recording by entering search parameters. Search parameters include Camera ID, Video/File Type, and Start/End Time. 3. Click the Search button. A list of recorded files (see Figure 7) matching the search parameters will be displayed. 4. Select the file you want to lock/unlock. 5.
  • Page 33 Select the General tab. Select the HDD to set to read-only. Click the Property button to enter the Property Settings dialogue box, shown in Figure 9. Figure 9. HDD Property Settings Menu 5. Set HDD Status to Read-only and then click OK to finish the setting. Note: 1.

  • Page 34: Video Playback

    5. Video Playback The Client application allows all users to play back recorded files for a specified period. Multi-camera simultaneous playback on all channels is supported. 5.1 Playback Interface Multiple toolbar and buttons are provided on the playback interface to control the video playback.

  • Page 35: Playback By Search

    5.2 Playback by Search To play back record files by video search: 1. Enter the Video Search menu by clicking Menu > Video Search. 2. Set the search parameters by selecting cameras to search, video/file type and the start/end time (as shown in Figure 3). Figure 3.

  • Page 36: Playback In Live Preview Mode

    5.3 Playback in Live Preview Mode The Client application also allows you to play back record files in Live Preview mode. To play back by channel in Live Preview mode: Using a Mouse: Right-click the mouse on desired channel and select the Playback option.

  • Page 37: Playback By System Log

    The video for simultaneous playback by multiple cameras selected from the camera list refers to the all-day recorded files of the selected day. 5.4 Playback by System Log To play back video from the System Log: 1. Click Menu > Maintenance > Log Search to enter the Log Search dialogue box, shown in Figure 6.
  • Page 38 3. Left click and drag the red box to the desired area for zooming. The zoomed image will be magnified by 4 times. An example is given in the following figure: Figure 7. Digital Zoom in Playback Mode...

  • Page 39: Backup

    6. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or a DVD writer. 6.1 Exporting Files To export record files: Click Menu > Video Export to enter the Export Video menu, shown in Figure 1.
  • Page 40 The size of the currently selected file/s is displayed in the lower-left corner of the window. Click the Next button to enter the Export menu, shown in Figure 3. Figure 3. Export Menu Select device to which the record file is exported from drop-down list (USB Flash Drive, USB HDD, DVD Writer).

  • Page 41: Export Video Clips

    Figure 5. Export Successful Screen Note: Video Player software will automatically be copied on to the device that the recorded files were exported on. 6.2 Export Video Clips You may also select video clips to export directly in Playback status. A maximum of 30 clips can be selected for each channel.

  • Page 42: Manage Backup Devices

    Using the Front Panel / Remote: Enter the Playback interface (See Video Playback). During playback, press the EDIT button to mark start of clip. Press the EDIT button again to mark end of clip. Repeat for additional clips. Press the ESC button to exit from the Playback interface. You’ll then be prompted to save the clips, as shown in Figure 6.

  • Page 43: Alarm Settings

    Alarm Settings 7.1 Motion Detection Alarm Operate the following steps to configure Motion Detection Recording: Enter Camera Setting: Click Menu > Settings > Camera to access the Camera Settings menu, as shown in Figure 1. Figure 1. Camera Management Interface Select the Advanced tab to enter the Advanced Camera Settings menu, shown in Figure 2.
  • Page 44 As shown in Figure 3, the Motion Detection area allows you to mask areas you want to configure motion detection. The maximum area can be set to be full screen. You can left click mouse, hold and drag it to mask the Motion Detection area.
  • Page 45 Figure 5. Triggered Camera Settings Select cameras to trigger for recording when motion is detected by checking the checkboxes under the desired cameras. Select the Schedule tab. Set the schedule you want motion detection to be enabled. Schedule can be set for all week or any day of the week with up to 8 time periods per day.

  • Page 46: Sensor Alarm Settings

    Figure7. Handle Settings Click OK to complete motion settings for the selected camera. You may now add a schedule to start recording when motion is detected (See Scheduling a Recording). 7.2 Sensor Alarm Settings Recordings can also be triggered from an external relay alarm device. To set up sensor alarms: 1.
  • Page 47 Figure 9. Alarm Management Settings 3. Set the alarm input type to be Normally Opened (N.O) or Normally Closed (N.C). 4. Check the checkbox next to Setting and click the Handle button to enter the Alarm Input Handle menu. 5. Select the Triggered Camera tab. 6.
  • Page 48 Alarm outputs may also be configured in the Alarm Management menu. To set up Alarm Output: Select the Alarm Output tab. This will bring up the Alarm Output interface, shown in Figure 11. Figure 11. Alarm Output Interface Select the output you would like to configure and click the Set button. This will bring up the settings page for the selected channel (Figure 12).

  • Page 49: Manual Alarm Triggering

    7.3 Manual Alarm Triggering You may also trigger alarm outputs manually through the Manual Alarm menu. To trigger alarm outputs manually: Click Menu > Manual Alarm to enter the Manual Alarm menu (Fig. 13). Figure 13. Manual Alarm Menu Configure the following settings in the Manual Alarm menu: •...
  • Page 50 Select the Advanced tab. Select the camera to be configured with video loss detection. Check the Video Loss Detection checkbox to enable this feature, as shown in Figure 15. Figure 15. Camera Settings Menu Click the Handle button to enter the Exception Handle menu, shown in Figure 16.

  • Page 51: Video Tampering Detection

    Figure 17. Exception Handle Menu Click OK to finish the settings. Repeat above steps to configure settings for other channels. 7.5 Video Tampering Detection The video tampering can also be detected and set to trigger an action on your DVR. Note: The video tampering detection area is in full-screen mode by default and cannot be configured.
  • Page 52 Figure 17. Camera Settings Menu Click the Handle button to enter the Exception Handle menu, shown in Figure19. Select the Schedule tab. Set the schedule you want video tampering detection to be enabled. Schedule can be set for all week or any day of the week with up to 8 time periods per day.

  • Page 53: Exception Settings

    Click OK to finish the settings. Repeat above steps to configure settings for other channels. 7.6 Exception Settings The exception setting allows the DVR to alert you when irregular events occur. These events include: HDD Full: All installed HDD are full. •...
  • Page 54 • Pop-up Image on Monitor: When an alarm is triggered, the local monitor (VGA or BNC monitor) will display an image in Live Preview mode. This alarm can be configured under the Popup Alarm Image handle method. For alarms that are triggered simultaneously, images will be displayed one at a time every 10 seconds (default dwell time).

  • Page 55: Network Settings

    8. Network Settings Network settings must be configured if DVR is used for monitoring over network. 8.1 Configuring Network Settings To configure general network settings: Click Menu > Settings > Network to enter the Network Settings menu, shown in Figure 1. Figure 1.

  • Page 56: Ntp Server Settings

    If you want to configure your own settings, enter the settings for: • IP Address: IP address you would like to use for your DVR. • Subnet Mask: Subnet Mask of network. • Default Gateway: IP address of your Gateway. Typically the IP address of your router.

  • Page 57: Remote Alarm Host Settings

    Note: Time synchronisation interval has a range of 0-10080 min, normally 7200 min. If the DVR is used on a public network, you should use an NTP server that has a time synchronisation function, such as the server at the National Time Center (IP Address: 210.72.145.44).

  • Page 58: Configuring Dvr Tcp Ports

    8.4 Configuring DVR TCP Ports If you would like to change the DVR ports from the default settings, you can do so in the Network Settings menu. The default server port is 8000 while the default HTTP port is 80. To change the default ports: Click Menu >...

  • Page 59: Ptz Control

    9. PTZ Control 9.1 Navigate PTZ Menu PTZ menus can be navigated through with either the mouse or the front panel/remote. For quick access to certain PTZ settings, right clicking with the mouse in a display while in PTZ control mode will enter the PTZ settings menu. This menu is shown in Figure 1.

  • Page 60: Setting Ptz Presets, Patrols & Patterns

    To configure PTZ settings in DVR: Click Menu > Settings > PTZ to enter the PTZ Settings menu, shown in Figure 2. Figure 2. PTZ Settings Menu Select channel where PTZ camera is installed next to Camera label. Configure the settings of baud rate, data bit*, stop bit*, parity*, flow control*, PTZ protocol and address.

  • Page 61: Customising Presets

    The controls on the PTZ panel include: Directional Pad/Auto-scan Buttons: Controls the movements and directions of the PTZ. The center button is also used to start auto-scan of PTZ. Zoom: Used to zoom in and out with the PTZ. Focus: Used to adjust the focus of the PTZ. Iris: Used to open up or close the iris of the PTZ.

  • Page 62: Customising Patrols

    9.5 Customising Patrols Patrols can be programmed to move the PTZ to different key points and make it stay there for a defined duration before moving on to the next point. The key points are defined by presets which can be set by following the steps above in Customise Presets.

  • Page 63: Customise Patterns

    4. Click OK to return to Patrol Management menu and repeat steps 2-3 to configure other key points. 5. After all key points have been configured, click the defined key point No. and then click Add button to complete the settings. 6.
  • Page 64 Select a Pattern Number. To record a new pattern, select the Run Record button to start recording of the movements of the PTZ. Use the PTZ control panel to move the PTZ. The PTZ movements will be recorded until the Stop Record button is clicked.

  • Page 65: Camera Management

    10. Camera Management 10.1 OSD Settings On Screen Display (OSD) settings can be configured in the Camera Management menu. The OSD is shown in each display during Live Preview mode and includes the time and date as well as the camera name. To configure OSD settings: Click Menu >...

  • Page 66: Privacy Mask Settings

    Figure 3. Display Settings 10.3 Privacy Mask Settings You may setup privacy mask to mask off sensitive or private areas in the field of view of a camera. To setup privacy mask: Click Menu > Settings > Camera to enter the Camera Settings menu. Click the Advanced tab to enter the Advanced Camera Settings menu, as shown in Figure 1.
  • Page 67 Figure2. Setting Mask Area Select Exit to save settings and exit the Mask Area Settings interface.

  • Page 68: Hdd Management

    11. HDD Management 11.1 Initialising HDDs A newly installed hard disk drive (HDD) must be first initialised before it can be used with your DVR. Initialising the HDD will erase all data on it. To initialise a HDD: Click Menu > HDD to enter the HDD Management menu, shown in Figure 1.

  • Page 69: Set Hdd Status

    Figure 2. HDD Group Settings Menu Select OK to save settings and exit the Group Settings menu. Note: By default all HDDs belong to group 1. 11.3 Set HDD Status You may change the behavior of your HDD by changing its status. The status of a HDD can be set to read-only or read/write (R/W).

  • Page 70: Checking Hdd Status

    Set HDD Status to Read-Only. Select OK to save settings and exit the current menu. Note: 1. Once set to read-only, the HDD cannot be written to until it is set back to read/write (R/W). 2. If the DVR is installed with one HDD only, if property is set to read-only, the recording of the device will stop.
  • Page 71 Set Major Type to Information. 5. Set Minor Type to HDD SMART. 6. Enter Start Time and End Time. 7. Click the Search button to begin log search. A list of results, similar to that of Figure 5, will be returned. Figure 5.

  • Page 72: Configure Hdd Alarms

    Figure 7. HDD SMART Menu 11.6 Configure HDD Alarms HDD alarms can be set to trigger when an HDD is uninitialised or in an abnormal state. To set HDD alarms: Click Menu > Settings > Exception to enter Exception menu, shown in Figure 8.

  • Page 73: Dvr Management

    DVR Management 12.1 Configuring General Settings General settings such as the system language can be configured in the General Settings menu of your DVR. To configure general settings: Click Menu > Settings > General to enter the General Settings menu, shown in Figure 1.

  • Page 74: Configuring Advanced Settings

    12.2 Configuring Advanced Settings To configure more advanced settings: Click Menu > Settings > General to enter the General Settings menu, shown in Figure 1. Click the More Settings tab to enter the More Settings menu, shown in Figure 2. Figure 2.

  • Page 75: Managing User Accounts

    12.4 Managing User Accounts By default settings, your DVR is configured with the user name of admin and the password of 12345. The Administrator has the authority to add, delete or configure the user parameters. 12.4.1 Add a New User To add a new user: Click Menu >...
  • Page 76 Figure 6. Permission Settings Menu Configure permission for local settings under Local Permission tab. The local settings include: Local Log Search: Search and view logs of DVR. Local Configuration: Configure and restore parameters to factory defaults. Introduce settings to or export settings from DVR. Local Advanced Operation: HDD management (including the initialisation and changing the properties of a disk).
  • Page 77 (initialising and setting properties for HDDs). Ability to remote update system firmware and stop of the relay output Remote Shutdown/Reboot: Remotely shutdown or reboot the DVR. Click on the Channel Permission tab to configure channel permission, as shown in Figure 8. The channel settings include: Figure 8.

  • Page 78: Deleting A User

    12.4.2 Deleting a User To delete a user from the DVR: Click Menu > Settings > User to enter the User Settings menu. Select user to delete. Click the Delete button to delete user. Click the OK button to exit menu. Note: No deletion is allowed for the Administrator.

  • Page 79: Importing & Exporting Configuration

    12.5 Importing & Exporting Configuration Configuration information from your DVR can be exported to a USB device and imported into another DVR. This will allow you to efficiently setup the same configuration on numerous DVRs. To import or export DVR configuration: Click Menu >...
  • Page 80 Figure 11. Firmware Update Menu Select the Local Upgrade tab. Select the firmware on the USB device. Select Upgrade to begin the update process. After the system firmware has been updated, reboot the DVR. To update via a FTP server: Only for engineer/workshop users only as needs third party TFTP software Note: Do not attempt to change your DVR’s firmware unless instructed to do by your supplier.

  • Page 81: Restore Default Settings

    12.7 Restore Default Settings To restore default factory settings to your DVR: Click Menu > Maintenance > Default to enter the Default Settings menu, shown in Figure 13. Figure 13. Default Settings Menu Select OK to restore factory defaults. Note: Network information such as IP address, subnet mask and gateway will not be restored.

  • Page 82: View System Log

    Select OK to exit to the previous screen. 12.9 View System Log Many events of your DVR are logged into the system log. To access the system logs and search for these events: Click Menu > Maintenance > Log Search to enter the Log Search menu, shown in Figure 15.
  • Page 83 click the Export button to enter the Log Search Export menu, shown below in Figure 17. Click the Export button to export log onto USB device. The exported file will be named according to the time it was exported (e.g., 20100911143958logBack.txt). Figure 17.

  • Page 84: Appendix

    Appendix 13.1 Glossary Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the DVR, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF at 6fps.

  • Page 85: 1Fps Background Recording Switching To 25Fps In Cif

    13.2 1fps background recording switching to 25fps in CIF This DVR has a special feature that allows the unit to be set for recording at a low frame rate but when motion is detected to revert to 25fps recording. 1. Enter System Settings. 2.
  • Page 86 10. Select Advanced tab 11. Tick Motion Detection Box 12. Click on Area Settings 13. Drag detection box to cover detection area. 14. If you enter the Handle option you can tick the Pop-up image on Monitor to display a single screen display of the triggered camera.

  • Page 87: Record Timings For Alien366

    13.3 Record Timings for ALIEN366 CIF mode Frame Rate 320Gb 640Gb 750Gb 1.0Tb 1.5Tb 2.0Tb 3dys 7hr 6dy 14hr 7dy 17hr 10dy 7hr 15dy 11hr 20dy 14hr 6dys 14hr 13dy 4hr 15dy 11hr 20dy 14hr 30dy 22hr 41dy 5hr 13dy 4hr 26dy 9hr 30dy 22hr 41dy 5hr...

  • Page 88: Record Timings For Alien358

    13.4 Record Timings for ALIEN358 CIF mode Frame Rate 320Gb 640Gb 750Gb 1.0Tb 1.5Tb 2.0Tb 6dy 14hr 13dy 4hr 15dy 11hr 20dy 14hr 30dy 22hr 41dy 5hr 13dy 4hr 26dy 9hr 30dy 22hr 41dy 5hr 61dy 20hr 82dy 10hr 26dy 9hr...

  • Page 89: Frame Rate Settings And Tcp Connections For Eko+ Series

    13.5 Frame Rate Settings and TCP Connections for EKO+ Series HIGHEST SETTINGS ALIEN358 ALIEN366 MAINSTREAM CIF 25FPS 25FPS MAINSTREAM 2CIF 25FPS 25FPS MAINSTREAM 4CIF 25FPS 25FPS 6FPS 6FPS SUBSTREAM CIF 25FPS 25FPS SUBSTREAM QCIF SUBSTREAM MAX FRAMES 25FPS 25FPS TOTAL TCP CONNECTIONS...

  • Page 90: Frequently Asked Questions

    Frequently Asked Questions • Why does my DVR make a beeping sound after booting? There are a few reasons for the warning beep your DVR makes after booting. 1. There is no HDD present in the DVR. 2. The HDD has not been initialised. 3.

  • Page 91: Specifications

    15. Specifications Model ALIEN358 Video compression H.264 Analogue Video 8-ch, BNC connector (1.0Vp-p, 75 ); PAL/NTSC adaptive input Audio compression G.711 Audio input 4-ch, RCA connector (2Vp-p, 1k ) VGA output 1-ch, resolution: 1280 x 1024 / 1024×768 1-ch, BNC connector (1.0Vp-p, 75 );...
  • Page 92 ALIEN366 Model Video compression H.264 Analogue Video input 16-ch, BNC connector (1.0Vp-p, 75 ); PAL/NTSC adaptive Audio compression G.711 Audio input 4-ch, RCA connector (2Vp-p, 1k ) Video/Audio VGA output 1-ch, resolution: 1280 x 1024 / 1024×768 input 1-ch, BNC connector (1.0Vp-p, 75 ); CVBS output Resolution: PAL: 704×576, NTSC:704×480 Audio output...
