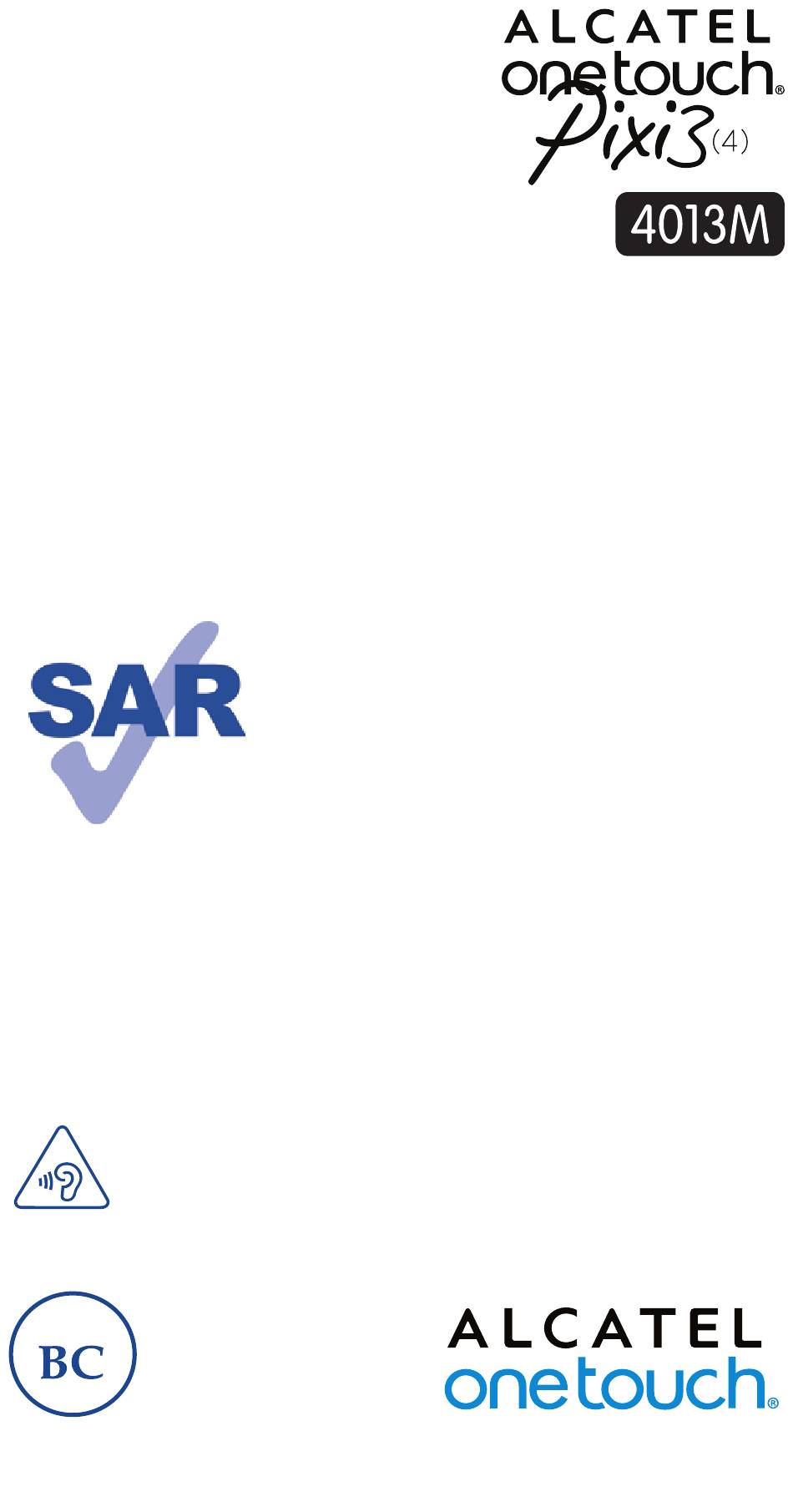

Quick Start Guide
For more information about how to use the phone, please go
to www.alcatelonetouch.com to download the complete user
manual. From the website you can also consult the FAQ, upgrade
software, etc.
www.sar-tick.com
PROTECT YOUR HEARING
To prevent possible hearing damage, do not listen at high
volume levels for long periods. Exercise caution when
holding your device near your ear while the loudspeaker
is in use.
English - CJB2875ALAAA
This
product
national SAR limits of 1.6 W/kg. The
specific maximum SAR values can be
found in the RADIOWAVES section
of this user guide.
When carrying the product or using
it while worn on your body, either
use an approved accessory such as
a holster or otherwise maintain a
distance of 10 mm from the body to
ensure compliance with RF exposure
requirements. Note that the product
may be transmitting even if you are
not making a phone call.
1
meets
applicable
Advertisement
Table of Contents
Related Manuals for Alcatel 4013M
Summary of Contents for Alcatel 4013M
- Page 1 Quick Start Guide For more information about how to use the phone, please go to www.alcatelonetouch.com to download the complete user manual. From the website you can also consult the FAQ, upgrade software, etc. This product meets applicable national SAR limits of 1.6 W/kg. The specific maximum SAR values can be found in the RADIOWAVES section of this user guide.
-
Page 2: Keys And Connectors
Your mobile ����������������� 1�1 Keys and connectors Headset connector Front Camera Touch screen Back key Menu key Home key Micro-USB connector... - Page 3 Camera Flash/Torch Power key Volume up Volume down Menu key • Option menu. Touch to access Manage Home- screen, Add widgets, Manage applications, Wallpaper and Settings. Recent apps. Touch and hold to open a list of • thumbnail images of apps you've worked with recently. Touch it to open an app.
- Page 4 Power key • Press: Lock the screen/Light up the screen. • Press and hold: Power on or generate a pop up menu selecting from Power off/Restart/Airplane mode or icons of Ringer mode. • Press to mute the ringtone when there’s an incoming call.
-
Page 5: 1�2 Getting Started
1�2 Getting started 1�2�1 Set-up Removing or installing the back cover Inserting or removing the SIM card You must insert your SIM card to make phone calls. Please power off your phone before inserting or removing the SIM card. Place the SIM card with the chip facing downwards and slide it into its housing. - Page 6 Installing or removing the microSD card To install, please open microSD card lock first, and then place the external microSD card into the slot with the gold contact facing down. To remove the external microSD card, please open microSD card lock and take it out from the slot. Charging the battery Connect battery charger to your phone and plug into the socket.
-
Page 7: Power On Your Phone
1�2�2 Power on your phone Hold down the Power key until the phone powers on. It will take a few seconds before the screen lights up. Set up your phone for the first time The first time you power on the phone, you should set the following options: language, input method, Google account, etc. - Page 8 1�3�1 Using the touchscreen Touch To access an application, touch it with your finger. Touch and Hold Touch and hold the home screen to access the available options for setting the home screens. Drag Place your finger on any item to drag it to another location. Slide/Swipe Slide the screen to scroll up and down the applications, images, web pages…...
- Page 9 Status icons GPRS connected Roaming GPRS in use No SIM card inserted EDGE connected Vibrate mode EDGE in use Ringer is silenced Phone microphone is 3G connected muted 3G in use Battery is very low HSPA (3G+) connected Battery is low Battery is partially HSPA (3G+) in use drained...
- Page 10 Notification icons New text or Missed call multimedia message Problem with SMS or Call on hold MMS delivery New Hangouts message Call forwarding is on New voicemail Uploading data Upcoming event Downloading data Data is synchronizing Download finished Screenshot error Select input method An open Wi-Fi USB tethering is on...
- Page 11 Notification panel Touch and drag down the Status bar to open the notification panel. Touch and drag up to close it. From the Notification panel, you can open items and other reminders indicated by notification icons or view wireless service information. Touch to access Quick setting bar.
- Page 12 1�3�5 Personalize your Home screen Touch the application tab , touch and hold an application to activate Move mode, and drag the item to any Home screen as you prefer. Reposition Touch and hold the item to be repositioned to activate Move mode, drag the item to the desired position and then release.
-
Page 13: 1�4 Applications And Widgets
1�3�7 Volume adjustment You can set ringer, media and phone ringtone volume to your preference by pressing Volume up/down key or touching Settings\Sound. 1�4 Applications and widgets The Applications (apps) list contains all pre-embedded and newly installed apps. To access the list, touch from the Home screen. - Page 14 2�1�1 Android keyboard Touch to enter text or numbers. Touch to switch between "abc/ Abc" mode; Touch & hold to switch between "abc/ABC" mode. Touch to enter symbols/ emoticons. Touch & hold to show input options; when Wi-Fi or data connection is on, touch to enter voice input.
-
Page 15: 2�2 Text Editing
2�2 Text editing You can edit the text you have entered. • Touch and hold or double-tap within the text you would like to edit. • Drag the tap to change the highlighted selection. • The following options will appear: Select all , Cut , Copy and Paste... -
Page 16: 3�2 Answering Or Rejecting A Call
3�2 Answering or rejecting a call When you receive a call, touch • Slide rightward to answer; • Slide leftward to reject; • Slide upward to reject the call by sending a preset message. To mute incoming calls, press the Volume up/down key. 3�3 Consulting your call memory You can access your call memory by touching... - Page 17 People ��������������������� You can view and create contacts on your phone and synchronize these with your Gmail contacts or other applications on the web or on your phone. 4�1 Adding a contact Touch Application tab on the Home screen, select People app, then touch the icon in the contact list to create a new contact.
-
Page 18: 5�1 Write Message
Touch a contact you want to share, touch and Share from the contact details screen, then select the application to perform this action. 4�3 Synchronizing contacts in multiple accounts Contacts, data or other information can be synchronized from multiple accounts, depending on the applications installed on your phone. - Page 19 Sending a text message Enter the mobile phone number of the recipient on Type person's name or number bar or touch to add recipients, touch Type text message bar to enter the text of the message. When finished, touch to send the text message. An SMS of more than 160 characters will be charged as several SMS.
-
Page 20: 7�1 Connecting To The Internet
To create and send emails • Touch the icon from Inbox screen. • Enter recipient(s) email address(es) in To field. • If necessary, touch and touch Add Cc/Bcc to add a copy or a blind carbon copy to the message. •... -
Page 21: Connecting To A Computer
To turn Wi-Fi on and connect to a wireless network • Touch on Quick setting bar to get to Settings. • Touch the switch beside Wi-Fi to turn on\off Wi-Fi. • Touch Wi-Fi, detailed information of all detected Wi-Fi networks is displayed in the Wi-Fi networks section. - Page 22 To disconnect (from mass storage): • Unmount the microSD card on your computer. Open the Notification panel and touch Turn off USB storage. • For Windows XP or lower operating systems, you should download and install Windows Media Player 11 on your computer.
-
Page 23: Find My Location Using Gps Satellites
Find my location using GPS satellites To activate your phone’s global positioning system (GPS) satellite receiver: • Touch on Quick setting bar to get to Settings. • Touch Location. • Touch the switch beside Location to turn on. Find your location by opening Maps: Use your phone’s GPS satellite receiver to pinpoint your location within an accuracy as close as several meters ("street level"). -
Page 24: Factory Data Reset
Once activated, a wide variety of settings and data are backed up, including your Wi-Fi passwords, bookmarks, a list of the applications you’ve installed, the words you’ve added to the dictionary used by the onscreen keyboard, and most of the settings configured within the Settings application. -
Page 25: 12�1 Smart Suite
• Exchange messages or emails with friends. • Track your location, view traffic situations, search for locations and get navigation information to your destination. • Download more applications from Google Play Store and more. For more information about these applications, please check the online user manual at: www.alcatelonetouch.com. - Page 26 12�2�1 Mobile Upgrade Download Mobile Upgrade from ALCATEL ONETOUCH website (www.alcatelonetouch.com) and install it on your PC. Launch the tool and update your phone by following the step by step instructions (refer to the User Guide provided together with the tool).
- Page 27 12�2�2 FOTA Upgrade Using FOTA Upgrade tool you can update your phone's software. To access System Updates, please open notification panel and touch and then , then press About phone\System updates. Or you can directly touch and access Settings\About phone\System updates. Touch Check for updates, and the phone will search for the latest software.
- Page 28 Safety and use ��������������������� We recommend that you read this chapter carefully before using your mobile phone. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. •...
- Page 29 Switch the mobile phone off when you are near gas or flammable liquids. Strictly obey all signs and instructions posted in a fuel depot, gas station, or chemical plant, or in any potentially explosive atmosphere. When the mobile phone is switched on, it should be kept at least 15 cm from any medical device such as a pacemaker, a hearing aid or insulin pump.
- Page 30 Your mobile phone should not be disposed of in a municipal waste. Please check local regulations for disposal of electronic products. Remember to make back-up copies or keep a written record of all important information stored in your mobile phone. Some people may suffer epileptic seizures or blackouts when exposed to flashing lights, or when playing video games.
- Page 31 • PRIVACY: Please note that you must respect the laws and regulations in force in your jurisdiction or other jurisdiction(s) where you will use your mobile phone regarding taking photographs and recording sounds with your mobile phone. Pursuant to such laws and regulations, it may be strictly forbidden to take photographs and/or to record the voices of other people or any of their personal attributes, and reproduce or distribute them, as this may be considered to be an...
- Page 32 In non European Union jurisdictions: Items of equipment with this symbol are not be thrown into ordinary bins if your jurisdiction or your region has suitable recycling and collection facilities; instead they are to be taken to collection points for them to be recycled. In the United States you may learn more about CTIA’s Recycling Program at http://www.gowirelessgogreen.org/ CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED...
- Page 33 Although the SAR is determined at the highest certified power level, the actual SAR level of the mobile phone while operating can be well below the maximum value. This is because the mobile phone is designed to operate at multiple power levels so as to use only the power required to reach the network.
- Page 34 - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 35 TCL Communication Ltd. You may download the source codes from http://sourceforge.net/ projects/alcatel/files/. The provision of the source code is free of charge from internet. 4013M FCC ID: 2ACCJH007...
- Page 36 General information ������� • Website: www.alcatelonetouch.com • Facebook: http://www.facebook.com/alcatelonetouchusa • Twitter: http://www.twitter.com/alcatel1touch Hot Line Number: In the United States, call 877-702-3444 for • technical support. On our Internet site, you will find our FAQ (Frequently Asked Questions) section. You can also contact us by e-mail to ask any questions you may have.
- Page 37 TCL Communication Ltd� Warranty ���������������������������� TCL Communication Ltd. warrants to the original retail purchaser of this wireless device that should this product or part thereof during normal consumer usage and condition be proven to be defective in material or workmanship that results in product failure within the first twelve (12) months from the date of purchase as shown on your original sales receipt from an authorized sales agent.
- Page 38 How to obtain Hardware Service within the terms of this warranty: Create a user profile (alcatel.finetw.com) and then create an RMA for the defective device. Ship the device with a copy of the original proof of purchase (e.g. original copy of the dated bill of sale, invoice) with the owner’s return address (No PO Boxes accepted), wireless...
- Page 39 Troubleshooting ������������������ Before contacting the service centre, you are advised to follow the instructions below: • You are advised to fully charge ( ) the battery for optimal operation. • Avoid storing large amounts of data in your phone as this may affect its performance.
- Page 40 My phone cannot charge properly • Make sure you are using an ALCATEL ONETOUCH battery and the charger from the box. • Make sure your battery is inserted properly and clean the battery contact if it’s dirty. It must be inserted before plugging in the charger.
- Page 41 • Check with your operator to make sure that your subscription includes this service. • Make sure this feature does not require an ALCATEL ONETOUCH accessory. When I select a number from my contacts, the number cannot be dialled •...
- Page 42 • Try later if the network is busy. I am unable to send and receive MMS • Check your phone memory availability as it might be full. • Contact your network operator to check service availability and check MMS parameters. •...
- Page 43 The phone will become warm following prolonged calls, game playing, internet surfing or running other complex applications� • This heating is a normal consequence of the CPU handling excessive data. Ending above actions will make your phone return to normal temperatures.
- Page 44 ALCATEL is a trademark of Alcatel-Lucent and is used under license by TCL Communication Ltd. © Copyright 2015 TCL Communication Ltd All rights reserved TCL Communication Ltd reserves the right to alter material or technical specification without prior notice. All "Signature" ringtones embedded in this phone have been...
