Summary of Contents for Acer K11

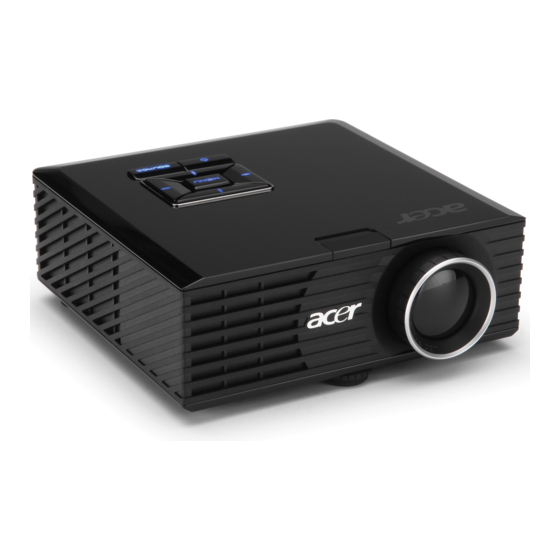

- Page 1 Acer Projector Multi-media User's Guide...
-
Page 2: Table Of Contents
Introduction Multimedia Features Getting Started Connecting multi-media device to the projector Control Panel and Remote Control Onscreen Display (OSD) Menus Presentation to Go Setting Photo Setting Music Setting Video Setting Appendices Troubleshooting Problems and Solution Multi-media format supported 1. Photo Format 2. -
Page 3: Introduction
Introduction The Acer multimedia support offers easier projection without PC and player connected. Through SD card reader and USB type A slot, you can easily access various photo, video and music media formats (See format supported table). The stylish user interface gives you best experience while playing media files. -
Page 4: Getting Started
Getting Started Connecting multi-media device to the projector Icon Component SD Card reader USB connector Note: USB drive does not support power consumption over 500mA. Once you find OSD pop up "Drive USB failed, please have external power for USB device". SD CARD Description Connects to SD Card. -
Page 5: Control Panel And Remote Control
Control Panel and Remote Control Icon Component Description Back or stop function in multimedia controls. RESYNC Enter or play under certain control conditions. SOURCE Pre./Rewind Go to previous index or page in file list view. Next/Fast forward Go to next index or page in file list view. Enter/Play/Pause Confirm your selection of items or play/pause media file. - Page 6 Enter or play function under certain control e key conditions. Note: "(#)" only for P3151/3251 series. "(*)" only for K11 series.
-
Page 7: Onscreen Display (Osd) Menus
Onscreen Display (OSD) Menus The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings. Main menu Sub menu Presentation to Go Photo: For access of photo files. Video: For access of video files. Setting Music : For access of music files. -
Page 8: Setting
Setting Photo Setting For access of photo settings. Music Setting For access of music settings. Video Setting For access of video settings. -
Page 9: Photo Setting
Photo Setting Display Mode Press entering the photo list. • • • • Display Ratio Press • • Slideshow Duration Press • Slideshow Repeat • Slideshow Effect Press want. There are various kinds: Random, Snake, Partition, Erase, Blinds, Lines, GridCross, Spiral, Rect., Off. -
Page 10: Music Setting
Music Setting Play Mode Press • • • • Music Effect Press There are various kinds: Rock, Pop, Classic, Soft, Jazz, DBB, Normal. Show Spectrum Choose "On" to show the spectrum plot while music is playing. Auto Play Choose "On" to play music automatically while entering the music list. -
Page 11: Video Setting
Video Setting Display Ratio Play Mode Auto Play Press to select display ratio • Auto: Keep original aspect ratio and resize to fit horizontal or vertical direction of the screen. • Original Size: Display video in original size of the content. -
Page 12: Appendices
Appendices Troubleshooting If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center. Problems and Solution Problem The projector stops responding to all controls... -
Page 13: Multi-Media Format Supported
Multi-media format supported JPEG Decode Video Decode and Movie Formats Music Formats Card Reader Interface USB Interface JFIF file format 1.02 compliant3 Support image size up to 19.66M pixels JPEG decode speed 15MPixel/Sec JPEG compressed thumbnails preview Support BMP picture formats Support MJPEG D1@30fps (480P@30Hz/576P@25Hz) Support MJPEG4@SP... -
Page 14: Photo Format
1. Photo Format Sub type Image type (ext name) Jpeg / Jpg Baseline progressive 2. Music Format Music type(ext name) ADPCM-WAV PCM-WAV Encode type Max pixels YUV420 No Limitation YUV422 YUV440 YUV444 YUV420 5120 X 3840 YUV422 YUV440 YUV444 No Limitation Sample rate(KHz) Bit rate(Kbps) 8-48... -
Page 15: Video Format
3. Video Format File Video Profile format format & level AVI, H264 Base- MOV, line 3.1 MP4, MPEG4 Simple Profile/ Level 5 MJPEG Baseline Note: Doesn’t support B-Frame function. MAX res MAX Bit rate (bps) 720x480 30fps, 1.5M 720x576 25fps 720x480 30fps, 2.5M 720x576 25fps...
