Summary of Contents for Future Design ELI70-IRHW

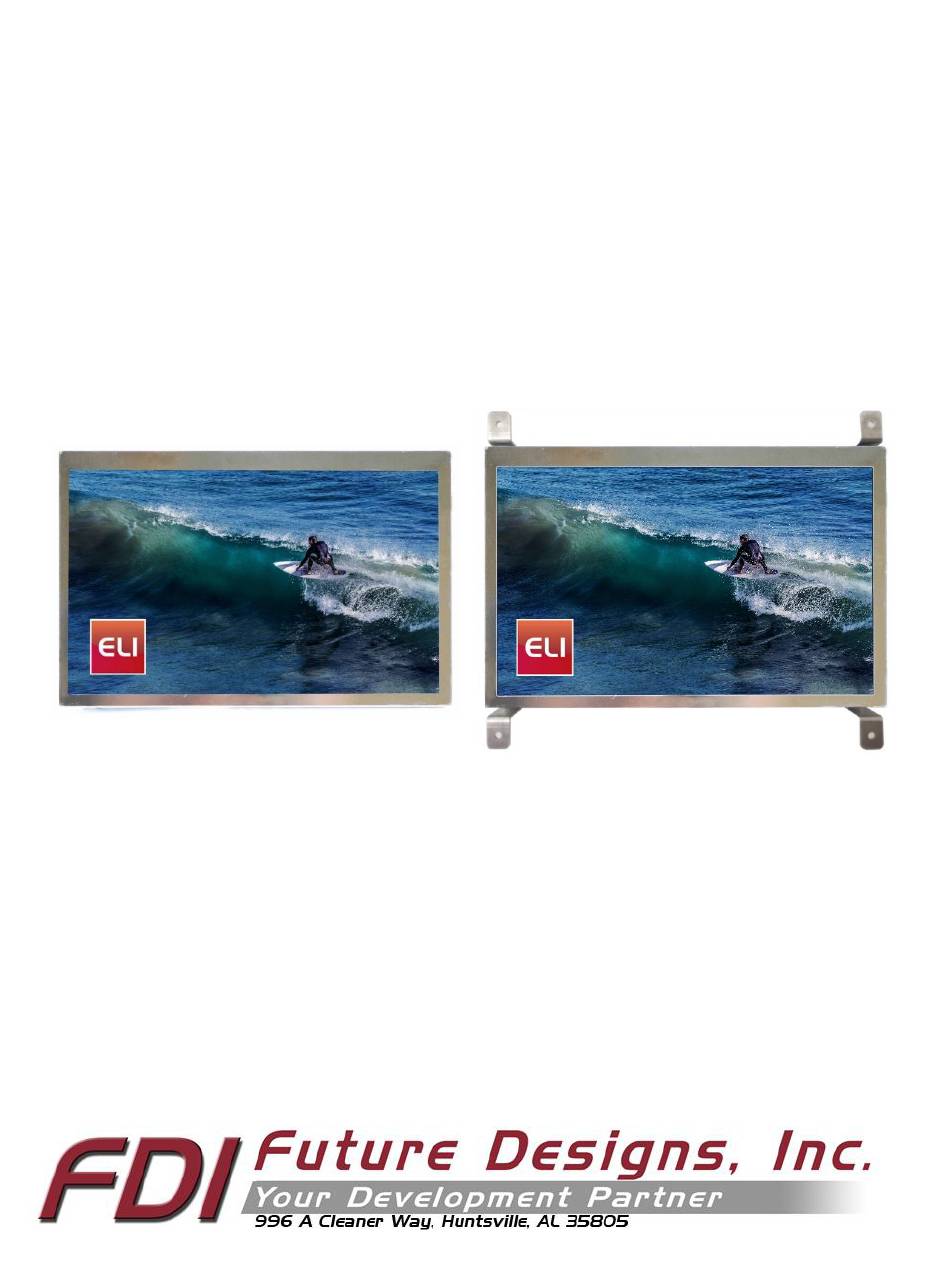

- Page 1 User’s Manual ELI70-IRHW & ELI70-IRHW-M ELI70-IRHW ELI70-IRHW-M (includes brackets) Revision 1.02 Copyright ©2017, Future Designs, Inc., All Rights Reserved...
- Page 2 User’s Manual ELI70-IRHW Important Legal Information Information in this document is provided solely to enable the use of Future Designs, Inc. (FDI) products. FDI assumes no liability whatsoever, including infringement of any patent or copyright. FDI reserves the right to make changes to these specifications at any time, without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Future Designs, Inc.
- Page 3 User’s Manual ELI70-IRHW Important Legal Information .......................... 2 Introduction ............................4 ELI70-IRHW Box Contents ........................ 5 Optional Accessories Recommended for Use (Purchased Separately) ..........5 ESD Warning ............................5 Technical Specifications ........................6 Connectors ............................7 Power Details ............................7 Extended Display Information Data (EDID) ..................
- Page 4 User’s Manual ELI70-IRHW Introduction About ELI (the Easy LCD Interface) is Future Designs, Inc.’s family of long-life, plug-and-play embedded displays. ELI ® products are true modular embedded display solutions that require no engineering or lead-time. All ELI products are compatible with a wide range of single board computers including Raspberry Pi, BeagleBone Black and Windows-based units.
-
Page 5: Optional Accessories Recommended For Use (Purchased Separately)
ELI70-IRHW Your ELI Experience Share your experience connecting ELI devices to various (single board) computers at: http://www.teamfdi.com/edid/#edidform. ELI70-IRHW Box Contents ELI70-IRHW Quick Start Guide Optional Accessories Recommended for Use (Purchased Separately) 12V DC +/-5% 2A Power Supply with a center positive b arrel plug 2.1mm I.D. -
Page 6: Technical Specifications
User’s Manual ELI70-IRHW Technical Specifications Table 1. Technical Specifications Screen Size (inches): Display Technology: a-Si TFT LCD Resolution: 800 x 480 (WVGA) Brightness (nits typical): 1000:1 Contrast Ratio (typical): Aspect Ratio: 16:9 Interface Input Mode: HDMI/DVI Colors: 262K (18 bit) 85/85°... -
Page 7: Power Details
ELI unit being used. On the ELI70-IRHW plug power into the (P2) connector. For volume production applications, the input power can be optimized for your particular ELI unit and lower capacity power supplies can be used. - Page 8 J8 connector (PCB terminal block - PTSM 0,5/ 2-2,5-H SMD WH R24 – 1814634) can be found at http://tinyurl.com/1814634. To verify that the ELI70-IRHW unit is correctly powered you may check the 12VDC input with a Fluke meter or scope by probing the +12V and GND contacts shown below. Please verify that the 12VDC is present, is within the +/- 5% tolerance and is free from excessive noise or AC ripple.
-
Page 9: Extended Display Information Data (Edid)
Modulated (PWM) signal to pin 2 of J5. This signal must be between 5KHz and 100KHz. On the ELI side we softly pull the PWM diming signal to LCD_VDD providing 100% backlight power when no PWM signal is applied at J5. In the ELI70-IRHW, power consumption can be controlled from 1.27W to 0.43W with the PWM signal. - Page 10 ELI70-IRHW Bracket ELI70-IRHW-M comes with brackets to provide additional mounting options. The dimensions of the bracket and mounting holes are shown below for your reference. If necessary, the brackets can be removed or replaced by removing two screws on each side of the ELI display.
- Page 11 User’s Manual ELI70-IRHW Support 11.1 Where to Get Help Online technical support is available at http://www.teamfdi.com/support/ 11.2 Useful Links Future Designs, Inc. Forums: http://www.teamfdi.com/forum ELI43-CP Product Page: http://www.teamfdi.com/product-details/eli70-irhw ELI Software User’s Manual: http://www.teamfdi.com/wp-content/uploads/ELI-Software- Users-Manual.pdf Tell us about your ELI experience: http://www.teamfdi.com/edid/#edidform...
