Summary of Contents for LevelOne WAP-6017

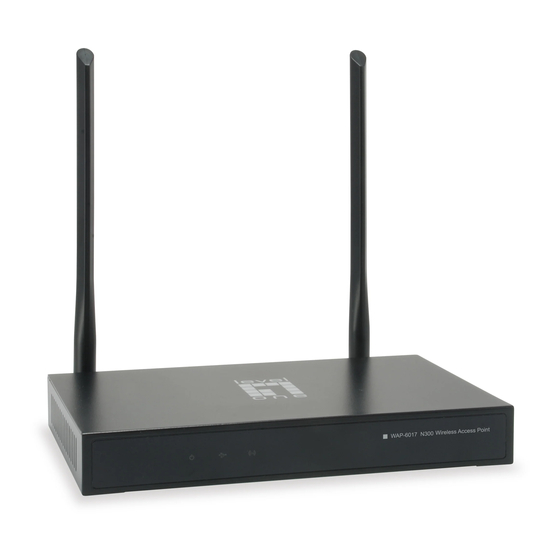

- Page 1 Quick Installation Guide ( WAP-6017 / WAP-6117 ) V1.2 Digital Data Communications GmbH, Germany. http://www.level1.com...
-
Page 3: Table Of Contents
Figure 4------------------------------------------------------------12 Package Contents - RJ45 Network Cable - Rubber Feet - Quick Installation Guide - EU Declaration of Conformity - Resource CD (User Manual, QIG) - Power Adapter (For WAP-6017) NOTE: WAP-6117 Power Adapter unit is to be ordered separately... -
Page 4: Led Light State Description
1. LED Light State description Front Panel : l As connections are made, check the port status LEDs LEDs LED Light State Description On Green The Device is powered Power Light State The Device is not powered The Device is powered / On Green USB is connected USB Light State... - Page 5 Rear View : l As connections are made, check the port status LEDs Status Description The port is transmitting/receiving On/Blinking Green packets On Green On LAN is connected (10/100Mbps The port has not active network RJ45 Ports) cable connected, or it is not established a link to connected device.
-
Page 6: Interface Description
2. Interface Description Port Description The WAN/POE port is used to connect to network devices, such as a POE switch OR POE adapter. The LAN port is used to connect to network devices, such as a switch or PC With the AP powered on, press the Reset button for 10 seconds until the USB LED blink with green light and System LED on Reset without blink. -
Page 7: English
(Figure 1) Software Installation To login to the LevelOne AP, please perform the following steps: 1. Check Your Network Settings to login web UI. Please make sure your PC can get IP address automatically, so the router can communicate with your PC during configuration. -
Page 8: Deutsch
Router. Verwalten Sie den Zugangspunkt vom Computer aus. (Figure 1) Softwareinstallation Bitte gehen Sie zur Anmeldung am LevelOne-Zugangspunkt wie folgt vor: 1. Ihre Netzwerkeinstellungen zur Anmeldung an der Webschnittstelle prüfen. Bitte stellen Sie sicher, dass Ihr PC automatisch eine IP-Adresse beziehen kann, damit der Router in der Lage ist, während der Konfiguration mit Ihrem PC zu kommunizieren. -
Page 9: Français
Gérer le point d'accès depuis l'ordinateur. (Figure 1) Installation du logiciel Pour se connecter au PA LevelOne, veuillez effectuer les étapes suivantes : 1. Vérifiez vos paramètres réseau pour vous connecter à l'IU Web. Assurez-vous que votre PC peut obtenir l'adresse IP automatiquement, afin que le routeur puisse communiquer avec votre PC pendant la configuration. -
Page 10: Español
(Figure 1) Instalación del software Para iniciar sesión en un PA LevelOne, realice los pasos siguientes: 1. Comprobar la configuración de red para iniciar sesión en la interfaz de usuario Web. Asegúrese de que su PC puede obtener la dirección IP automáticamente de forma que el enrutador pueda comunicarse con su PC durante la configuración. -
Page 11: Português
(Figure 1) Instalação do software Para iniciar sessão no utilitário do PA LevelOne, execute os seguintes passos: 1. Verifique as suas definições de rede para iniciar sessão na interface Web. Certifique-se de que o seu PC é capaz de obter o endereço IP automaticamente, para que o router consiga comunicar com o seu PC durante a configuração. -
Page 12: Italiano
(Figure 1) Installazione del software Per accedere ad LevelOne AP, eseguire le seguenti procedure: 1. Verifica delle impostazioni di rete per l'accesso all'interfaccia utente web Assicurarsi che il PC possa ottenere automaticamente l'indirizzo IP, in modo che il router sia in grado di comunicare con il PC durante la configurazione. -
Page 13: Figure 1
Figure 1 Figure 2 -11-... -
Page 14: Figure 3
Figure 3 Figure 4 -12-...
