ChannelPlus Multi-switch
The H424 satellite multi-switch
satellite receivers to a dual LNB dish. The
multi-switch locks one LNB to receive

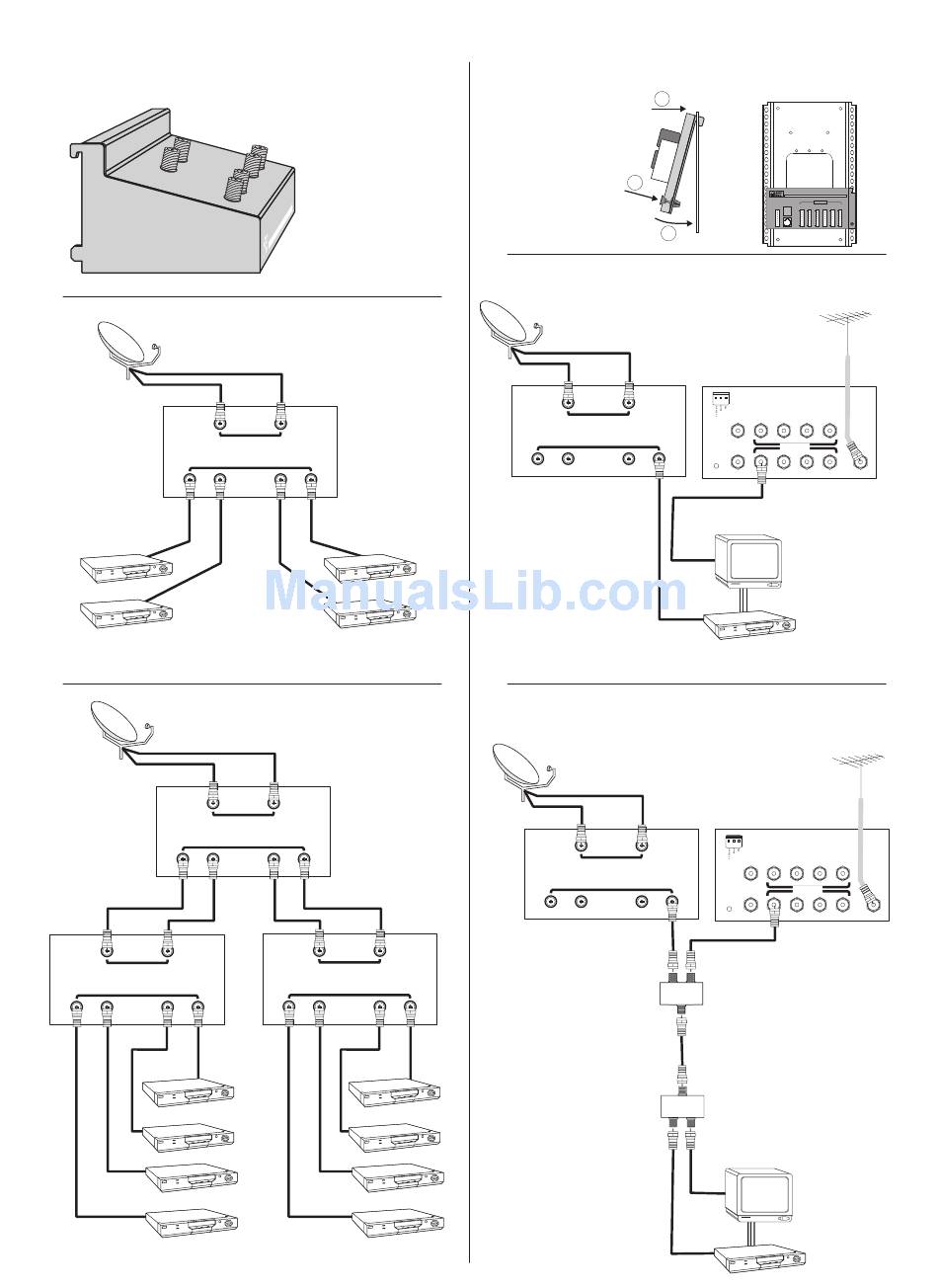

Typical installation
Dual LNB dish is required
LNB-A
13V
satellite receivers
Up to four
satellite receivers
Expanding the outputs
LNB-A
13V
dish
satellite receivers
LNB-A LNB-B
13V 18V
dish
satellite receivers
Adding a second multi-switch expands the system to six receivers. Adding
a third multi-switch allows the use of up to eight satellite receivers. Do not
cascade multi-switches more than 2 'layers' deep.
connects up to four
right hand polarized signals and
the other LNB to receive
left hand polarized
signals. The individual
satellite receivers may
)
s i o n s
t e l e v i
t s x 8
8 H H R
select any satellite
3 i n p u
l H 8 3
H u b (
m o d e
V i d e o
e l P l u s
C h a n n
channel. The multi-
switch will automatically
connect the receivers to
the correct LNB.
LNB-B
18V
dish
LNB-B
18V
LNB-A LNB-B
13V 18V
dish
satellite receivers
tm
OpenHouse modules attach from the top
1
1) Hook from the top
2) Swing into place
3) Push button to lock
3
2
Satellite and antenna distribution
LNB-A LNB-B
13V 18V
dish
satellite receivers
The highest performance method
of distributing satellite and
antenna (or CATV) signals is to
keep them separate. Run a second
coax cable to each room that will
have a satellite receiver.
Satellite and antenna distribution
using diplexers
LNB-A LNB-B
13V 18V
dish
satellite receivers
Diplexer
Single coax
Diplexer
Telephone Master Hub (4 lines x 6 phones) Telephone Master Hub (4 lines x 6 phones)
ChannelPlus model H616
From From Expansion Expansion Telephones Telephones
Telco Telco Ports Ports
R R RJ31X RJ31X
4
T T
R R
3
T T
R R
2
T T
Out
R R
1
T T
Antenna
or CATV
Video hub
(H838HHR shown)
High Headroom Amp w/IR Engine
B
+Pwr
Televisions CATV
Modulators
/Ant
A
Video hub
(H838HHR shown)
High Headroom Amp w/IR Engine
B
+Pwr
Televisions CATV
Modulators
/Ant
A
Diplexers allow you to combine satellite
and antenna (or CATV) signals on a
single coax. Combining these signals
sometimes creates new problems: The
diplexer will reduce the signal strengths,
increasing the chance of noisy pictures.
Coupling the two also invites
interference. We recommend only
using diplexers when you cannot run a
second coax.
