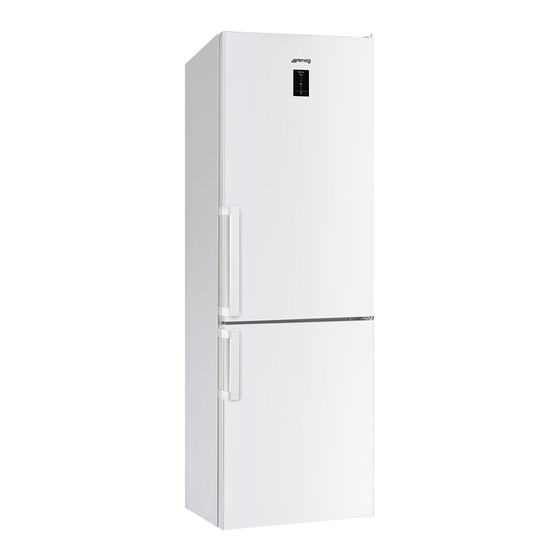

No-Frost Combi Refrigerator
Fridge - Freezer
User manual
No-Frost Kühl-/Gefrierkombination
Betriebsanleitung
Combine Froid Ventile
Réfrigérateur -
Congelateur
Guide d'utilisation
No-Frost Combi
Frigorifero
Frigo - Congelatore
Istruzioni per l'uso
No-Frost Combi Koelkas
Koelkast - Diepvriezer
Gebruikshandleiding
FC182PBNEM
FC182PMNEM
FC182PXNEM
Advertisement
Table of Contents
Related Manuals for Smeg FC182PBNEM
Summary of Contents for Smeg FC182PBNEM
- Page 1 No-Frost Combi Refrigerator Fridge - Freezer User manual No-Frost Kühl-/Gefrierkombination Betriebsanleitung Combine Froid Ventile Réfrigérateur - Congelateur Guide d’utilisation No-Frost Combi Frigorifero Frigo - Congelatore Istruzioni per l'uso No-Frost Combi Koelkas Koelkast - Diepvriezer Gebruikshandleiding FC182PBNEM FC182PMNEM FC182PXNEM...
-
Page 3: Table Of Contents
Index BEFORE USING THE APPLIANCE ......... 4 General warnings..............4 Old and out-of-order fridges............6 Safety warnings ................ 7 Installing and operating your fridge........... 8 Before Using your Fridge ............9 Information about New Generation Cooling Technology ..9 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ............ - Page 4 POSITION ................ 26 Repositioning the door ............. 26 BEFORE CALLING YOUR AFTER SALES SERVICE ... 27 TIPS FOR SAVING ENERGY .......... 30...
-
Page 5: Before Using The Appliance
BEFORE USING THE APPLIANCE General warnings WARNING: Keep vantilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. - Page 6 BEFORE USING THE APPLIANCE • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • This appliance is intended to be used in household and domestic applications such as: - staff kitchen areas in shops, offices and other working environments.
-
Page 7: Old And Out-Of-Order Fridges
BEFORE USING THE APPLIANCE Old and out-of-order fridges • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. -
Page 8: Safety Warnings
BEFORE USING THE APPLIANCE Safety warnings • Do not connect your Fridge Freezer to the mains electricity supply using an extension lead. • Do not plug in damaged, torn or old plugs. • Do not pull, bend or damage the cord. •... -
Page 9: Installing And Operating Your Fridge
BEFORE USING THE APPLIANCE Installing and operating your fridge Before using your fridge, you should pay attention to the following points: • The operating voltage for your fridge is 220-240 V at 50Hz. • We do not accept responsibility for any damages that occur due to ungrounded usage. -
Page 10: Before Using Your Fridge
BEFORE USING THE APPLIANCE Before Using your Fridge • When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor. •... - Page 11 THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.
-
Page 12: The Parts Of The Appliance And The Compartments
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 1) Wine rack * 2) Fridge shelves 3) Ionisier * 4) Chiller * 5) Crisper cover 6) Crisper 7) Freezer top baskets 8) Freezer bottom basket 9) Leveling feet 10) Ice tray 11) Freezer glass shelves 12) Bottle shelf 13) Door shelf (Adjustable door shelf *) -
Page 13: The Various Function And Possibilities
THE VARIOUS FUNCTION AND POSSIBILITIES Display and control panel Sr Alarm Indicator Cooler Set Button Cooler Set Button The temperature of the cooler compartment can be changed using this button. Super Cool and Economy mode can also be activated using this button. -
Page 14: Operating Your Fridge
THE VARIOUS FUNCTION AND POSSIBILITIES Operating your fridge Super cool mode How would it be used? • Push the Cooler Set Button until the Super Cool Symbol illuminates. The buzzer will sound twice and the mode will be set. During this mode: •... -
Page 15: Accessories
THE VARIOUS FUNCTION AND POSSIBILITIES adjustment. • Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open the doors of your fridge frequently and do not place much food inside it in this period. -
Page 16: Chiller Shelf
THE VARIOUS FUNCTION AND POSSIBILITIES Chiller Shelf (In some models) Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. -
Page 17: Adjustable Door Shelf
THE VARIOUS FUNCTION AND POSSIBILITIES Adjustable Door Shelf (In some models) Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf. To change the position of adjustable door shelf ; Hold the bottom of the shelf and pull the buttons on the side of the door shelf direction of arrow (Fig.1). -
Page 18: Natural Ion Tech / Ionisier
THE VARIOUS FUNCTION AND POSSIBILITIES Natural Ion Tech / Ionisier (In some models) Natural Ion Tech spreads negative ions which neutralize particles of unpleasant smell and dust in the air. By removing these particles from the air in the refrigerator, Natural Ion Tech improves air quality and eliminates odours. -
Page 19: Cleaning And Maintenance
CLEANING AND MAINTENANCE • Disconnect the unit from the power supply before cleaning. • Do not clean the appliance by pouring water. • Make sure that no water enters the lamp housing and other electrical components. • The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water. -
Page 20: Defrosting
CLEANING AND MAINTENANCE Defrosting Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there. • Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container. -
Page 21: Arranging Food In The Appliance
ARRANGING FOOD IN THE APPLIANCE Refrigerator compartment • For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to 4°C will be enough. • To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting. -
Page 22: Freezer Compartment
ARRANGING FOOD IN THE APPLIANCE Freezer compartment • Please use the deep freeze compartment of your refrigerator for storing the frozen food for a long time and for producing ice. • To get maximum capacity for freezer compartment, please just use glass shelves for upper and middle section. - Page 23 ARRANGING FOOD IN THE APPLIANCE Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It’s quite normal! After reaching equilibrium condition, the door will be opened easily. Important note: •...
- Page 24 ARRANGING FOOD IN THE APPLIANCE Maximum Storing time Meat and fish Preparation (month) Steak Wrapping in a foil 6 - 8 Lamb meat Wrapping in a foil 6 - 8 Veal roast Wrapping in a foil 6 - 8 Veal cubes In small pieces 6 - 8 Lamb cubes In pieces...
- Page 25 ARRANGING FOOD IN THE APPLIANCE Maximum Vegetables and Storing Preparation Fruits time (months) String beans and Wash and cut to small pieces and 10 - 13 beans boil in water Beans Hull and wash and boil in water Cabbage Cleaned and boil in water 6 - 8 Clean and cut to slices and boil in Carrot...
- Page 26 ARRANGING FOOD IN THE APPLIANCE Maximum Dairy Preparation Storing time Storing Conditions Products (months) Packet Pure Milk – In its (Homogenize) 2 - 3 packet own packet Milk Original package may be used for Cheese- short storing period. excluding In slices 6 - 8 It should be wrapped white cheese...
-
Page 27: Transportation And Changing Of Installation
TRANSPORTATION AND CHANGING OF INSTALLATION POSITION Transportation and Changing of Installation Position • The original packages and foamed polystyrene (PS) can be retained if required. • During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting. -
Page 28: Before Calling Your After Sales Service
BEFORE CALLING YOUR AFTER SALES SERVICE Check Warnings; Your fridge warns you if the temperatures for cooler and the freezer are at improper levels or if a problem occurs with the appliance. ERROR TYPE ERROR TYPE WHAT TO DO There is/are some Call an authorised service "Failure part(s) out of order... - Page 29 BEFORE CALLING YOUR AFTER SALES SERVICE If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically.
- Page 30 BEFORE CALLING YOUR AFTER SALES SERVICE If the doors are not opened and closed properly; • Do the food packages prevent closing of the door? • Are the door compartments, shelves and drawers placed properly? • Are door gaskets broken or torn? •...
-
Page 31: Tips For Saving Energy
TIPS FOR SAVING ENERGY 1. Install the appliance in a cool, well ventilated room , but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2. Allow warm food and drinks to cool down outside the appliance. 3.
