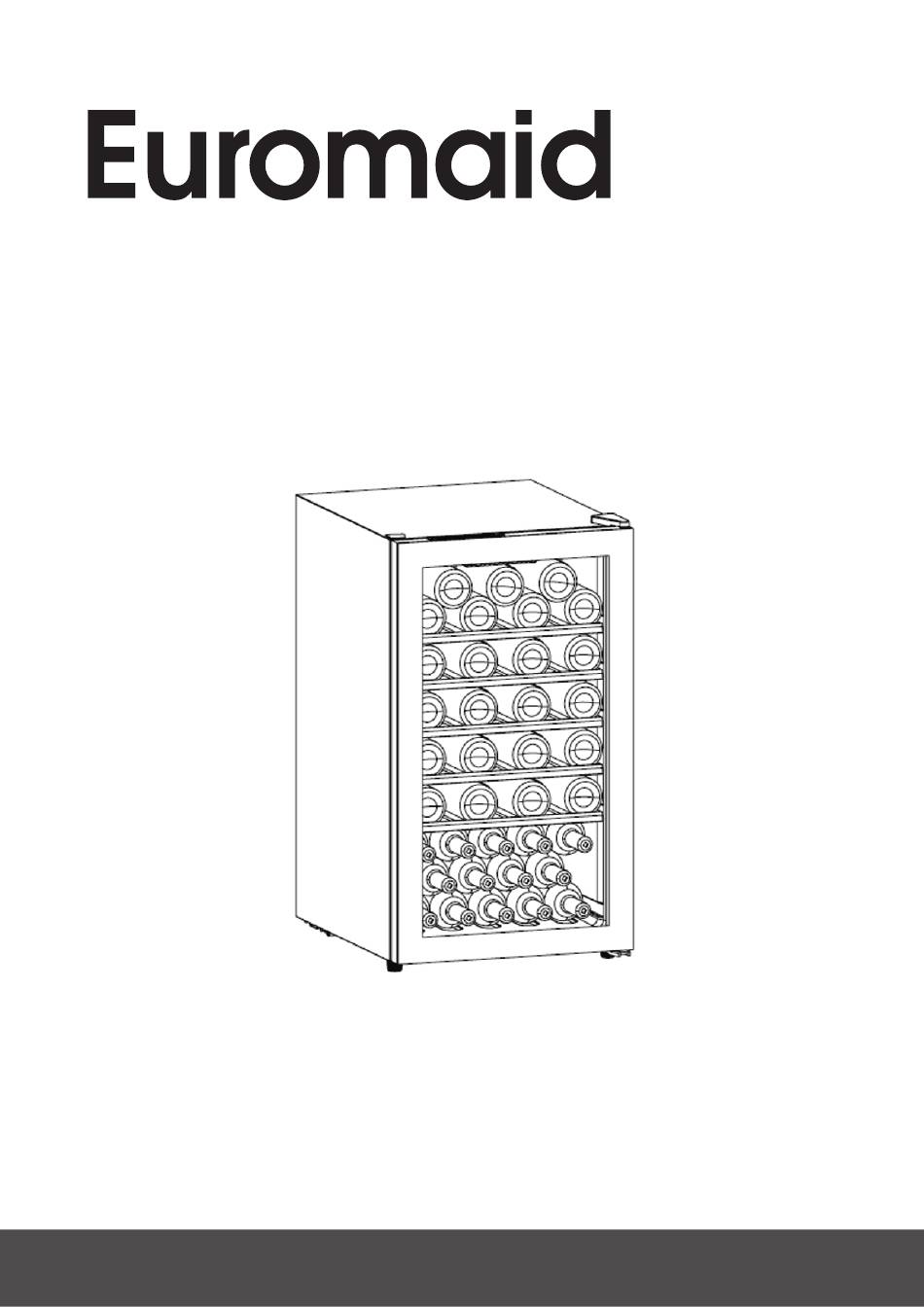

User Manual
Wine Chiller
EWC56FS
Thank you for purchasing and using this Euromaid wine chiller.
Our wine chillers and beverage centres are will create the perfect
environment to store and display your collection of wine and beverages.
www.euromaid.co.nz
euromaid.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the EWC56FS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euromaid EWC56FS

Summary of Contents for Euromaid EWC56FS

  • Page 1 User Manual Wine Chiller EWC56FS Thank you for purchasing and using this Euromaid wine chiller. Our wine chillers and beverage centres are will create the perfect environment to store and display your collection of wine and beverages. www.euromaid.co.nz euromaid.com.au...

  • Page 3: Table Of Contents

    Contents Safety instructions & warnings Page 4 - 6 Installation Page 7 Description of the appliance Page 8 - 10 Operation Page 11 - 13 Troubleshooting Page 14 Maintenance and cleaning Page 15 Technical parameters Page 16 Manufacturer Guarantee Page 17 - 18...

  • Page 4: Safety Instructions & Warnings

    Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department.
  • Page 5 • Make sure that the appliance is connected to power supply in accordance with the rating label. • Use an independent grounded socket with 10A or higher, do not connect to transformer or socket with multiple outlets. • Make sure socket is grounded properly and do not modify power cord & plug.
  • Page 6 Modification on the appliance not allowed • Do not attempt to modify the appliance by yourself as this may cause damages to the appliance. Unplug the appliance under certain conditions • Unplug the appliance before cleaning & maintenance. • Unplug the appliance when a power cut has occurred. Disposal of the appliance •...

  • Page 7: Installation

    Installation Position Do not lean the appliance over 45°, especially when moving it. The appliance must be put on flat, firm & dry floor or similar noncombustible pad; do not use the package foam pad. Do not put the appliance in a wet place. Do not use the appliance in a frozen place. Do not use the appliance outdoor in case of sunlight or rain.

  • Page 8: Description Of The Appliance

    Description of the appliance Overall image 1. Housing 7. Lower hinge 2. Display panel 8. Door 3. Shelf 9. Door seal 4. Evaporator 10. Handle 5. Sensor shield 11. Upper hinge 6. Adjustable front foot 12. Upper hinge cover Note: Shelves, door frame, handle and other accessories may be different according to different models and configuration.
  • Page 9 Door reversing 1. Parts for door reversing Door hinge cover Flange screw Door hinge Lower door hinge Short cabinet foot Height cabinet foot 2. Reversing the door Our wine chillers are delivered with the door opening from left to right. To reverse the opening direction: 1.
  • Page 10 5. Fit the lower door hinge to the lower left corner; Put the door above and insert into the lower door hinge. Install the short cabinet foot in the lower left corner of the cabinet and install the height cabinet foot in the lower right corner.

  • Page 11: Operation

    Operation Start operation 1. Cleaning the compartment Before powering on, clean inside of the appliance and check the drainage pipe is connected. (For details, please refer to the “Maintenance and cleaning”). 2. Stabilising the appliance Before powering on, level the appliance on a firm & dry floor for at least 30 minutes. 3. Power on Once the appliance has started operation, it will cool down internally after 1 hour, otherwise you should check the power connection.
  • Page 12 Down Press this key once, LED Display will flash showing current set temperature. Continue pressing to adjust set temperature, one press reduces temperature by 1°C. Flashing will stop after 5 seconds without any input and new set temperature will be saved. LED display will return to show actual temperature inside. Child Lock 1.
  • Page 13 Wine storage • The appliance is equipped with sufficient shelves to allow your collection of wine to mature quietly and peacefully. • Full shelves loading capacity: 56 bottles (standard Bordeaux 750ml bottles). • Loading capacity will vary depending on bottle arrangement or different bottle sizes. • Each shelf is designed to support 1 or 2 layers of wine bottles. More than 2 layers of bottles on one shelf is not recommended.

  • Page 14: Troubleshooting

    Troubleshooting The appliance makes lots of • Adjust the front foot, keep the appliance level. noise? • Keep the appliance spaced away from walls. There is a liquid flowing sound • It is normal because of the refrigerant working inside the cabinet? inside.

  • Page 15: Maintenance And Cleaning

    Maintenance and cleaning Cleaning • Disconnect the appliance before cleaning. • Clean the appliance with a soft cloth or sponge with water. • Do not use organic solvents, alkaline detergent, boiling water, washing powder or acidic liquid etc. • Do not flush the compartment of the appliance. • Clean regularly surfaces that can come in contact with accessible drainage systems.

  • Page 16: Technical Parameters

    Technical parameters Product model EWC56FS Voltage/frequency 220-240V~/50Hz Refrigerant/amount R600a/30g Effective volume 124L Loading capacity 56 bottles Net weight 29.9kg Unit dimension (WxDxH) 480×575×855 mm Packing dimension (WxDxH) 510×605×890 mm Remarks: 1. The net weight includes shelves, and the unit dimension is without handle on the door.

  • Page 17: Manufacturer Guarantee

    2 years from the date the product is purchased as a brand- new product from a retailer located in Australia / New Zealand. b) In the case of Euromaid products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
  • Page 18 e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or f) the product was not purchased in Australia / New Zealand as a brand-new product. 3. Consumer guarantees Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law.
  • Page 20 READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual. In addition, the appearance of the figures reported is also purely indicative.
