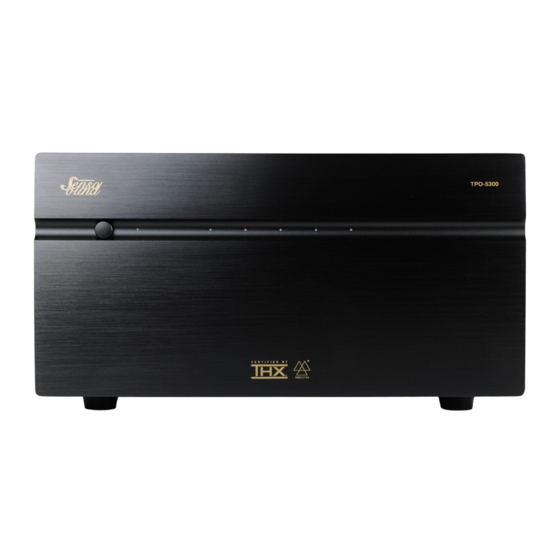

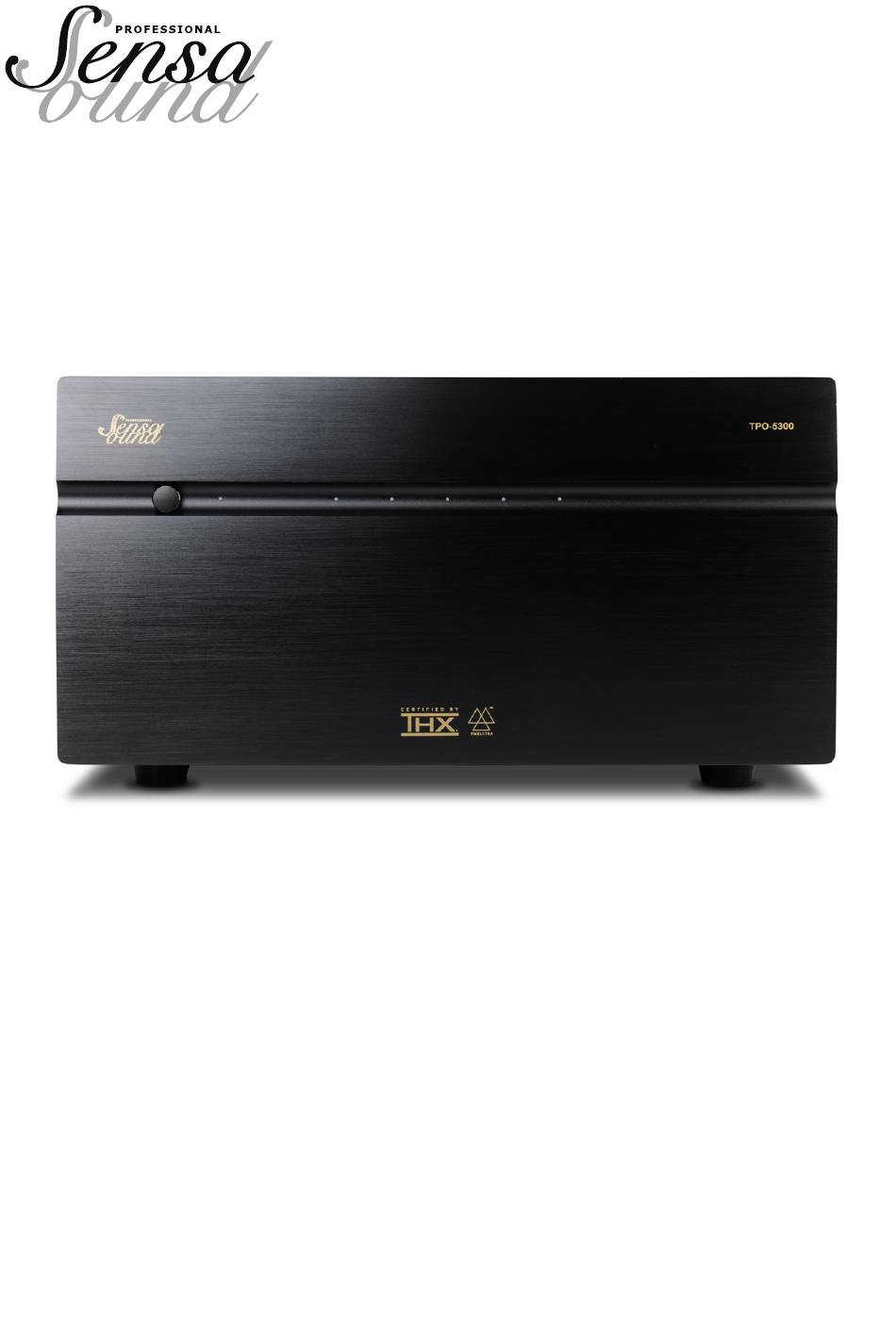

- Page 1 TPO-5300 User’s Manual @SENSASOUND USA LLC. ALL RIGHTS RESERVED www.sensasound.com Warren, New Jersey, USA...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Preface Cau�ons Unpacking Instruc�on Important Safety No�ce Product Features What the expert say About THX and THX Ultra Cer�fica�on Supplied Accessories Quick Opera�on Guide Front & Rear Panels Applica�ons Troubleshoo�ng Specifica�ons Warranty... -
Page 3: Cau�Ons
Should you s�ll have any ques�ons about the products, please contact your local dealer or directly contact us about your inquiry. Welcome to our SensaSound family, it is �me to amplify your home entertainment! SENSASOUND TEAM Cau�ons... -
Page 4: Important Safety No�Ce
14. Do not place the amplifier on unstable stand, shelf, bracket or table. This may cause a serious injury and product damage. Please follow all instruc�ons in this manual. Important: Turn off all equipment before you making any connec�on. SENSASOUND USA LLC TPO-5300 User’s Manual... -
Page 5: Product Features
What the expert say “Along with mee�ng our strict THX Ultra performance requirements, the Sensasound TPO-5300 amplifier has a lot of power capability, ensuring dialogue and explosions alike are heard clearly and without distor�on or clipping.” —Jon Cielo, Director of AV Technology at THX Jon Cielo, Director of AV Technology, has spent over 10 years at THX and his current responsibili�es include managing the technical accounts of THX’s audio partners as well as... -
Page 6: About Thx And Thx Ultra Cer�Fica�On
All in all, THX Cer�fica�on is a guarantee that products truthfully deliver the ar�st’s inten�on. Supplied Accessories ① ② ③ ① Power supply cord ② 12 V trigger cord ③ User’s Manual SENSASOUND USA LLC TPO-5300 User’s Manual... -
Page 7: Quick Opera�On Guide
Below are the quick steps for those of you who want to operate the TPO-5300 right away. 1.Make sure the system remained powered off un�l all connec�ons are completed. -
Page 8: Front & Rear Panels
flashing red, the amplifier is in self-protec�on mode. Please check if there are any short-circuits or any low impedance loads with the speakers. ④ SensaSound registered logo This is SensaSound registered logo for professional series. ⑤THX logo and THX ULTRA applica�on icon ⑥Product model name SENSASOUND USA LLC TPO-5300 User’s Manual... - Page 9 This switch enables the amplifier to be opened in two ways. This switch stays in TRIGGER mode by default. Under this mode, when given 12V input, TPO-5300 will be turned on automa�cally. When the switch stays in ON mode, it will be turned on by push the power bu�on in the rear panel.
- Page 10 (See below illustra�on). · Don’t short-circuit or it may damage the amplifier. · To take full advantage of the amplifier’s sonic quality, we recommend using SensaSound high-quality speaker cable. SENSASOUND USA LLC TPO-5300 User’s Manual...
- Page 11 The amplifier automa�cally detects and switches between 110V and 220V. These indicators tell you which line voltage the amplifier has detected. No manual ac�on is required. AC input ⑩ Never connect to AC that exceeds the power range or it may damage the amplifier. SENSASOUND USA LLC TPO-5300 User’s Manual...
-
Page 12: Applica�Ons
Troubleshoo�ng If you experience any of the following difficul�es while using the TPO-5300 power amplifier, use this troubleshoo�ng guide to help you remedy the problem. Should any problem persist, please contact SensaSound directly or consult your nearest SensaSound dealer. -
Page 13: Specifica�Ons
Signal to noise ra�o ………………………………………………………..≥112dB (A-weighted), unbalance ≥107dB (A-weighted), balance THD ……………………………………………………………………………………………………..……...≤0.08%（1KHz） Recommend Power………………………………………………………...……………………..1400W@8 Ohms 2200W@4 Ohms Input sensi�vity ……………………………………………………………………………………..1.4V rms@200W Gain…………………………...………………………………………………………………………………………..…….29.5dB Product Dimensions (W*H*D) ………………………………………………………………… 17.3"*9.4"*19.7" Package Dimensions(W*H*D) …………………………………………………………………23.6"*15.4"*25.2" Net Weight ………………………………………………………………………………………………...…77.2 lbs (35kg) Gross Weight…………………………………………………………………………………………….……90.4 lbs (41Kg) SENSASOUND USA LLC TPO-5300 User’s Manual... -
Page 14: Warranty
SensaSound dealer where you bought them. Please note, that we also need your warranty card and purchase proof, so keep them in a secured place a�er your purchasing of SensaSound products. - Page 15 SENSASOUND USA LLC, P.O. Box 4137, Warren, NJ 07059, USA www.sensasound.com SENSASOUND USA LLC TPO-5300 User’s Manual...
