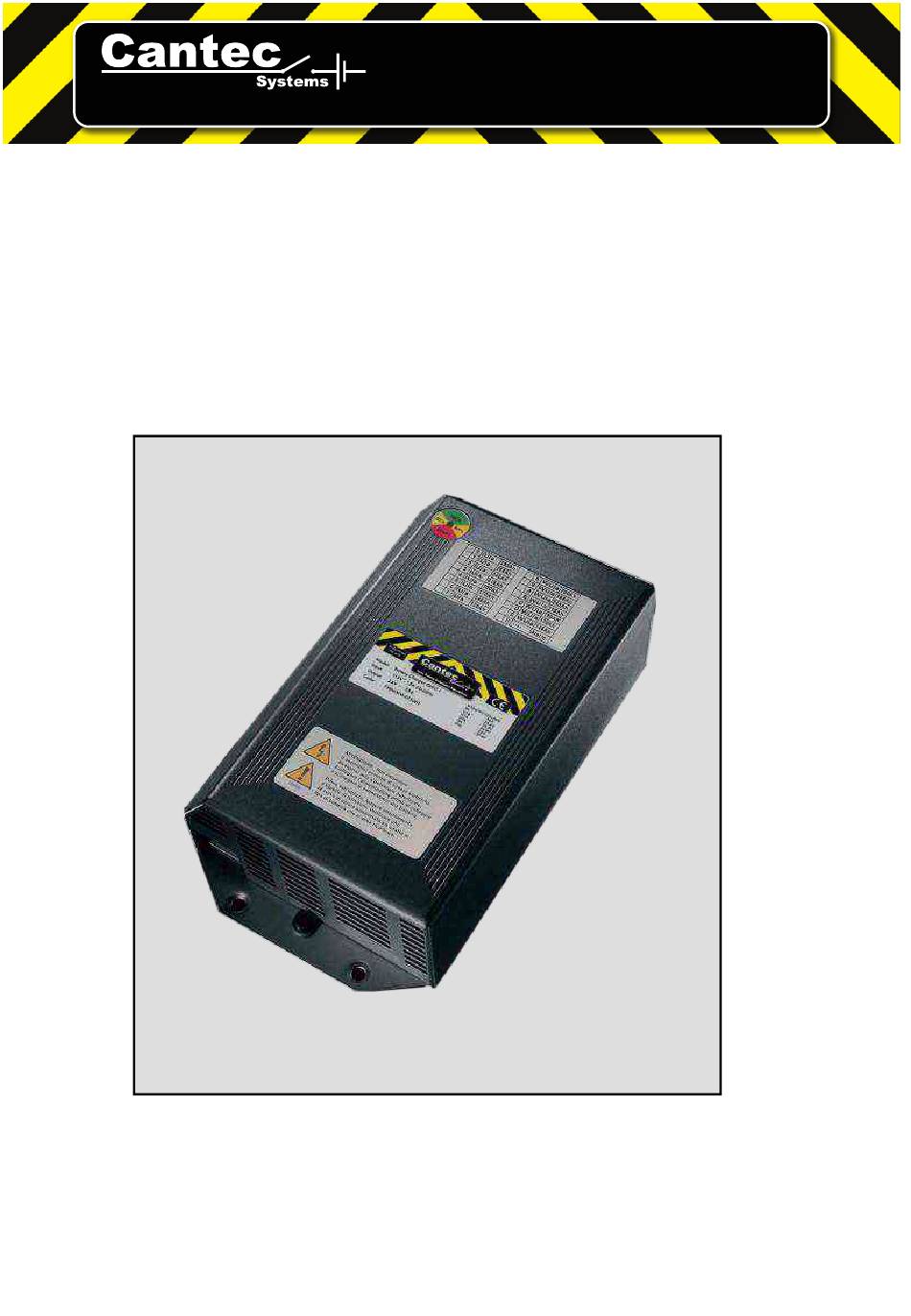

- Page 1 CHFC-1 HIGH FREQUENCY BATTERY CHARGER Your Power Solutions Specialists Installation and User Manual...
- Page 2 Battery charger CHFC-1 ATTENTION: To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel. Disconnect the mains supply before connecting or disconnecting the links to the battery. Read the Instruction Manual carefully before use. Verify that the selected charge curve is suitable for the type of battery You have to re-charge.
-
Page 3: Installation And Safety Instructions
Battery charger CHFC-1 Installation and safety instructions Battery charger CFHC-1 has been designed to provide safe ty and reliable. It is necessary to observe the following precautions in order to avoid damage to persons and to the battery charger: •... -
Page 4: Operating Principle
Battery charger CHFC-1 Operating principle The battery charger considerably affects battery life and performances, which is the main part of every electric vehicle. A non controlled traditional battery charger (rectifier) provides a simple direct AC/DC conversion. • Disadvantages of this solution are: •... -
Page 5: Led Indicator
Battery charger CHFC-1 LED Indicator 100% RED LED shows that the battery is in the initial charging phase. YELLOW LED shows that the battery charger has reached 80% of charge. GREEN LED shows that the battery has reached 100% of charge. -
Page 6: Auxiliary Contacts
Battery charger CHFC-1 Auxiliary Contacts AUX1 AUX2 Technical Features: changeovers contacts 0,3A 125VAC 0,3A 110VDC 1A 30VDC faston 6,3 × 0,8 mm Connector: Unless otherwise stated, the auxiliary contacts provide the following functions: Section Function Description AUX1 Mains Presence When the equipment is switched on, the contact Normally Open (NO) CLOSES and instead the contact Normally Closed (NC) OPENS. -
Page 7: Mechanical Dimensions
Battery charger CHFC-1 Mechanical dimensions N.B. All dimensions are expressed in mm. Drilling details Ø6 Advised Installation N.B. All dimensions are expressed in mm. -
Page 8: Technical Features
Battery charger CHFC-1 TECHNICAL FEATURES Ta=25° C unless otherwise specified Mains side Description Symbol Test Condition Value and/or Unit Range Supply Voltage 115 ± 10% Veff Frequency 50 ÷ 60 Absorbed Maximum Current P = P Aeff Inrush Current Vin = 115Veff <... -
Page 9: Protection And Safety
Battery charger CHFC-1 General Description Symbol Test Condition Value and/or Unit Range ∆ Operating range of temperature from -20 to ° C Maximum relative humidity Switching frequency 50 ± 5% η Efficiency At each operation > 85% condition Maximum size a×b×c...
