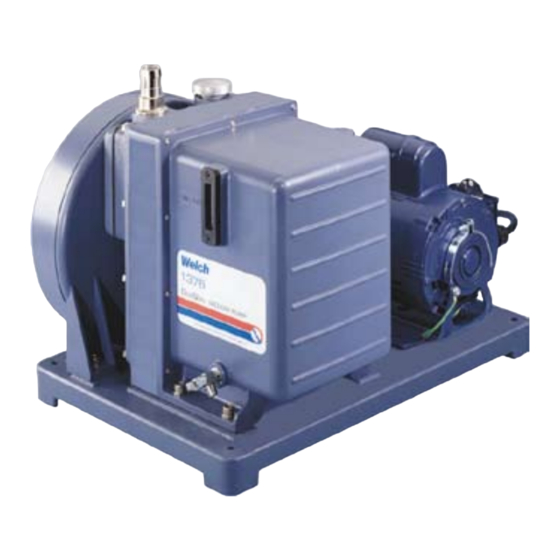

MODELS: 1376B-46, 1376C-46, & 6D731
If the exhaust port is blocked, pressure will build-up in the pump
Gardner Denver Thomas, Inc.
Welch Vacuum Technology
5621 W. Howard Street
Niles, IL 60714
Phone: (847) 676-8800
Fax: (847) 677-8606 Technical Support (847) 588-2366
E-Mail: gdwelchvacuum@gardnerdenver.com
Web-Page: www.welchvacuum.com
OWNER'S MANUAL FOR
DUOSEAL® VACUUM PUMP
Never block the Exhaust Port.
with the potential of the pump body bursting and causing
possible injury to personnel in the area.
SAVE THESE INSTRUCTIONS
WARNING
Manufactured in an
ISO 9000
Registered Environment
Part No. 67-2059
Printed in USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Welch Duoseal 1376B-46 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gardener Denver Welch Duoseal 1376B-46

  • Page 1 OWNER’S MANUAL FOR DUOSEAL® VACUUM PUMP MODELS: 1376B-46, 1376C-46, & 6D731 Manufactured in an ISO 9000 Registered Environment WARNING Never block the Exhaust Port. If the exhaust port is blocked, pressure will build-up in the pump with the potential of the pump body bursting and causing possible injury to personnel in the area.
  • Page 2: Chart

    INSTRUCTION WARNING AND CAUTION PLEASE READ BEFORE OPERATION While reading your manual, please pay close attention to areas labeled: WARNING AND CAUTION. The description of each is found below. WARNING Warnings are given where failure to observe instruction could result in injury or death to people.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section Page Section 01 - Installation 1.10 Introduction Section 02 - Operation 2.10 Starting Procedures 2.20 Operation and System Optimization 2.21 High Pressure Operation 2.22 Gas Ballast Principles and Usage 2.23 System Leaks - Impact and Detection 2.30 Shutdown Procedure Section 03 - Maintenance...
  • Page 4: Section 01 - Installation

    Section 1: INSTALLATION 1.10 Introduction This manual has been complied not only for the care and maintenance of the DUOSEAL pump now in your possession but as a helpful reference and guide for many problems which are usually associated with mechanical vacuum pumps.
  • Page 5 1.15 Electrical Power 1.151 Power Source Review Review the power source and the motor rating to be sure they agree in voltage, phase and frequency. On three-phase applications the direction of rotation of the motor must be considered. Make a momentary check rotation at the time of power installation and wiring.
  • Page 6: Section 02 - Operation

    1.17 Traps (See Accessory section in the back of this manual.) 1.171 The need for a Trap Where corrosive vapors or large quantities of condensable vapors are evolved from vacuum processing, a cold trap may be used in the connecting line to the pump. It will help prevent damage to the pump mechanism and reduce oil contamination.
  • Page 7: High Pressure Operation

    2.20 Operation and System Optimization 2.21 High Pressure Operation DUOSEAL two-stage pumps are designed to be most efficient when operated at or near their ultimate blanked off pressure. The pump is designed to remove air from a vacuum system at atmospheric pressure to a deep vacuum. When the pump is operated at elevated pressures up to about 10 Torr for long periods of time, the pump will run hotter.
  • Page 8: System Leaks - Impact And Detection

    2.226 Other Forms of contamination control The application of the gas ballast is a moderate and very successful method for the removal of condensable vapors. For very heavily laden systems, other means of removal such as oil separators may be required. For mild cases of contamination the simple expedient of a cold trap or a change of oil serve the purpose.
  • Page 9: Section 03 - Maintenance

    Section 3: MAINTENANCE 3.10 Vacuum Problems 3.101 Pressure Determinations Leakage, contamination and unusual outgassing are the general causes of problems associated with poor vacuum. To operate at maximum efficiency a system must be thoroughly clean. If the system is completely clean and free from leaks, and unwarranted vacuum problems still exist, the pump should be checked.
  • Page 10: Oil Changes And Oil Level

    3.203 Forced Oil Flushing Procedure 1. Check the oil level, if the oil level is well above the fill mark, (This may indicate either the pump has been overfilled with oil or has ingested a liquid or a large amount of vapor water or organic solvents.) Please go to step 2.
  • Page 11: Repairing Oil Leaks

    3.40 Repairing Oil Leaks 3.41 Location, Cause and Effect Oil leaks may develop wherever two mating faces are sealed with a gasket. Such seams may fail as the result of deterioration of the gasket material, loosening of the screws caused by temperature variations, or improper care as the result of previous reassembly.
  • Page 12: Section 04 - Trouble Shooting Guide

    Section 4: TROUBLE-SHOOTING GUIDE 4.10 Poor Vacuum Readings 1. Disconnect vacuum pump from your vacuum system. 2. Obtain 1 gallon of DUOSEAL oil, 1 gallon or larger clear plastic container, clear drain hose (1/4 inch ID by at least 2.5 feet long), rubber gloves, goggles, apron and pliers. 3.
  • Page 13: Section 05 - Quick Reference Chart Chart

    Section 5: QUICK REFERENCE CHART Specifications Motor Options 1376 Free Air Displacement, L/M (CFM) 300 (10.6) Wired for 115V, 60Hz, 1Ph 1376B-01 Gas Ballast Wired for 230V, 60Hz, 1Ph Ultimate Pressure, Torr (mbar) 1 (1.3)x10-4 Wired for 230V, 50Hz, 1Ph 1376C-03* Rotational Pump (RPM) Wired for 230V, 60Hz, 3Ph...
  • Page 14 Section 6: DIMENSIONAL DRAWING...
  • Page 15: Section 07 - Pumping Speed Curves

    Section 7: PUMPING SPEED CURVES HIGH EFFICIENCY PUMPING CHARACTERISTIC OF DUOSEAL® PUMPS The low RPM design of DuoSeal vacuum pumps makes it possible to maintain high pumping efficiencies into the low micron range. High RPM direct drive vacuum pumps, on the other hand, experience a rapid fall off of pumping speed below 100 microns.
  • Page 16 Section 8: EXPLODED VIEW FOR MODEL 1376Z-46...
  • Page 17 PARTS LIST FOR MODEL 1376Z-46 ITEM DESCRIPTION ITEM DESCRIPTION 2-00-2706 SCREW PAN HD 10-32 x 3/8” LG. 41-1688 LARGE RING 62-0015 SCREW SOCKET HD 1/4-20 x 3.125” LG 41-1692 AIR FILTER, MESH 2-01-0316 SCREW HEX HD 5/16-18 x 1” LG. 41-1736 GAS BALLAST VALVE 2-01-0356...
  • Page 18: Oil Case

    VIEW AND PARTS LIST FOR MODEL 61-8101 Parts List for Model 61-8101 Item Qty. Description 61-2229A Oil Window Glass 61-2278 Drain Valve 61-2370 Oil Window Cover 61-8833 Oil Case, Machined...
  • Page 19: Section 09 - Accessory Section

    Section 9: ACCESSORY SECTION Exhaust Filter Filters oil mist from Filters to 0.3 micron Easy Replacement Reduces pump noise particle size pump exhaus Standard Exhaust Filter Dimension Catalog Number Diameter Height Filter Replacement Use with pump model Element 1392, 1399, 1400 1417 1417L 1376,1380, 1402,1400...
  • Page 20 Section 9: ACCESSORY SECTION Exhaust Filter Filters oil mist from Filters to 0.3 micron Easy Replacement Reduces pump noise particle size pump exhaus Standard Exhaust Filter Dimension Catalog Number Diameter Height Filter Replacement Use with pump model Element 1392, 1399, 1400 1417 1417L 1376,1380, 1402,1400...
  • Page 21: Section 10 - Msds - Sheets For Duoseal® Oil

    Section 10: MSDS-Sheet for DUOSEAL® OIL MATERIAL SAFETY DATA SHEET FOR: 1407K DUOSEAL VACUUM PUMP OIL HMIS Rating: Health: 0 Flammability: 1 Reactivity: 0 Special: X SECTION 1 - IDENTIFICATION Chemical Name: Highly-Refined Petroleum Lubricant Oils Synonyms: 1407K DUOSEAL Vacuum Pump Oil Formula: Manufacturer’s Name: Gardner Denver Thomas, Inc., Welch Vacuum Technology...
  • Page 22 Chronic Health Effects Summary: Contains a petroleum-based mineral oil. Prolonged or repeated skin contact can cause mild irritation and inflammation characterized by drying, cracking, (dermatitis) or oil acne. Inhalation of petroleum-based mineral oils can cause respiratory irritation or other pulmonary effects after repeated or prolonged inhalation of oil mists at concentrations above applicable workplace exposure levels.
  • Page 23 SECTION 5 - FIRE FIGHTING MEASURES NFPA Flammability Classification: OSHA/NFPA Class-IIIB combustible liquid. Slightly combustible! Flash Point/Method: CLOSED CUP: 210°C(410°F). (Pensky-Martens (ASTM D-93)) OPEN CUP: 238°(460°F) (Cleveland.). Lower Flammable Limit: No data Upper Flammable Limit: No data Auto-Ignition Temp.: Not available Hazardous Comb ustion Products: Carbon Dioxide, carbon monoxide, smoke fumes, unburned hydrocarbons and trace...
  • Page 24 Eye Protection: Safety glasses equipped with side shields should be adequate protection under most Conditions of use. Wear goggles and/or face shield if splashing or spraying is likely, especially if material is heated above 125°F(or 51°C). Have suitable eye wash water available.
  • Page 25 SECTION 10 – STABILITY AND REACTIVITY Chemical Stability: Stable Hazardous Polymerization: Not expected to occur. Conditions to Avoid: Keep away from extreme heat, sparks, open flame and strong oxidizing conditions. Materials Incompatibility: Strong oxidizers Hazardous Decomposition Products: No additional hazardous decomposition products were identified other than the combustion products identified in section 5 of this MSD SECTION 11 –...
  • Page 26 SECTION 14 – TRANSPORT INFORMATION DOT Status: Not regulated by the U.S. Department of Transportation as a hazardous material. Proper Shipping Name: Not regulated Hazard Class: Not regulated Packing Group(s): Not applicable UN/NA ID: Not regulated Reportable Quantity: A Reportable Quantity (RQ) has not been established for any components of this material.
  • Page 27 California Proposition 65: This material may contain the following components which are known to the State of California to cause cancer, birth defects or other reproductive harm, and may be subject to the requirements of California Proposition 65 (CA Health & Safety Code Section 25249.5): Toluene: 0.0008% New Jersey Right-To-Know Label: Petroleum Oil...
  • Page 28 Gardner Denver Thomas, Inc. Welch Vacuum Technology Vacuum Pump Repair Facility 5621 W. Howard Street Niles, IL 60714 Phone: (847) 676-8800 Fax: (847) 677-8606 (Technical Support) (847) 588-2366 E-Mail: gdwelchvacuum@gardnerdenver.com Web-Page: www.welchvacuum.com This document contains confidential and trade secret information which is the property of Welch Vacuum Technology and receipt or possession does not convey any rights to loan, sell, or otherwise disclose said information, reproduction or use of said information for any purpose other than that in connection with said information was supplied may not be made without express written permission of Welch.
