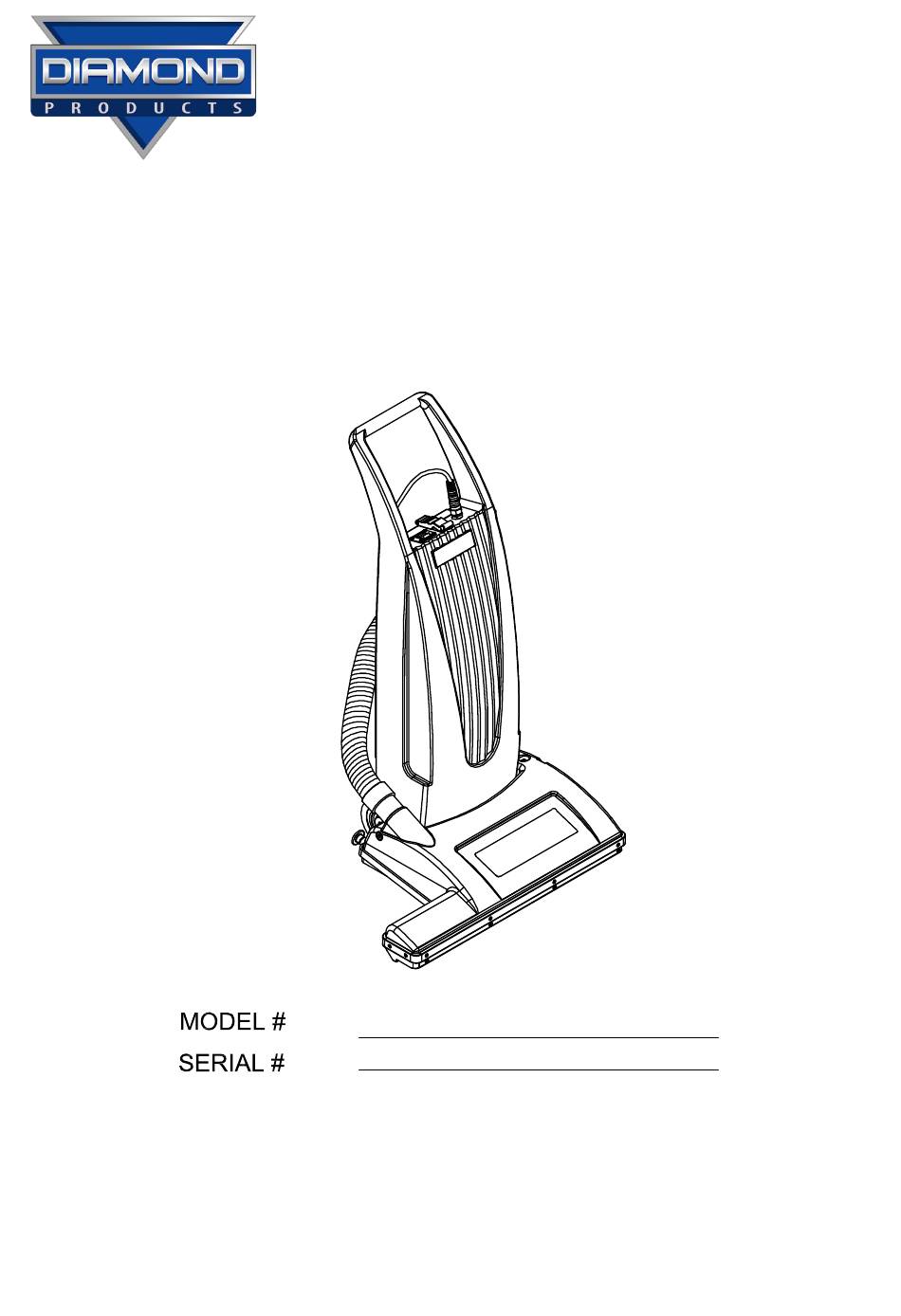

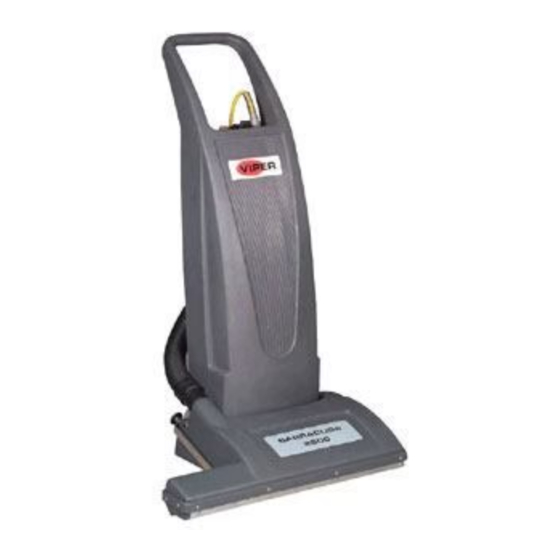

- Page 1 WIDETRAK 26 WIDE AREA VACUUM OPERATOR'S MANUAL IMPORTANT: READ OPERATOR'S MANUAL CAREFULLY Please fill out & return your warranty card! DP80900 Diamond Products www.diamondproductsus.com Printed in the U.S.A.
-
Page 2: Warranty Information
Diamond Products US. Warranty Information Thank you for purchasing a Diamond Products US product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product, email your warranty card information to: info@diamondproductsus.com... - Page 3 - Unplug power cord from outlet. 5) When servicing machine: - Unplug cord from outlet. - Use manufacturer supplied or approved replacement parts. - Avoid moving parts. Do not wear loose clothing. Diamond Products Operator's Manual...
- Page 4 5) Attachment tool intake & cord wrap 6) Vacuum hose 7) Brush housing 8) Brush height adjustment 9) Rear wheels 10) Exhaust vent 11) Handle height adjustment 12) Brush circuit breaker (bottom side) 13) Brush assembly (bottom side) 14) Rear door Diamond Products Operator's Manual...
- Page 5 OPERATING HINTS 1) Overlap cleaning path by approx. 2 inches 2) Work away from power outlet and power cable in order to avoid damage to the power cable. Diamond Products Operator's Manual...
- Page 6 2) Clean outside of machine with a mild cleaner. 3) Check power cord for any damage. If any damage is detected, replace the cord immediately. 4) Check machine for any loose or missing nuts and bolts and replace as necessary. Diamond Products Operator's Manual...
-
Page 7: Basic Troubleshooting
Check vacuum hose for loose cuffs or holes Vacuum hose faulty and replace as needed Remove vacuum filter and exhaust filter and Filters clogged clean Check vacuum bag / filter and relplace as Vacuum bag full needed Diamond Products Operator's Manual... - Page 8 PARTS LIST Diamond Products Operator's Manual...
-
Page 9: Parts List
VF14214 SCREW, M5x8 VA51039 SHOULDER BOLT, LATCH VV67504 CIRCUIT BREAKER, 2AMP GT13057 SCREW, SELF-TAPPING, ST5x10 VA51002 BUMPER, 26" VF99926-1 RECTIFIER VA51066 BLOCK, BRUSH SHAFT, LEFT ZD57000 MOTOR, BRUSH, 115V VA51011 MOUNT PLATE, MOTOR VA51019 PULLEY, MOTOR Diamond Products Operator's Manual... - Page 10 VA51033 GASKET, VACUUM MOTOR ZD52000A VACUUM MOTOR, 115V VA51049 FILTER, VACUUM MOTOR VF82082 LOGO VA65001 POWER CORD, 14/3C, SJTW, 50FT VA51044 STRAIN RELIEF, CORD VF83109 CATCH VV13650 SCREW, M4x10 VA51026 PLATE, SWITCH VF91346 SWITCH, ROCKER Diamond Products -10- Operator's Manual...
- Page 11 ACCESSORIES ACCESSORIES PARTS LIST(OPTIONAL) PART DESCRIPTION NUMBER REQ'D VA51061 KIT TOOLS (OPTIONAL) VA51060 HOSE ASSY VA20803 DUSTING TOOL VA20806 CREVICE TOOL VA20807 UPHOLSTERY TOOL VA20209 WAND VA20248 TUBE Diamond Products -11- Operator's Manual...
-
Page 12: Wiring Diagram
Wiring Diagram Diamond Products -12- Operator's Manual...
