INSTRUCTION MANUAL
MP5102
2 CH Media Player
DUAL CHANNEL DIGITAL MEDIA PLAYER
CH 1
CH 2
FM
FM
MP 5102
/ V-
/ V+
MODE
/ V-
/ V+
MODE
OFF/ON
OFF/ON
MIN
MAX
MIN
MAX

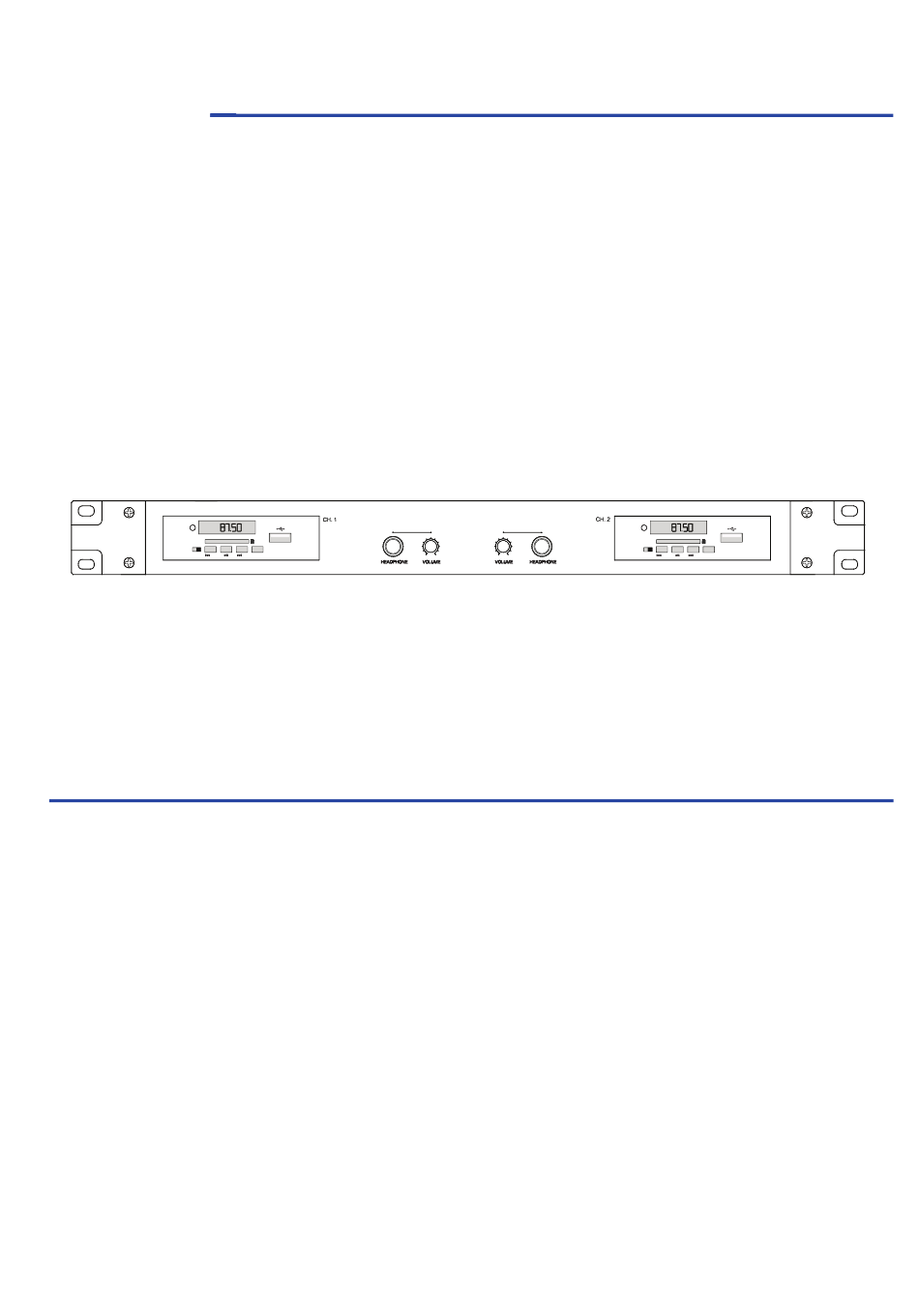

MP5102 is a newly added product, which is a 2 channel digital media player in a single rack mount unit. The modules
work independently and would be able to play files from SD card or USB drive as well as receiving FM broadcast.
It is suitable for system which requires multiple music sources such as Matrix system. MP5102 is definitely the choice
which offers great performance for a fraction of cost as compared to using individual player.
VER 1 / 2014
Advertisement
Table of Contents
Related Manuals for Amperes MP5102
Summary of Contents for Amperes MP5102
- Page 1 OFF/ON MP5102 is a newly added product, which is a 2 channel digital media player in a single rack mount unit. The modules work independently and would be able to play files from SD card or USB drive as well as receiving FM broadcast.
- Page 2 Module for AM/FM Tuner, SD & USB Input Slots, volume control as well as other control for playback. 7. DC INPUT CONNECTOR MP5102 shall require 24V DC for its operation. 8. OFF / ON BUTTON Power switch for the unit.
- Page 3 SIGNAL -40 dB PUBLIC ADDRESS POWER AMPLIFIER 100V Line Output ZS5312 CH 1 CH 2 ZS 5312 m pe re s OFF/ON / V- / V+ MODE OFF/ON / V- / V+ MODE SPEAKERS MP5102 | 2 Ch Media Player PAGE 3...
- Page 4 RCA jack Mono connection to each unit Channel 1 Channel 2 DC 24V CH. 2 CH. 1 CH. 2 CH. 1 0.5A LEFT OFF/ON RIGHT ANTENNA AUX OUTPUT LINE INPUT antenna cable MP5102 | 2 Ch Media Player PAGE 4...
- Page 5 / V+ Play & Stop Button Press this button to play or to stop. Mode Button The menu at the display would switch between :- MODE RADIO ---- USB ---- SD ---- RADIO MP5102 | 2 Ch Media Player PAGE 5...
- Page 6 To enter the radio mode, press Mode button & FM Radio reception mode shall be displayed. MODE Use the ‘Next’ or ‘Prev’ button to manually select the station. / V- / V+ Auto program select. Press this button briefly and the tuner shall automatically search the stations. MP5102 | 2 Ch Media Player PAGE 6...
- Page 7 RCA Stereo Line In Aux Audio Input RCA Stereo Audio Output LINE Out 1.2V unbalanced Output Voltage 482 x 44 x 180 mm Dimension (W x H x D) 1.8 kg Weight MP5102 | 2 Ch Media Player PAGE 7...
