Summary of Contents for ETNA KVV594

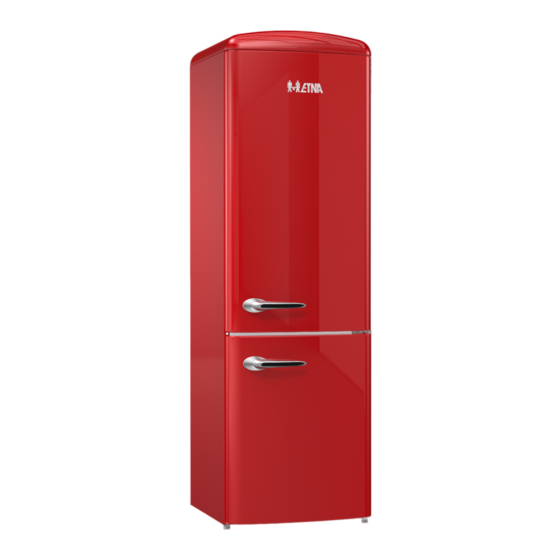

- Page 1 INSTRUCTIONS FOR USE UPRIGHT REFRIGERATOR-FREEZER KVV594...
- Page 2 We thank you for the confidence you have shown by purchasing our appliance. We wish you find a lot of pleasure in its use. The appliance is intended solely for household use. Refrigerator freezer (hereinafter: the appliance) consists of two parts: the upper part is the refrigerator and the lower part is the freezer.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION IMPORTANT NOTES AND WARNINGS ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES APPLIANCE DESCRIPTION APPLIANCE DESCRIPTION INSTALLATION AND CONNECTION 11 OPERATING THE APPLIANCE 16 APPLIANCE INTERIOR EQUIPMENT 20 RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE STORING AND 21 STORING FOOD IN THE REFRIGERATOR FREEZING FOOD 22 STORING FOOD IN THE ZEROZONE DRAWER... -
Page 4: Important Notes And Warnings
IMPORTANT NOTES AND WARNINGS This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 5 Before connecting the appliance to the power mains, let the appliance rest in a vertical position for approximately 2 hours. This will reduce the possibility of operation faults due to the effect of transport on the cooling system. The appliance must be connected to the power mains and grounded in compliance with the effective standards and regulations.
- Page 6 To protect the environment, take the obsolete appliance to an authorized home appliance collection center. Packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. Rating plate can be found in the appliance interior. If the language on the rating plate is not the language of your choice or the language of your country, replace it with the one supplied.
-
Page 7: Advice For Saving Power With Refrigeration Appliances
ADVICE FOR SAVING POWER WITH REFRIGERATION APPLIANCES • Install the appliance as specifi ed in the instruction manual. • Do not open the door more often than necessary. • Occasionally make sure air circulation underneath the appliance is unobstructed. • Condenser unit on the rear wall should be kept clean (see chapter Cleaning the appliance). -
Page 8: Appliance Description
APPLIANCE DESCRIPTION A Refrigerator Control unit 2 LED lighting of refrigerator interior 3 Pull-out glass shelf (height- adjustable) 4 Crisper (fruit and vegetables drawer) 5 Height-adjustable door bin 6 Bottle shelf B Freezer 7 Freezer drawers 8 Glass shelves • The drawers are protected against pulling out. To remove a drawer from the appliance, pull it out as far as it will go, then lift at the front and pull out completely. -
Page 9: Installation And Connection
INSTALLATION AND CONNECTION SELECTING THE ROOM • Install the appliance in a dry and well ventilated room. The appliance will operate correctly if the environment temperature is in the interval specifi ed in the table. The appliance class is indicated on the rating plate / label with the basic information on the appliance. Class Temperature from +10°C to +32°C... - Page 10 • Do not expose the appliance to direct sunlight and do not place it near any source of heat. If this cannot be avoided, install an insulation panel. • The appliance may stand alone or it may be placed ext to a cupboard or a wall. Consider the clearance required to fully open the door in order to allow pulling out the drawers and shelves (see installation diagram).
-
Page 11: Operating The Appliance
OPERATING THE APPLIANCE A Appliance on key and refrigerator compartment off key B Acoustic alarm off key C Super cool on/off key D Refrigerator compartment temperature keys E Refrigerator temperature display F Freezer compartment on key and appliance off key G ECO function on/off key H Super freeze on/off key Freezer compartment temperature keys... - Page 12 SWITCHING THE APPLIANCE ON/OFF Switching the appliance on: Switch on the appliance by briefly pressing the key A. With this model, it is possible to only switch on the freezer compartment while the refrigerator compartment is switched off. This setting can be made in two ways: - briefly press the F key to switch on the freezer compartment only;...
- Page 13 • To set the temperature in the freezer compartment use the keys I: lower temperature ; higher temperature. • Temperature in the freezer compartment can be set from -24°C to -16°C. • After one of the I keys is pressed, the most recent temperature setting will fl...
- Page 14 • With this setting, the compressor will operate continuously and the temperature in the freezer compartment will drop considerably. • If the setting is not deactivated manually (by pressing the »H« key), it will be deactivated automatically after approximately one day. Freezer compartment temperature will return to the most recent setting.
- Page 15 ECO FUNCTION To activate the Eco function, press the G key. With this function activated, appliance will operate with optimum settings. SAFETY BLOCK (CHILD SAFETY LOCK) Use this function if you do not wish to manually adjust the appliance settings. To activate, press and hold the B key (for three seconds);...
-
Page 16: Appliance Interior Equipment
APPLIANCE INTERIOR EQUIPMENT (* Equipment depends on the model) SHELF • For easier access to food and clarity, the shelves can be partly pulled out. • The shelves may be adjusted tu suit your preferences using the guides in the refrigerator interior. - Page 17 CRISPZONE – FRUIT AND VEGETABLE BIN WITH HUMIDITY CONTROL • The bin at the bottom of the refrigerator is intended for storing fruit and vegetables. It provides humidity and prevents the food from drying out. • Store the food in suitable packaging to prevent them from emitting or taking on odours. The bin has integrated humidity regulator which allows setting the humidity according to the amount of food stored.
- Page 18 STORAGE BIN (MULTIBOX)* • MultiBox bin offers a convenient way for storing food with a strong or pungent smell, e.g. ripened or blue-vein cheese, sausages, onions, butter etc. • The silicone lid provides an air-tight seal that prevents the food from drying out and the odour to spread throughout the refrigerator compartment.
- Page 19 NO FROST APPLIANCES Ionizer switched on Ionizer switched off ADAPTIVE INTELLIGENT TECHNOLOGY Innovative sensor technology allows adjusting appliance operation to the user's habits or behaviour. Adaptive intelligent system monitors, analyzes, and records on a daily and weekly basis the use of appliance and adapts appliance operation to the perceived patterns.
-
Page 20: Recommended Distribution Of Food In The Appliance
RECOMMENDED DISTRIBUTION OF FOOD IN THE APPLIANCE Sections of the refrigerator: - upper part: canned food, bread, wine, pastry etc. - middle part: dairy products, ready-made meals, desserts, soft drinks, beer, cooked food, etc. - ZeroZone bin: - meat, meat produce, delicatessen; - Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables, potatoes, onions, garlic, tomatoes, tropical fruit, sauerkraut, turnips etc. -
Page 21: Storing Food In The Refrigerator
STORING FOOD IN THE REFRIGERATOR IMPORTANT WARNINGS REGARDING FOOD STORAGE Correct use of the appliance, appropriate packaging, maintaining the right temperature, and observing the food hygiene standards has a decisive impact on the quality of food storage. Observe the expiry dates for the food, specified on the packaging. -
Page 22: Storing Food In The Zerozone Drawer
STORING FOOD IN THE ZEROZONE DRAWER The ZeroZone compartment allows storing a wide variety of fresh food for up to three times longer than in a conventional refrigerator. The food stays fresh longer, retaining the flavour and nutrients. The temperature in this drawer depends on the temperature settings in the refrigerator compartment, environment temperature, frequency of door opening, and amount of food placed in it. - Page 23 APPROXIMATE STORAGE TIME IN THE ZEROZONE DRAWER* Type of food Time sausages, cold cuts, beef, pork, venison, raw meat up to 7 days Poultry up to 5 days fish up to 4 days seafood up to 3 days Vegetables: cabbage, garlic, carrots up to 180 days celery, herbs up to 30 days...
-
Page 24: Freezing And Storing Frozen Food
FREEZING AND STORING FROZEN FOOD FREEZING PROCESS Maximum amount of fresh food that may be inserted at once is specified on the appliance rating plate. If the amount of food to be frozen exceeds the indicated amount, the quality of freezing will be inferior;... -
Page 25: Important Warnings On Freezing Fresh Food
IMPORTANT WARNINGS ON FREEZING FRESH FOOD Only freeze the food that is suitable for freezing in the freezer. Make sure the food you freeze is of high quality and fresh. Choose appropriate packaging and use the packaging correctly. Packaging should not be permeable to humidity; it should be airtight to prevent the food from drying out and loss of vitamins. -
Page 26: Frozen Food Storage Time
FROZEN FOOD STORAGE TIME Recommended storage time in the freezer Type of food Time fruit, beef from 10 to 12 months vegetables, veal, poultry from 8 to 10 months Venison from 6 to 8 months Pork from 4 to 6 months minced meat 4 months bread, pastry, ready-to-eat meals, lean... -
Page 27: Defrosting The Appliance
DEFROSTING THE APPLIANCE AUTOMATIC REFRIGERATOR DEFROSTING Refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically. Any accumulated ice will melt when the compressor unit is inactive. Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate. -
Page 28: Cleaning The Appliance
CLEANING THE APPLIANCE Before cleaning, unplug the appliance from the power mains – switch off the appliance (see chapter Switching the Appliance On/Off) and unplug the power cord from the wall outlet. • Use a soft cloth to clean all surfaces. Cleaners that contain abrasive substances, acids, or solvents are not suitable for cleaning as they may damage the surface. -
Page 29: Troubleshooting
TROUBLESHOOTING Problem: Cause or remedy: Appliance is connected • Make sure there is voltage in the power outlet and that to the power mains but it the appliance is switched on. does not work. • Too high environment temperature. Cooling system operates •... - Page 30 Problem: Cause or remedy: Door is difficult to open: • If you are trying to open the freezer door after just having closed it, this could be difficult to do. As you open the door, some cool air escapes from the appliance and it is replaced by warm air from the environment.
-
Page 31: Information About Appliance Noise
INFORMATION ABOUT APPLIANCE NOISE Cooling in refrigerator freezers is made possible by a cooling system that also includes a compressor (and a fan with some appliances), which generates some noise. The level of noise depends on installation, proper use, and age of the appliance. •... - Page 32 en (08-17)
