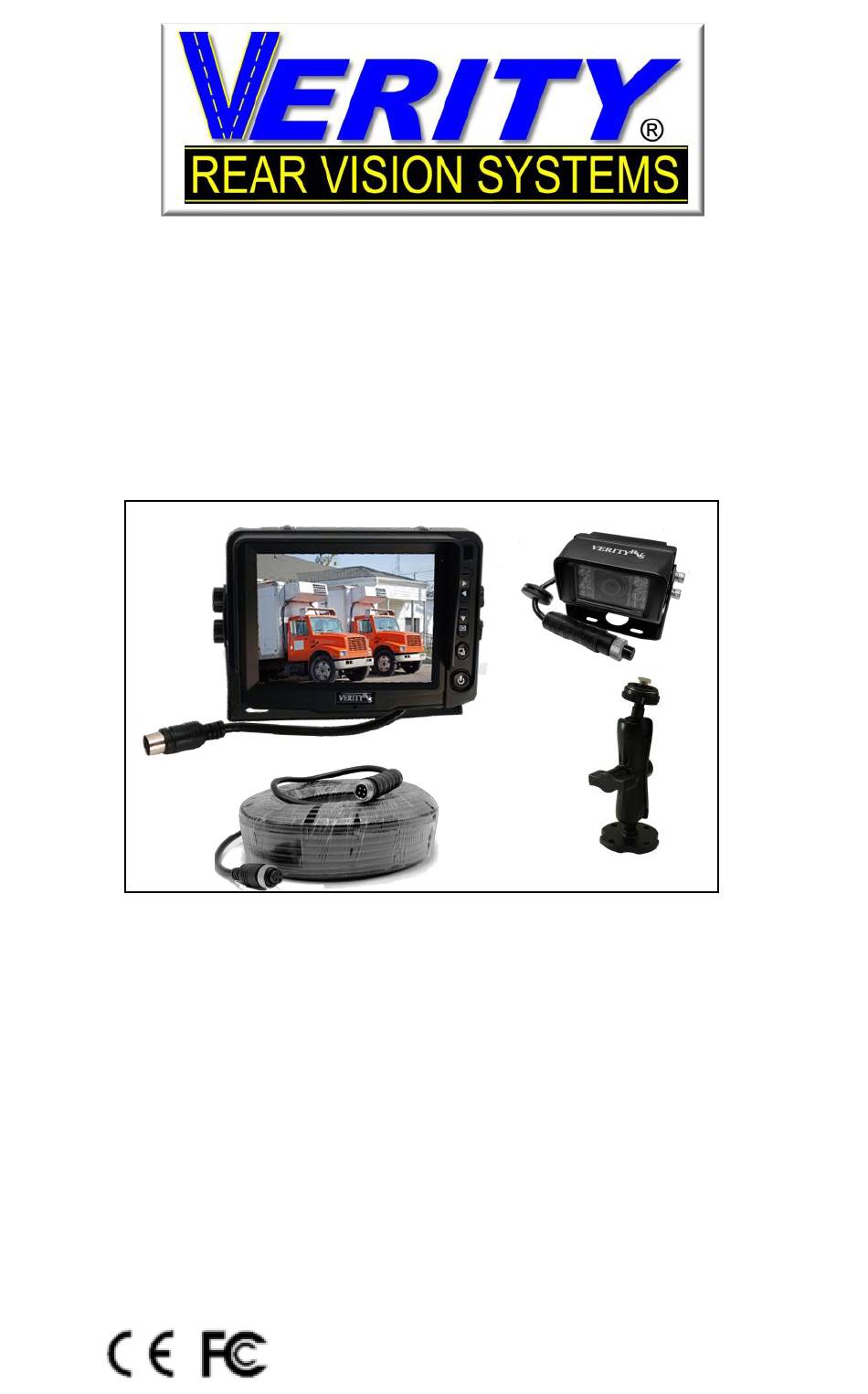

- Page 1 5 INCH DIGITAL MONITOR SYSTEM Part # SM05C Just View It! ® Please read this manual completely before operating the SYSTEM A division of Component Solution Services, LLC. 56600 Twin Branch Dr., Mishawaka, IN 46545 www.verityrvs.com © 2019 Verity Rear Vision Systems...
- Page 2 Component Solution Services LLC., offers the Verity Rear Vision Systems® to meet any requirements and price point within the trucking, specialty vehicles, and RV industry. Verity Rear Vision Systems® is also home to the Supreme View® line of specialty format systems. Our standard cabled systems offer unparalleled features into the trucking and RV industries.
- Page 3 Think safety Read our manual before operating or installing. First Most likely, your system came preinstalled, so the installation section would be for reference. Thank you for your purchase of our Verity Rear Vision Systems®. When installed and used properly, your SM05C is designed to deliver you years of trouble-free operation.
- Page 4 WARNING Do not place heavy objects on cables or cover them with carpet or mats. Do not place cables where they can be crushed in any manner. Our systems are designed as a driving aid. Watching videos, broadcasts, DVDs and/or any images other than intended driving assistance cameras is prohibited.
-
Page 5: System Features
SYSTEM FEATURES MONITOR SPECIFICATIONS Screen size: 5 inch digital screen (16:9) Long Life High Resolution: 800 × 480 Pixel (RGB) System: PAL/NTSC auto per input Contrast: 800:1 Brightness: 500cd/m2 Power supply: DC 12V~32V with reverse polarity protection Operation temperatures: -20~70C Storage temperature: -30~80C 3 AV color coded inputs with color coded trigger wires, auto blue screen if no signal on activated channel Features: HD sunshade, headphone jack, auto light sensor dimming for... -
Page 6: System Components
SYSTEM COMPONENTS 5-Inch Digital Monitor Heavy Duty Mount Panel Infrared Weatherproof Camera 20-Meter Camera Cable 13-pin to Monitor Cable I/F Remote Manual... - Page 7 SYSTEM COMPONENTS This monitor can be mounted on the dash and can be mounted on both horizontal and vertical surfaces. Make sure the view is suitable to the driver to observe the images. Take care not to block any necessary viewing area when mounting. Before mounting the system, permanently hook up all connections to ensure proper operation.
- Page 8 MONITOR / REMOTE OPERATIONS 1. Remote Signal Receiver Window 2. (VOL+) Volume Increase Right Arrow 3. (VOL-) Volume Decrease Left Arrow 4. Down (move down in menu) 5. Menu Control Button 6. (CA1 - CA3) Switches between cameras 7. Power Off/On button Red color is stand-by Green is powered on Monitor will turn on if trigger wire activated...
-
Page 9: Connection Operations
CONNECTION OPERATIONS Verity Rear Vision Systems Wire Connection Key 4-pin camera connectors White -Camera 1 rear (Yellow 4-pin) Blue -Camera 2 right side (Red 4-pin) Brown -Camera 3 left side (Black 4-pin) Red wire to key-on hot (+) 10-32v. DC (fused) Black wire to GND. -
Page 10: Menu Operations
MENU OPERATIONS 1. Picture 2. Image Orientation 3. Image Priorty 4. Trigger Delay 5. Language 6.System Setup The folowing are examples of how the menus work. 1. PICTURE: Brightness, Contrast, Saturation, and Hue displays on screen. Brightness, Contrast, Saturation have a value of 1-100 and Hue has a value of 1-50. - Page 11 MENU OPERATIONS 3. Reverse Priority: The default priority camera is CAM 1 in priority order of Cam 1 ► Cam 2 ►Cam 3. If camera CAM 2 is selected as the priority camera, the order is Cam 2 ► Cam 1► Cam 3. If camera CAM 3 is selected as the priority camera, the order is Cam 3►...
- Page 12 MENU OPERATIONS 5. LANGAUGE The default language is English along with 11 options: English, Chinese, French, Deutsch, Italian, Spanish, Portuguese, Russian, Danish, Polish, and Dutch. CAM 1(N/R) ◄ English ► Language 6. SYSTEM SETTINGS Note: When there is no power to the monitor, the system screen is black. When on, the image will only show on channels that have a camera attached to them.
- Page 13 Verity Rear Vision Systems A division of COMPONENT SOLUTION SERVICES (CSS) LIMITED ONE (1) YEAR WARRANTY 1. CSS products’ warranties are not transferable. The warranties apply to the retail consumer for one (1) year and covers against defects in material and workmanship.
- Page 14 Note: if you are a fire/rescue customer in need of tech support after hours or on weekends, leave a message and a technician will return your call as soon as one becomes available. a division of Component Solution Services 56600 Twin Branch Drive Mishawaka, IN 46545 574-807-6002...
