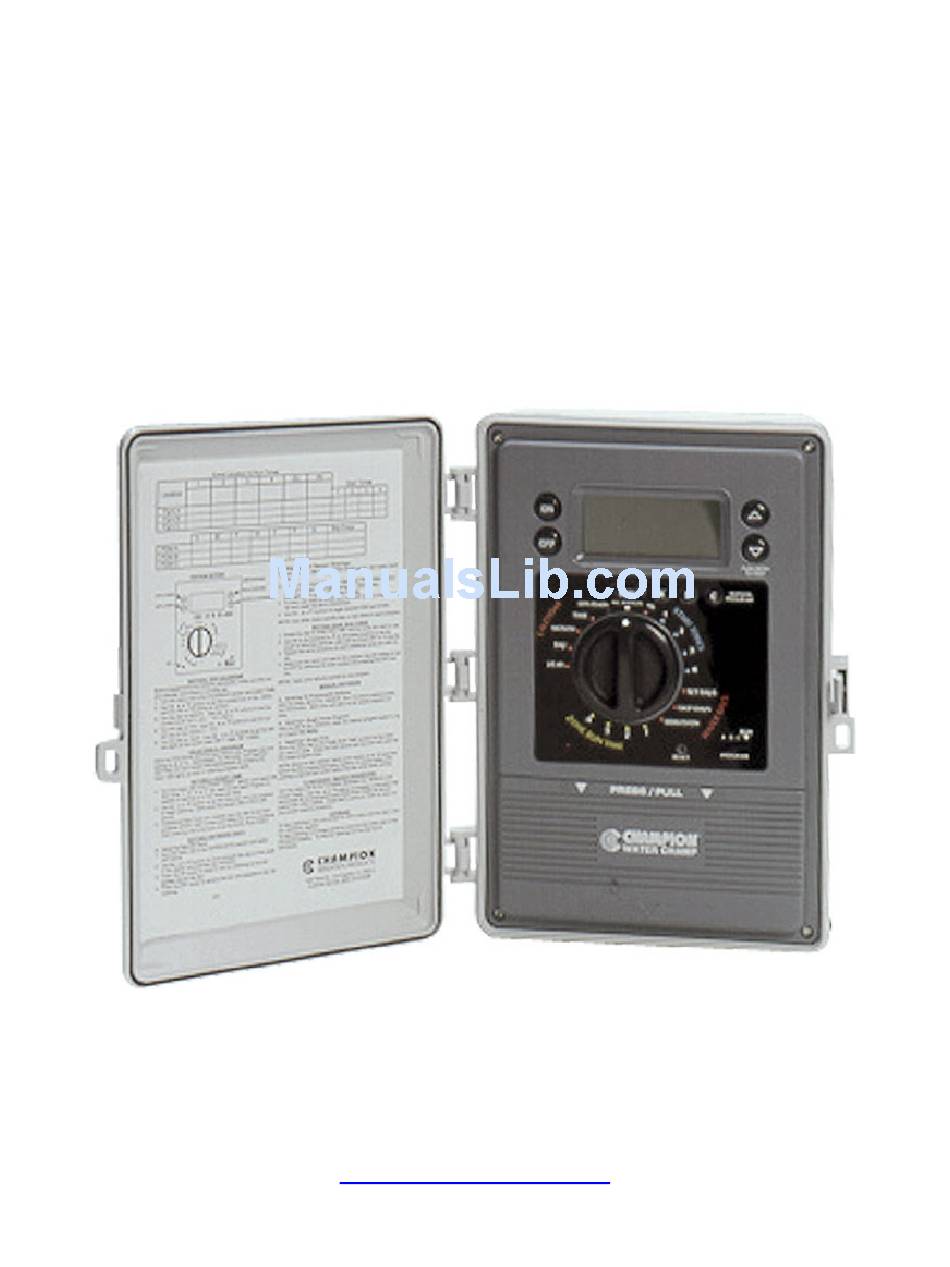

"WATER CHAMP" CONTROLLER
OPERATING INSTRUCTIONS
9-Zone, 12-Zone & 15-Zone
Outdoor / Indoor
Irrigation Controllers
Covering Models:
R-90, R-120, R-150
WC-9INO, WC-12INO, WC-15INO
Champion Irrigation Products
1460 Naud Street Los Angeles, CA 90012
(800) 33-CHAMP
www.championirrigation.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATER CHAMP R-120 and is the answer not in the manual?

Questions and answers

Susan Kools
April 30, 2025

I have everything set up on the controller and am using Program A, zones 1-4. Water source is on and valves are open. Dial is on All/Manual and Program is on Run. Timer is counting down on zones 1-4 and water will not switch off. Does not seem to switch over to program but remains open on all zones. Please tell me what I could be doing wrong. All help is greatly appreciated as I have spent hours and many YouTube videos trying to figure this out! Thank you!

1 comments:
Mr. Anderson
May 16, 2025

Possible causes for the Champion Irrigation Products R-120 controller keeping water running on zones 1–4 without switching off include:

1. A valve that won’t shut off due to needing cleaning or repair.
2. A manually closed flow adjustment screw.
3. Excess water pressure.
4. A shorted solenoid (check resistance; a good solenoid has 15–35 ohms).
5. Wiring issues, such as broken wires or a short between the zone wire and common wire.

Each of these issues can prevent proper valve closure and cause continuous watering.

This answer is automatically generated

Iván Mátyás
April 26, 2025

How to install a new litium battery.The old one is 25 years old, and doesn't work.

Summary of Contents for Champion Irrigation Products WATER CHAMP R-120

  • Page 1 “WATER CHAMP” CONTROLLER OPERATING INSTRUCTIONS 9-Zone, 12-Zone & 15-Zone Outdoor / Indoor Irrigation Controllers Covering Models: R-90, R-120, R-150 WC-9INO, WC-12INO, WC-15INO Champion Irrigation Products 1460 Naud Street Los Angeles, CA 90012 (800) 33-CHAMP www.championirrigation.com...
  • Page 2 Dear Customer, The people at Champion Irrigation Products thank you for purchasing this product. We trust it will give you years of dependable service as it was built to very high standards. It is technologically state-of-the-art, easy to program, and a real value. If you should have any questions please call us at (800) 33-CHAMP [800-332-4267].
  • Page 3: Installation

    INSTALLATION Indoors Locate your controller indoors near a standard 110v AC outlet. The outlet should not be controlled by a switch or share the same circuit with a garage door opener, electric dryer, or other large appliance or inductive motor. The location should be protected from moisture and temperatures exceeding 120 o Fahrenheit. Outdoors Your Water Champ controller includes a weatherproof power cord.
  • Page 4: Programming Controller

    Attach the wire to the right side of the screw, under the clip, or wrap the wire around the screw before tightening. Attach the wire for zone #1 to the zone marked “V1. Attach the remaining zone wires in the same manner. Note: the zone wires come in from the top of the terminal modules.
  • Page 5: Current Calendar Time/Month/Day & Year

    Setting the Current Calendar Time, Month, Day, & Year Start programming your controller by setting the CALENDAR TIME (current time A.M. or P.M., MONTH [01 = Jan., 02 = Feb., and so on], DAY [day of the month], and YEAR [98=1998, 00=2000, and so on]). •...
  • Page 6: Setting Start Times

    Setting Start Times • Turn the rotary dial to START TIMES position 1. Move the PROGRAM switch left to the ‘A’ position. • To set START TIME 1 (factory set/default is set at 5:00 AM, suggested setting: between 4:00 A.M. σ...
  • Page 7: Efficient Run Times

    in the program you are setting. (NOTE: The factory set/default program has each zone set at 10 minutes in Program A. Make sure the run times for the zones you are not using are set to OFF by pressing the OFF button while the rotary dial is pointing to that zone).
  • Page 8: Operating Controller

    The advantage of this 10-second delay is the demand for electrical current does not come on all at the same time if 2 zones or the pump start come on simultaneously. It also allows time to do a visual check of your zones to see if they are watering properly.
  • Page 9: Internal Features

    times can go as short as 10% of one (1) minute (equivalent to six seconds) for nursery application or newly seeded lawns. Zone Test σ and τ By pushing both arrows at the same time, a zone test starts with zone 1 to check if there is a bad zone, a short on the wires, or a faulty solenoid.
  • Page 10: Troubleshooting

    SOLUTIONS TO COMMON PROBLEMS PROBLEM POSSIBLE CAUSES & SOLUTIONS One valve does not Wiring to valve broken. turn on, all others Solenoid faulty - test valve with good work correctly. one. Program set for OFF watering time for that valve. Flow control on valve adjusted to off.
  • Page 11: Program Information

    PROGRAM INFORMATION STATION RUN TIMES STATION LOCATION START TIMES START TIME 1 PGM A PGM B PGM C PGM A PGM B PGM C STATION RUN TIME START START TIME 2 TIME 3 WATERING DAYS START TIME 4 SKIP DAYS...
  • Page 12 Limited 3-year warranty Champion Irrigation Products hereinafter called “Champion” warrants that parts manufactured by it shall be free from defects in material and workmanship, under normal use, and service for a period of 3 years from date of purchase. This three-year period shall be known as the “warranty period.”...
