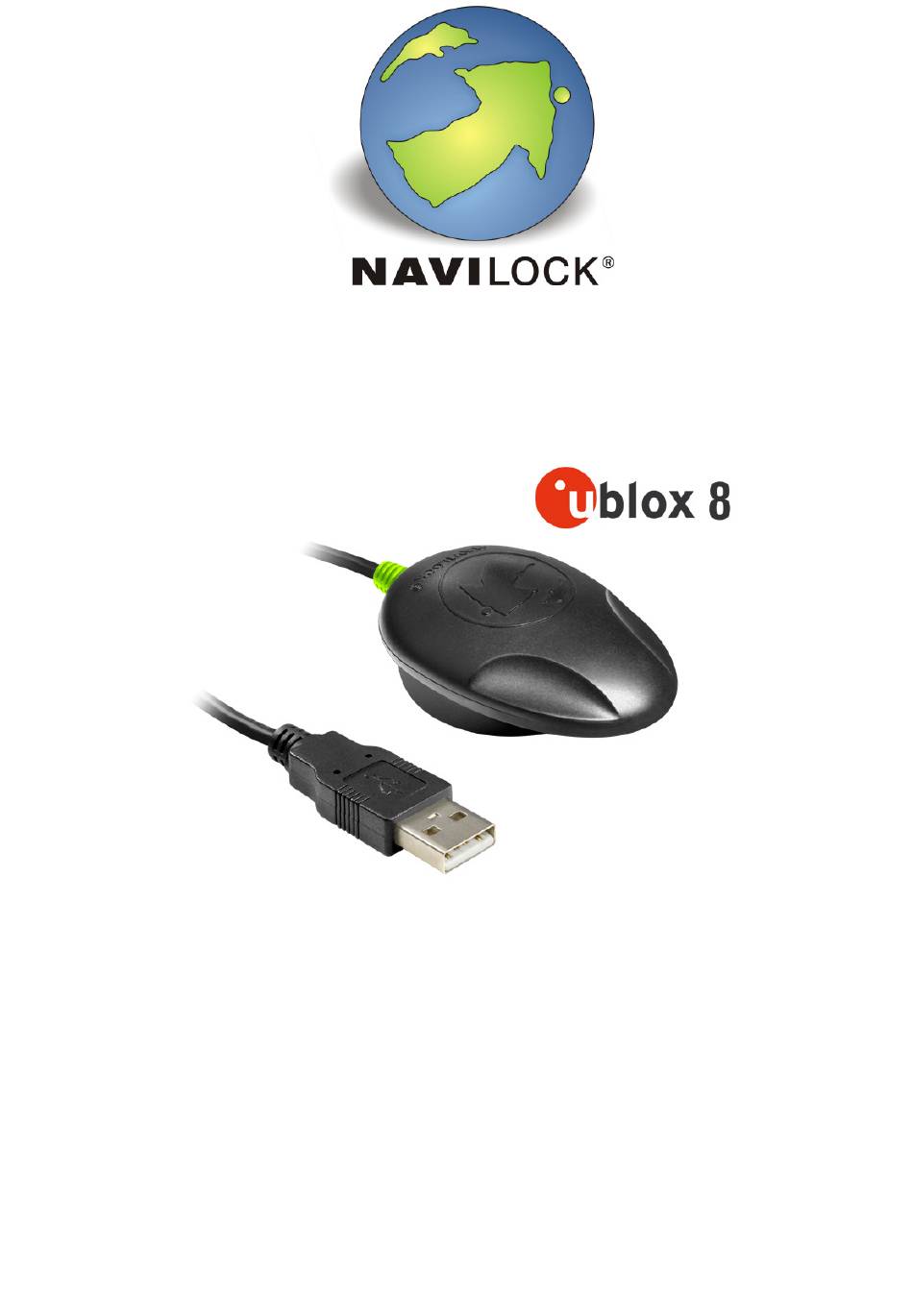

  • Page 1 NL-82002U u-blox NEO-M8U multi GNSS UDR USB receiver 1.50 m operation manual (62756)
  • Page 2 The NL-82002U is a USB GNSS receiver with an internal active antenna. The GNSS receiving is realized using the u-blox NEO-M8U module. In this module, high-sensitivity sensors such as a 3D accelerometer and a 3D gyroscope are also integrated. These sensors enable the acquisition of dynamic three-dimensional motion data.
  • Page 3 Important health and safety information • When using this product, take the following precautions in order to avoid possible damages and legal consequences. Always follow all safety and operation manuals exactly and keep them for future reference. Observe all warnings in the operation manual and on the product. In order to avoid injuries, electrocution, fire and damages to the product, observe the following precautions: •...

  • Page 4: Microsoft Windows

    Plug the USB cable in a free USB port on your notebook etc. The NL-82002U will be recognized by your Windows operating system, which will attempt to install a driver. Abort this process, and load the driver from u-blox https://www.u- blox.com/sites/default/files/ubloxGnss_vcpDeviceDriver_windows_3264_v2.30.exe...

  • Page 5: Led Indicator

    5. Functional test and GNSS system selection with u-center 8.24 in Windows 5.1. Load the u-center software from: https://www.u-blox.com/sites/default/files/ublox-GNSS_u- center_windows_v8.24.zip. Install the software on your unit. Select the version suitable for your system. U-center is a pure test program and cannot be used for navigation or orientation.
  • Page 6 5.2. GNSS selection To select which GNSS you want to use, proceed as follows. View \ Configuration View You can select your GNSS system or your combination of several systems on the right side. The following combinations available: RTCM GNSS SBAS Galileo GLONASS...
  • Page 7 6. EGNOS configuration with u-center 8.24 NL-82002U uses EGNOS as default. In the configuration menu you can check these options. For detailed information please use the documentation from u-blox https://www.u- blox.com/sites/default/files/u-center_UserGuide_%28UBX-13005250%29.pdf.
  • Page 8 Tools\AssistNow Offline\...(u-blox M8) Please use the following server token in the configuration menu: 8cLxZxp_10Wya9h1eU_gBA Further information to the u-center can be found in the u-blox documentation under https://www.u- blox.com/sites/default/files/u-center_UserGuide_%28UBX-13005250%29.pdf. If you have any questions, please contact u-blox directly.
  • Page 9 8. Possible sources of error and their elimination 8.1 The white LED on USB plug A doesn’t light up after the first connection to the USB port. Make sure that the PC or notebook is turned on, and test the USB port, possibly with another USB device.
  • Page 10 9. Specifications Chip set manufacturer/type u-blox NEO-M8U Channels: 72 channels Sensitivity -160 dBm Frequency: GPS: L1, 1575.4200 MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz GLONASS: G1, 1602.5625 ~ 1615.5000 MHz Target precisions: Position horizontal: GPS/SBAS/QZSS+GLONASS and TCXO 2.0 m CEP...

  • Page 11: Warranty Period

    11. Warranty period Your GNSS receiver will be repaired free of charge within the legal warranty period, unless it was damaged due to external cases, humidity dropping or other damages due to improper usage. Your dealer is always ready to help you. Please send your unit for repairs directly to: Navilock Repair Center Beeskowdamm 13/15 D-14167 Berlin-Zehlendorf...

  • Page 12: Conformity Declaration

    Conformity declaration Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products. It is the main purpose of this directive to avoid electric waste products (WEEE), while simultaneously promoting the re-usage, recycling and other forms of reconditioning in order to reduce the amount of waste.
