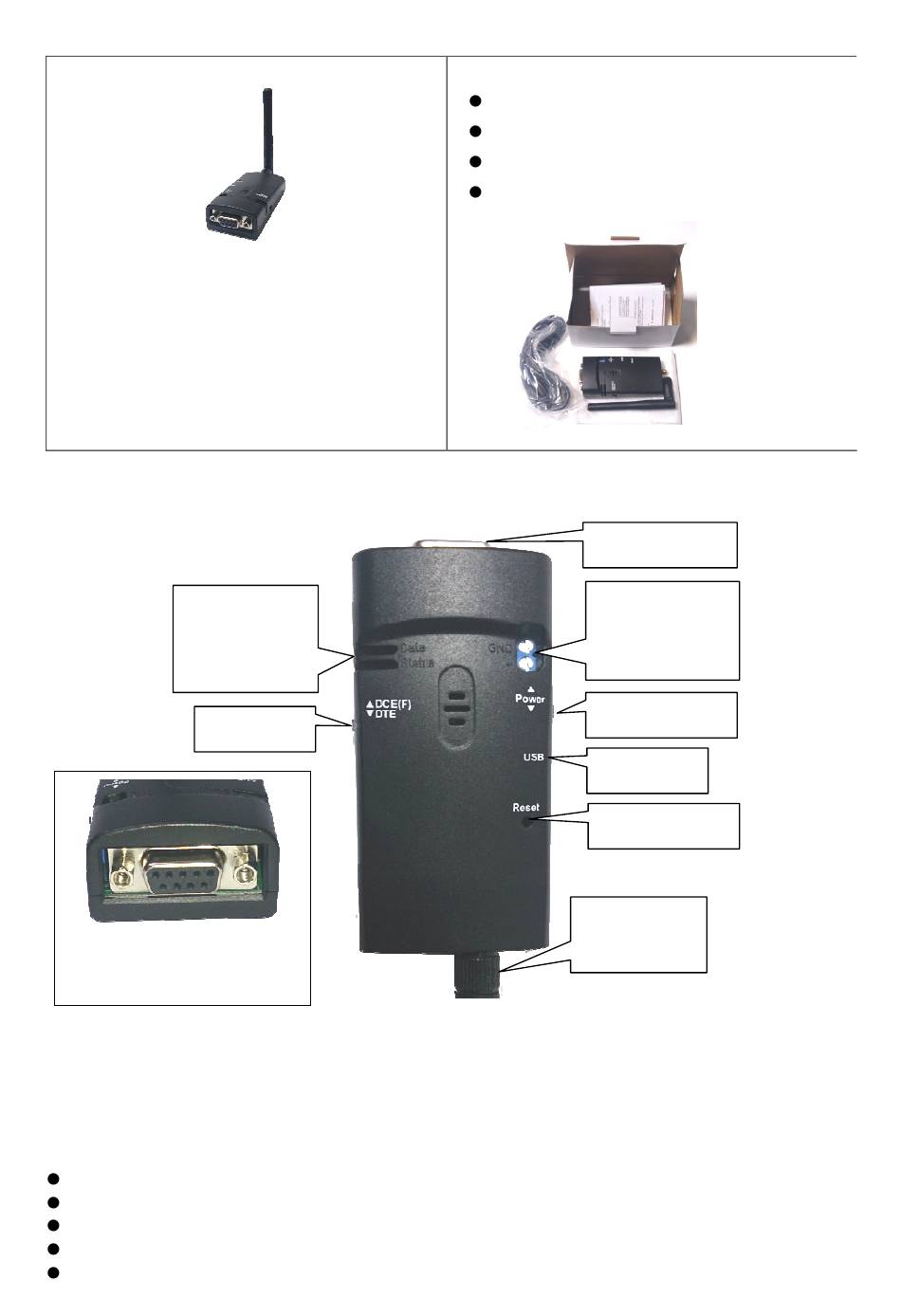

User Manual V1.3
WiFi to RS-232 adapter
White Box Dimension: 11 x 6 x 5 (cm)
Total Package Weight: 126 g
1. Product profile: Female DB9 connector with nut (The nut can be removed if necessary.)
DB9 Female connector
with screw nut
2. Start to use the adapter
2.1 Please fasten the external antenna to the adapter.
2.2 There're three power inputs, mini USB, pin9 of DB9 or blue 2 ports block terminal. Please select
one way to power the adapter. The max. voltage is 27 VDC input for all sources.
2.3 COM port default setting:
Baud rate: x, 9,600 bps
Data bit: 8
Parity: none
Stop bit: 1
Flow control: none
WiFi to RS-232 adapter user manual
LED:
Data:
Red
Status:
Blue
DCE/DTE
Package Contents:
WiFi RS-232 adapter x 1
2 dBi dipole antenna x 1
A4 User manual x 1
USB Cable x 1
DB9 (Female)
5 ~27VDC
GND
+
Power switch
Mini USB
Reset switch
2 dBi dipole
antenna
1
Date: 2017.06.03
Advertisement
Table of Contents
Summary of Contents for Uconnect WA-232E
- Page 1 User Manual V1.3 Date: 2017.06.03 WiFi to RS-232 adapter user manual WiFi to RS-232 adapter Package Contents: WiFi RS-232 adapter x 1 2 dBi dipole antenna x 1 A4 User manual x 1 USB Cable x 1 White Box Dimension: 11 x 6 x 5 (cm) Total Package Weight: 126 g 1.
- Page 2 User Manual V1.3 Date: 2017.06.03 2.4 Network default setting: Simple AP and support DHCP SSID: Serial2WiFi_ab_cd (ab or cd means the last 4 code of the Mac. address) No Security IP: 192.168.0.3 Socket port: 5000 Channel: 11 Log in ID: admin Log in password: admin 2.5 Power switch: mini USB side by default.
- Page 3 User Manual V1.3 Date: 2017.06.03 Network setting Serial port setting WiFi setting DHCP Server Setting 3.3 RS-232: Step1: Connect the adapter via WiFi and connect the RS-232 connector Step2: Execute COM port tool software Step3: Set baud rate: 115200 bps Step4: Key in “+++”...
- Page 4 User Manual V1.3 Date: 2017.06.03 Please disable Flow Control function. Drag the device to the Virtual COM ports 5. LED indication: 5.1 Red: Power On or Off 5.2 Blue: Wifi Status 6. Reset button: Press the “Reset” button over 5 seconds, the WiFi adapter will reset to default value. The LEDs will be off for some time and then reboot to the default value.
- Page 5 User Manual V1.3 Date: 2017.06.03 7.2 Signals: Signal DTE Direction DCE Direction Description Output Input Not connected Input Output Transmitted data Output Input Received data Output Input Contact manufacturer to set this Signal ground Input Output Contact manufacturer to set this Output Input Clear to send...
- Page 6 User Manual V1.3 Date: 2017.06.03 INDEX = Index of bss scan table, maximum 24 BSSs supported Usage: wifi_on Usage: wifi_off Usage: wifi_channel <CHANNEL> CHANNEL = 1 ~ 13 Usage: wifi_ssid <SSID> SSID = 1 ~ 32 ASCII characters Usage: wifi_enc <ENC_MODE> ENC_MODE = 0(OPEN) 1(WEP)(AP mode not support) 2(WPA2_AES_PSK)
- Page 7 User Manual V1.3 Date: 2017.06.03 4: GMT-8.0 Los Angeles, Tijuana 5: GMT-7.0 Denver Arizona 6: GMT-6.0 Chicago, Mexico City 7: GMT-5.0 New York, Bogota 8: GMT-4.0 Santiago 9: GMT-3.0 Brasilia, Montevideo 10: GMT-2.0 Fernando de Noronha 11: GMT-1.0 Azores 12: GMT+0.0 Lisbon, London 13: GMT+1.0 Berlin, Paris 14: GMT+2.0 Helsinki, Cairo 15: GMT+3.0 Moscow, Nairobi...
- Page 8 User Manual V1.3 Date: 2017.06.03 Usage: jtagoff <status> <status>: 0: enable 1: disable Usage: getotaname Usage: countryid <id> <id>: 0=World wide 13(2G_WORLD: 1~13) 1=Europe(2G_ETSI1: 1~13) 2=Japan(2G_MKK1: 1~14) 20=United States(2G_FCC2: 1~13) Otherwise=Unavailable Usage: dhcpsrv <start addr> <end addr> <lease> Usage: transmitimer <time> <time>: time in ms, available value range is 10~65535 ms Usage: dhcpstbl Usage: scpincode <status>...
