Summary of Contents for PCB Piezotronics 422E52

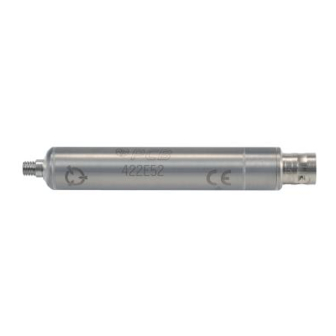

- Page 1 Model 422E52 In-Line Charge Converter Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
- Page 4 Operating Instructions 422E5X Series 1.0 INTRODUCTION During operation, the electrical charge from the transducer is transferred to the The 422E5X series charge amplifiers feedback capacitor, resulting in a voltage convert the high impedance charge given by the following equation: signal from a charge mode transducer to a low impedance voltage signal.
-
Page 5: Installation
3.0 INSTALLATION This symbol on the unit Connect the 422E5X to the transducer indicates that the user with low noise cable (003 type only). should refer to the Standard coaxial cable may be used operating instructions between the amplifier and power unit, located in the manual. -
Page 6: Maintenance And Repair
6.0 MAINTENANCE AND REPAIR The 422E5X charge amplifier is hermetically sealed, and requires no maintenance. If the connectors become dirty, clean with lint-free wipes dampened with isopropyl alcohol. For extremely dirty or humid environments, the cable connections can be protected with low temperature heat shrink tubing. - Page 7 Model Number Revision: D IN-LINE CHARGE CONVERTER 422E52 ECN #: 37900 Performance ENGLISH OPTIONAL VERSIONS Sensitivity(± 2.5 %)(Charge Conversion) 10 mV/pC 10 mV/pC Optional versions have identical specifications and accessories as listed for the standard model except where noted below. More than one option may be used.
