Before you start

Connection

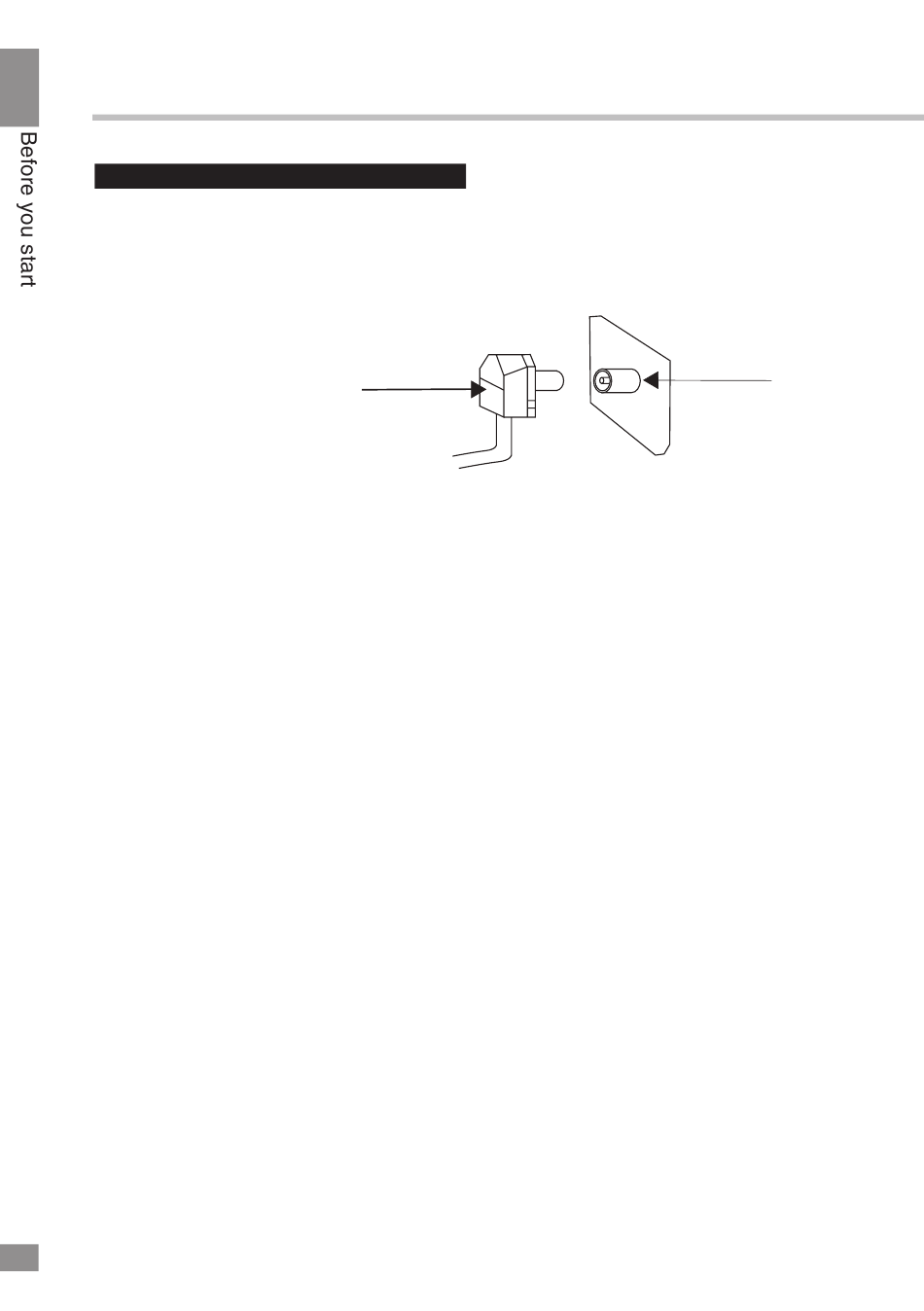

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the cabinet.

Other connections

• Connect the video source to the AV IN
input using an RCA cable.
• Plug the power cable in the electric outlet,
making sure the current voltage is supported.
• If the video source has a HDMI output
jack, you can connect the signal to the monitor
by the HDMI cable (not included).
4
5
Antenna cable connector
75 Ohm co-axis cable
• SPDIF coaxial output is intended for
transmitting multi-channel sound to an
external decoder (e.g. in 5.1-CH format).
Coaxial audio cable should be used for
connection (not included).
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
• PCMCIA slot is used for CI modules that
are obtained from your digital TV provider.
TVRF antenna jack
