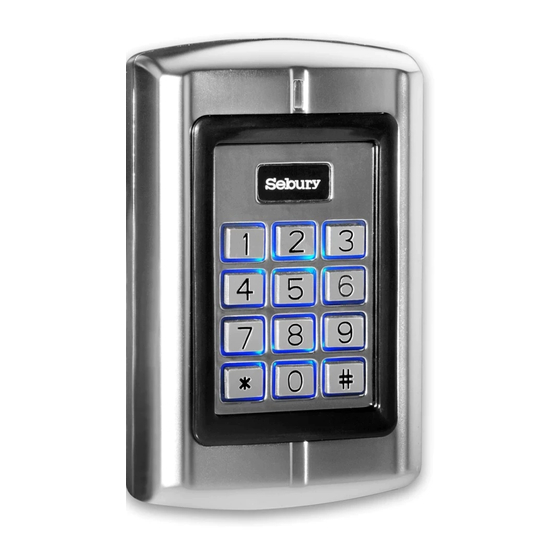

B6K2 Standalone Access Controller User Manual V1.0
B6 Plus
USER MANUAL
V1.0
http://www.netdigital.com.au
NetDigital Security
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B6 Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sebury B6 Plus

  • Page 1 B6K2 Standalone Access Controller User Manual V1.0 B6 Plus USER MANUAL V1.0 http://www.netdigital.com.au NetDigital Security...

  • Page 2: Table Of Contents

    B6K2 Standalone Access Controller User Manual V1.0 Content 1 Overview ..................................4 1.1 Introduction ................................4 1.2 Function features ..............................4 1.3 Functional unit ..............................4 1.4 Technical parameters ............................5 1.5 Applicable models ............................... 5 2 Installation, wiring and debugging ..........................5 2.1 Installation ................................
  • Page 3 B6K2 Standalone Access Controller User Manual V1.0 4.1.22 Set key backlit mode ..........................21 4.1.23 Adjust brightness of key backlit ......................21 4.1.24 Set buzzer mode ............................21 4.1.25 Adjust key volume ............................ 21 4.1.26 Set the # key whether it can be used doorbell key ................21 4.1.27 Set doorbell key mode ..........................

  • Page 4: Overview

    B6K2 Standalone Access Controller User Manual V1.0 1 Overview 1.1 Introduction This series of products are using the new 32-bit microcontroller ARM core design with powerful functions. They are very stable and reliable. It’s a new generation of multi-function access controller, includes Reader mode, Single-door mode, Double-doors mode, Interlock mode, Demo mode etc.

  • Page 5: Technical Parameters

    B6K2 Standalone Access Controller User Manual V1.0 1.4 Technical parameters ➢ Working Voltage: AC/DC10-28V ➢ Standby current: ≤35mA(Input DC12V) ➢ Operating current: ≤100mA(Input DC12V) ➢ Working temperature: -40～60℃ ➢ Working humidity: 0～95% ➢ Lock signal relay contact current: ≤1A ➢ Alarm (or doorbell) signal MOS tube output current: ≤1A ➢...

  • Page 6: Wiring

    B6K2 Standalone Access Controller User Manual V1.0 2.2 Wiring According to the selected wiring diagram, cut the lead wire to the right length and cut off the excess thread, through the wall or in the embedded box, connect the system line with the wiring diagram. Be careful not to connect the wrong or short circuit, otherwise it may burn the machine.
  • Page 7 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...
  • Page 8 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...
  • Page 9 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...
  • Page 10 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...
  • Page 11 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...
  • Page 12 B6K2 Standalone Access Controller User Manual V1.0 http://www.netdigital.com.au NetDigital Security...

  • Page 13: Debugging

    B6K2 Standalone Access Controller User Manual V1.0 2.3 Debugging After power on, conduct the test according to Getting Started till you can open door by reading card, input PIN or exit button. 3 Getting Started Writing Conventions: Keypad operation only can be used between “0123456789*#” these12 buttons ➢...

  • Page 14: Enter Management Menu Operation Mode

    B6K2 Standalone Access Controller User Manual V1.0 The first unlock zone Green The second unlock zone Blue Alarm Red quick flash Alarm Sound 3.1 Enter management menu operation mode * (Hold on for more than 2 seconds), (Input admin password) # Note: Admin password is a 6 digits number, 888888 is the factory default admin password.

  • Page 15: Exit Management Menu Operation Mode

    B6K2 Standalone Access Controller User Manual V1.0 User PIN status. 3.7 Exit Management menu operation mode In Management menu operation mode, press * more than once until the indicator light turn to red and always bright means exit Management menu operation mode. 3.8 User open door When the indicator light is red and always bright, read card, or (input user PIN) #, or press exit button.

  • Page 16: Set Or Delete Super-Open-Password

    B6K2 Standalone Access Controller User Manual V1.0 Note: New Admin Password must be 6 digits 4.1.2 Set or delete Super-open-password 00,( 8 digits ) #, set Super-open-password 00,0000 #, delete Super-open-password Note: these functions are available under the First and second zone management menu. First and second zone Super-open- password must not be the same, otherwise only open the door of first zone.

  • Page 17: Limits Types Of Reading Card

    B6K2 Standalone Access Controller User Manual V1.0 The zone 1 valid menus for Double-doors mode are: 00-04,09,10-12,20-22,30-36,40-45,50-57. The zone 2 valid menus for Double-doors mode are: 00,01,02,10-12,21,22,30-36. The valid menus for Demo mode are: 03,09,32,34,51-53,55. 4.1.6 Limits types of reading card 04, 0#, cannot read any card.

  • Page 18: Delete User

    B6K2 Standalone Access Controller User Manual V1.0 11, (ID) # 8# (8-digit format card number) #, (ID) # 8# (8-digit format card number) #, … Specify ID number and input 10-digit format card number to add user: 11, (ID) # 10# (10-digit format card number) #, (ID) # 10# (10-digit format card number) #, … Specified ID number and input 4-6 digits PIN to add user: 11, (ID) # (User PIN) #, (ID) # (User PIN) #, …...

  • Page 19: Set Lock Working Mode

    B6K2 Standalone Access Controller User Manual V1.0 31, (2-10)#, read 2~10 cards in turn to open door(The open door method must set to: open door by card). 4.1.12 Set lock working mode 32, 0#, default value, set lock to Delay mode. After an unlock operation, the lock is opened , then the lock will be closed automatically after a few moment of delay.

  • Page 20: Set Anti-Dismantle Alarm Function

    B6K2 Standalone Access Controller User Manual V1.0 4.1.17 Set Anti-dismantle alarm function 41, 0#, default value, disable Anti-dismantle alarm function. 41, 1#, enable Anti-dismantle alarm function. Note: When the machine is illegally dismantled, it alarms and an alarm signal will be send out at the same time. The alarm can be canceled by inputting Admin Password, read admin card or user card.

  • Page 21: Set Key Backlit Mode

    B6K2 Standalone Access Controller User Manual V1.0 controller will beep twice. 4.1.22 Set key backlit mode 52, 0#, Normal-off mode for key backlit. 52, 1#, default value, Normal-on mode for key backlit. 52, (2-99) #, Automatic mode for key backlit, turn to micro light over 2-99s. 4.1.23 Adjust brightness of key backlit 53, 1, 1, ...

  • Page 22: Set Doorbell Key Mode

    B6K2 Standalone Access Controller User Manual V1.0 4.1.27 Set doorbell key mode 57. 0#, default value, the doorbell key is invalid. 57, 1#, the doorbell key is valid, but without volume. 57, 2#, the doorbell key is valid, with “ding dong” tone Note: When the doorbell key is valid, if a special doorbell decoder for our company be used with it, then the relay will connect after press the doorbell key, the relay will release after loosen the doorbell key.

  • Page 23: Admin Card Or Pin Operation

    B6K2 Standalone Access Controller User Manual V1.0 4.1.28.4 Set wiegand output parity format for reading card 63, 0# wiegand output without parity check. 63, 1# default value, wiegand output with parity check (EO format) Note: EO format is standard wiegand format. Even check data add in front and Odd check data add in the end. 4.1.28.5 Set wiegand output format for pressing key 64, 0#, default value, single key output, 4 bits wiegand data(no check bit).

  • Page 24: Set-Card Operation

    B6K2 Standalone Access Controller User Manual V1.0 only admin card operation in the zone 1, admin card operation in the zone 2 is same. 4.2.1 Set-card operation The main function of Set-card is to replace the input Admin Password into the management menu operation. It is suitable for forgetting the Admin Password or frequently entering the management menu operation.

  • Page 25: Authorization-Card Operation

    B6K2 Standalone Access Controller User Manual V1.0 4.2.7 Authorization-card operation Read Authorization-card once, two short beeps, limit users. Read Authorization-card again, one long beep, release limit. Note: Authorization-card is also called header card, it authorizes users. By default, users can operate properly, you can use an Authorization-card when you need to restrict user access.

  • Page 26: Other Operations

    B6K2 Standalone Access Controller User Manual V1.0 Exit operation: Press exit button Note: In addition to the exit operation, make sure that the machine is not in a disable user state. You must first set up good way to open the door, open the door by multi-card also needs to set a good quantity of card. If card or PIN is valid, a long “beep”, the lock will be opened.

  • Page 27: Operation Characteristics In Single-Door Mode

    B6K2 Standalone Access Controller User Manual V1.0 BEEP: Buzzer control wire, Buzzer keep sounds when low level. When LED_G & LED_R turns to low level together, the LED indicator light will turn to orange(LED indicator light mode is 0),Green(LED indicator light mode is 1) or red ( LED indicator light mode is 2) . 4.5.2 Operation characteristics in Single-door mode The default mode is Single-door mode, most applications work in this mode, in this mode, cannot operate the menu 60-64, also cannot enter the second operation zone.
  • Page 28 B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Reader mode Single-door mode Double-doors mode Interlock mode Demo mode Cannot read card Only read EM card Only read HID card...

  • Page 29: Single-Door Mode Management Menu Summary Table

    B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value The doorbell key is invalid. The doorbell key is valid, but without volume.
  • Page 30 B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Delete 3 Set-cards. Delete 3 Add-cards. Delete 3 Delete-cards. Delete 3 Super-open-cards.
  • Page 31 B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value Input ID number to delete user. (ID)#, (ID)#, … Open door way by card Open door way by card and PIN Open door way by card or PIN...

  • Page 32: Double-Doors Mode Management Menu Summary Table

    B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Menu Parameter or operation step Function Default value 2,2,…,# Increase the brightness of the backlit Disable the buzzer Enable the buzzer 1,1,…,# Decrease the keypad tone...

  • Page 33: Interlock Mode Management Menu Summary Table

    B6K2 Standalone Access Controller User Manual V1.0 Way to enter menu : * (Hold down for more than 2 seconds), 2(Admin password) # Menu Parameter or operation step Function Default value 10#(10-digit format card number)#,10#(10-digit Input 10-digit format card number to add users.

  • Page 34: Demo Mode Management Menu Summary Table

    B6K2 Standalone Access Controller User Manual V1.0 5.5 Demo mode management menu summary table Way to enter menu : * (Hold down for more than 2 seconds), (Admin password) # Default Menu Parameter or operation step Function value Reader mode Single-door mode Double-doors mode Interlock mode...

  • Page 35: Common Troubleshooting

    B6K2 Standalone Access Controller User Manual V1.0 7 Common troubleshooting Possible causes Troubleshooting Fault phenomenon 1. The power line is too thin, or the use of no pure copper wire, resulting in voltage Replace thicker, qualified wire is too low. Indicator light is not working 2.
