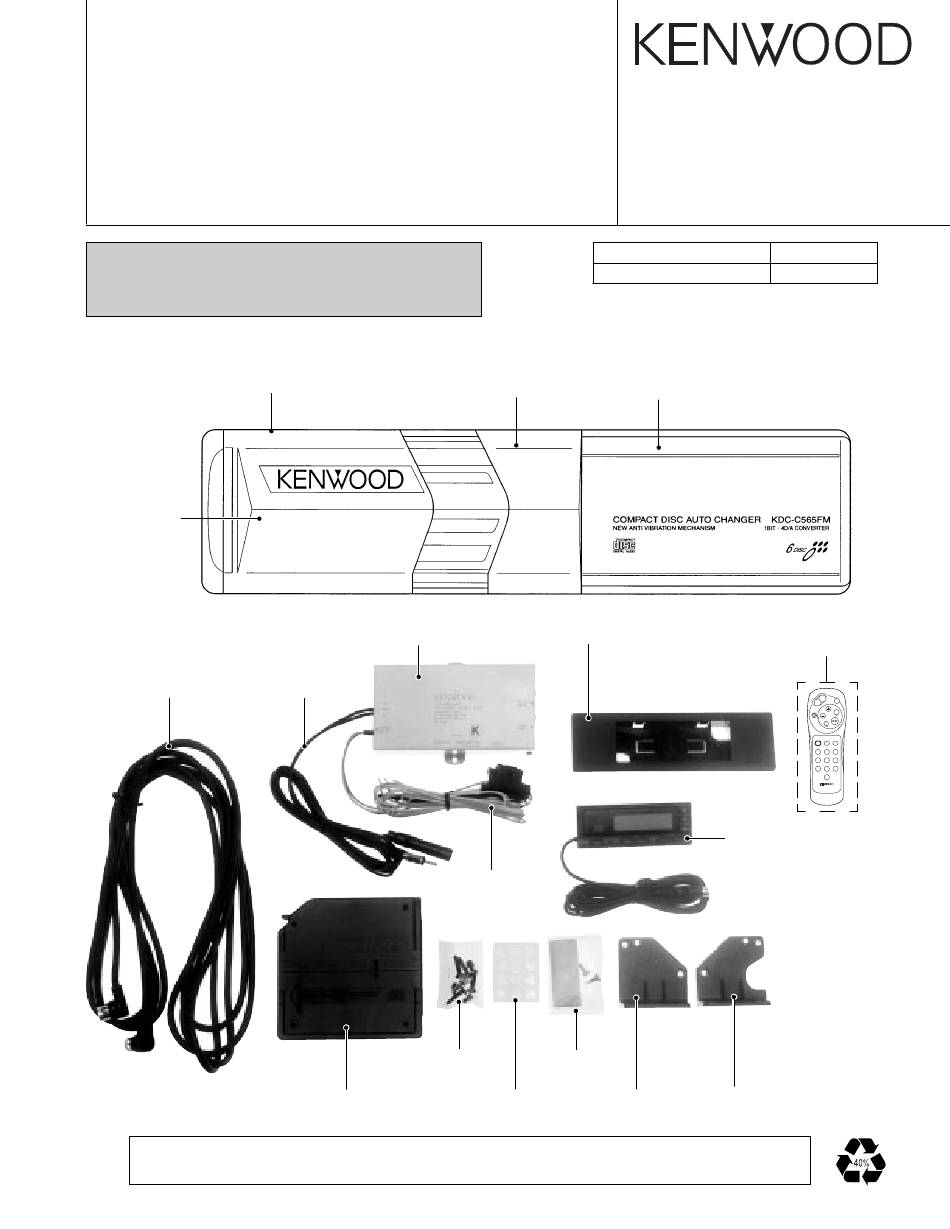

CD AUTO CHANGER
KDC-C565FM
SERVICE MANUAL
When transporting these models, always attach CAUTION CARD
and STEPPED SCREW (for transportation).
CAUTION CARD
STEPPED SCREW :N09–4186–25
Photo is KDC-C565FM
Metallic cabinet
(A01-2654-01)
Dressing panel
(A21-3531-02)
Cord with plug
Antenna cord assy
(E30-4138-05)
(E30-4310-08)
The MECHANISM OPERATION DESCRIPTION is same as model KDC-C660.
Please refer to the service manual of model KDC-C660 (B51-7105-00).
C465FM
:B58–1275–04
∗
Case
(A01-2723-08)
DC cord assy
(E30-4733-08)
Screw set
(N99-1645-15)
Holder assy (MAGAZINE)
(J19-4687-32)
©
1999-12 PRINTED IN JAPAN
B51-7560-00(S) 3124
Service jig
For initial position setting
Panel
Dressing panel
(A64-2004-01):C565FM
(A21-3533-02)
(A64-2005-01):C465FM
Holder assy
(B07-2138-08)
Magic tape assy
(W01-0763-08)
Bracket (L)
Blind Plate
(J19-4713-13)
(F19-1303-04)
Parts No.
W05-0635-00
*KDC-C565 only
Remote controller assy
(A70-0896-05)
T.
UP
T.
PWR
DN
DISC
REPEAT
DISC
REPEAT
D.SCAN
T.SCAN
M.RDM
1
2
3
4
5
6
7
8
9
0
REMOTE CONTROL UNIT
RC-503
Display unit assy
(T95-0247-08):C565FM
(T95-0248-08):C465FM
Bracket (R)
(J19-4715-13)
