PIR Motion Sensor Camera
VST-892

Introduction

VST-892 is a passive infrared (PIR) motion sensor camera. It is capable of sending wireless signals and captured images
(picture quality of up to 640 x 480 pixels) to the Control Panel upon movement detection.
The PIR Camera is designed to give a typical detection range of 10 meters when mounted at 2.3-2.5 meters above
ground. For pet-immune models, they will not detect the pets up to 50cm/20kg when mounted at 2.3-2.5 meters above
ground. For models that are compatible with repeaters/routers (P5 models only), the RF communication range can be
further extended into hard-to-reach areas.
VST-892 is designed with the digital proximity detector. The anti-masking feature allows for detection of any attempts to
blind the detector by placing objects in its field of view.
The PIR Camera consists of a two-part design made up of a cover and a base. The cover contains all the electronics and
optics and the base provides a means of fixing. The base has knockouts to allow mounting on either a flat surface or in a
corner situation with a triangular bracket for corner mounting.
The VST-892 Series includes the following models:
VST-892 – PIR motion sensor camera with flash LED
VST-892-IL – PIR motion sensor camera with Infrared LED

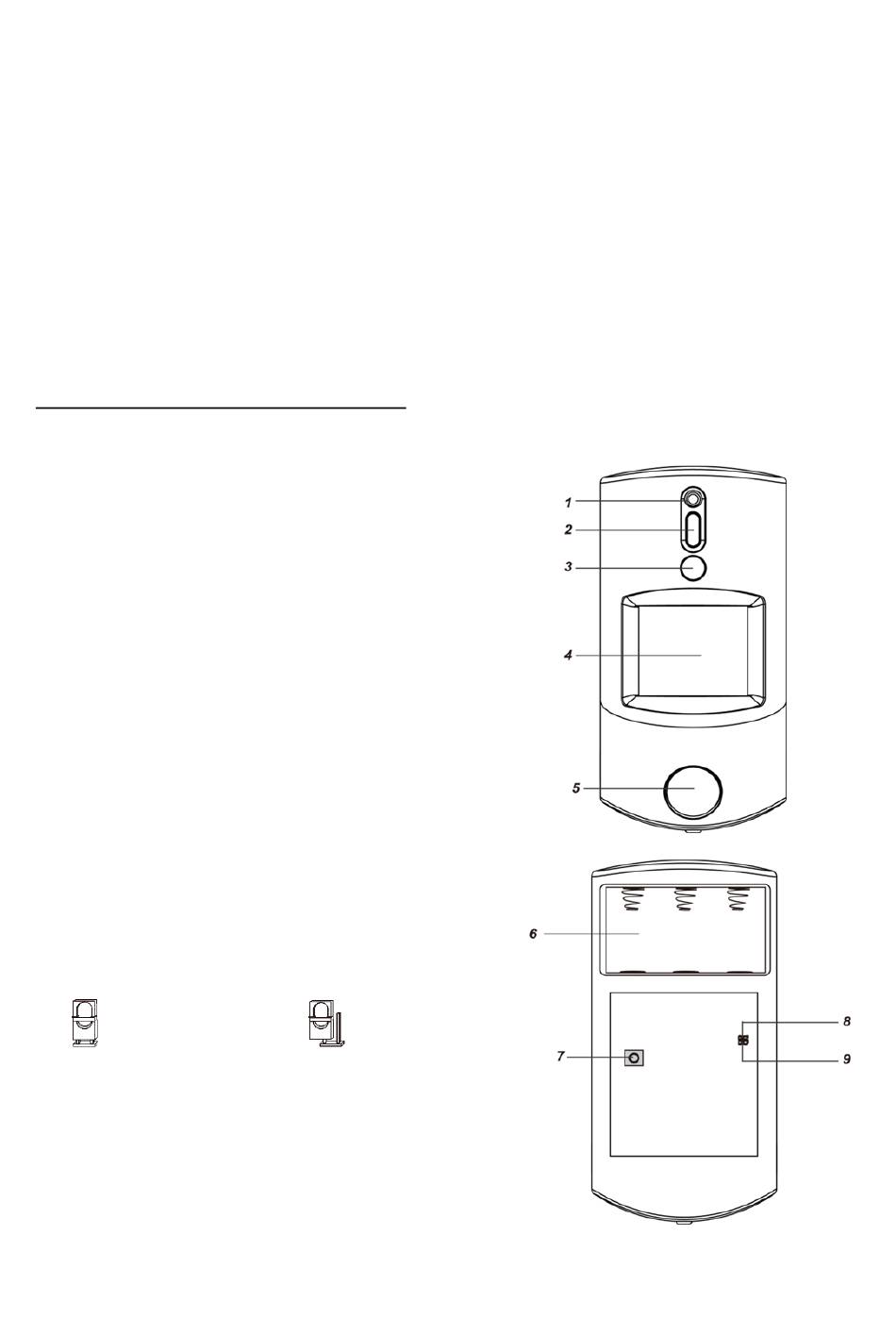

Parts Identification

1. Flash LED/Infrared LED
The Flash LED (For VST-892) or Infrared LED (For VST-892-IL)
delivers sufficient light for image capture under low lighting condition.
2. Blue LED/Function Button
Blue LED:
(Please refer to LED Indicator description below for details)
Function Button Usage:
- Press and hold the button for 3 seconds to send a learn code, release
when Blue LED light on.
- Press the button once to enter test mode for 3 minutes.
- Press the button once to send a learn code to the repeater/router. (P5
models only)
3. Digital Proximity Detector
The digital proximity detector is used to detect any masking (blocking) attempt
by an intruder.
4. IR Sensor
5. PIR Camera Lens
6. Battery Compartment
7. Tamper Switch
8. Pet Immunity Enable/Disable Jumper Switch (JP3)
Jumper On
The jumper link is inserted
connecting the two pins
When set as ON, Pet Immunity is disabled.
When set as OFF, Pet Immunity is enabled. (Factory default)
9. Sensitivity Increaser Jumper Switch (JP4)
When set as ON, the PIR's detection sensitivity is high.
When set as OFF, the PIR's detection sensitivity is in normal level.
(Factory default)
Jumper Off
If the jumper link is removed or
"parked" on one pin.
1
