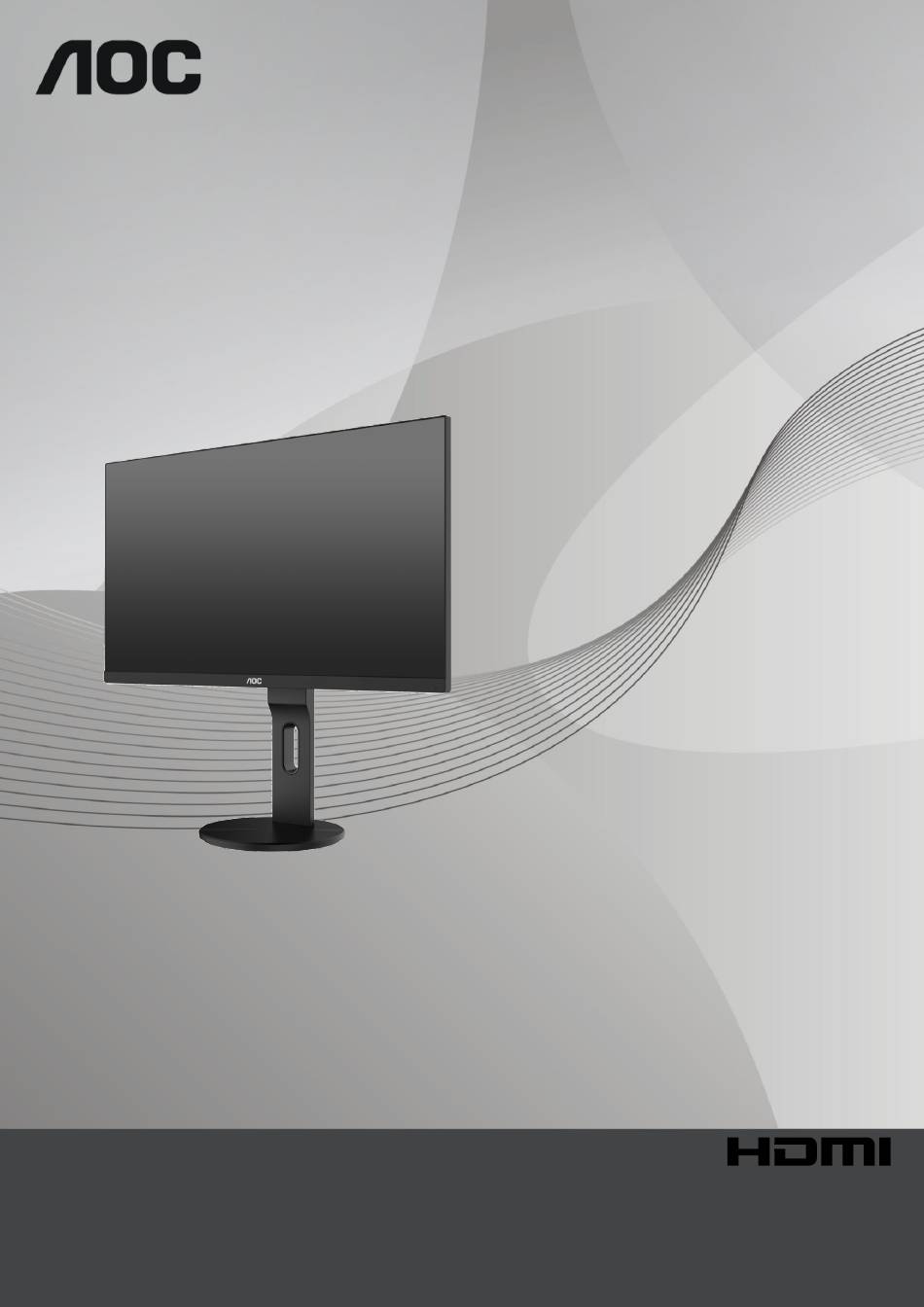

- Page 1 LCD Monitor User Manual Q2790PQE LED backlight www.aoc.com ©2019 AOC. All Rights Reserved.
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Adjusting ..................................... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
DP Cable VGA Cable USB Cable Audio Cable Not all signal cables (HDMI / DP / VGA / USB /Audio cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle. -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. HDMI 1 3. HDMI 2 4. DP 5. Analog (D-Sub 15-Pin VGA cable) 6. Earphone out 7. USB upstream 8. USB fast charging 9. USB Connect to PC 1. -
Page 12: Adjusting
Adjusting Hotkeys Source/Auto/Exit Clear Vision Image ratio / Volume Menu/Enter/ Power Up/Source/Auto/Exit When the OSD is closed, press “up” button will be Source hot key function. When the OSD is closed, press “up” button continuously about 2 second to do auto configure (Only for the models with D-Sub). Image Ratio/Volume/Right When there is no OSD, press the “right”... - Page 13 Clear Vision 1. When there is no OSD, Press the “ ” button to activate Clear Vision. 2. Use the “ ” or “ ” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. Clear Vision 3.
-
Page 14: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup Extra Exit Image Setup Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive 1). Press the MENU-button to activate the OSD window. 2). Press Left or Right to navigate through the functions. Once the desired function is highlighted, press the MENU- button to activate it, press Left or Right to navigate through the sub-menu functions. -
Page 15: Luminance
Luminance Luminance Color Setup Picture Boost OSD Setup Extra Exit Image Setup Contrast Gamma Gamma 1 Brightness Eco mode Standard Overdrive Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco mode Movie... -
Page 16: Image Setup
Image Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Image Setup Clock H. Position Phase V. Position Sharpness Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Adjust Picture Phase to reduce Horizontal-Line Phase 0-100 noise. Sharpness 0-100 Adjust picture sharpness. -
Page 17: Color Setup
Color Setup Color Setup Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Temp. Warm LowBlue Mode DCB Mode Green DCB Demo Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. Color Temp. -
Page 18: Picture Boost
Picture Boost Picture Boost OSD Setup Extra Exit Luminance Image Setup Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame on or off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast... -
Page 19: Osd Setup
OSD Setup Extra Exit Luminance Image Setup OSD Setup Color Setup Picture Boost Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2 support FreeSync DP Capability 1.1/1.2 function... -
Page 20: Extra
Extra Extra Exit Luminance Picture Boost OSD Setup Image Setup Color Setup Input Select Auto Image Ratio Wide Resolution : 1920(H)X1080(V) Auto Config. DDC/CI H. Frequency : 67KHz Off Timer Reset V. Frequency : 60Hz Auto/D-SUB/HDMI1/HDMI2/ Input Select Select input signal source. Auto Config. -
Page 21: Exit
Exit Luminance Picture Boost OSD Setup Image Setup Color Setup Extra Exit Exit Exit the main OSD LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 22: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 23: Specification
Specification General Specification Model name Q2790PQE Driving system TFT Color LCD Viewable Image Size 68.6cm diagonal Panel Pixel pitch 0.2331mm(H) x 0.2331mm(V) Separate Sync. H/V TTL Display Color 16.7M Colors Horizontal scan range 30~99KHz Horizontal scan Size(Maximum) 596.736mm Vertical scan range... -
Page 24: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 MAC MODES VGA 640x480@67Hz 66.667 IBM MODE 720x400@70Hz 31.469 70.087 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 MAC MIDE SVGA 835 x 624@75Hz 49.725 74.5... -
Page 25: Pin Assignments
Pin Assignments Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield... - Page 26 15-Pin Color Display Signal Cable Pin Number 15-Pin Side of the Signal Cable Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Ground Video-Blue N.C. N.C. DDC-Serial data Detect Cable H-sync GND-R V-sync GND-G DDC-Serial clock GND-B...
-
Page 27: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
