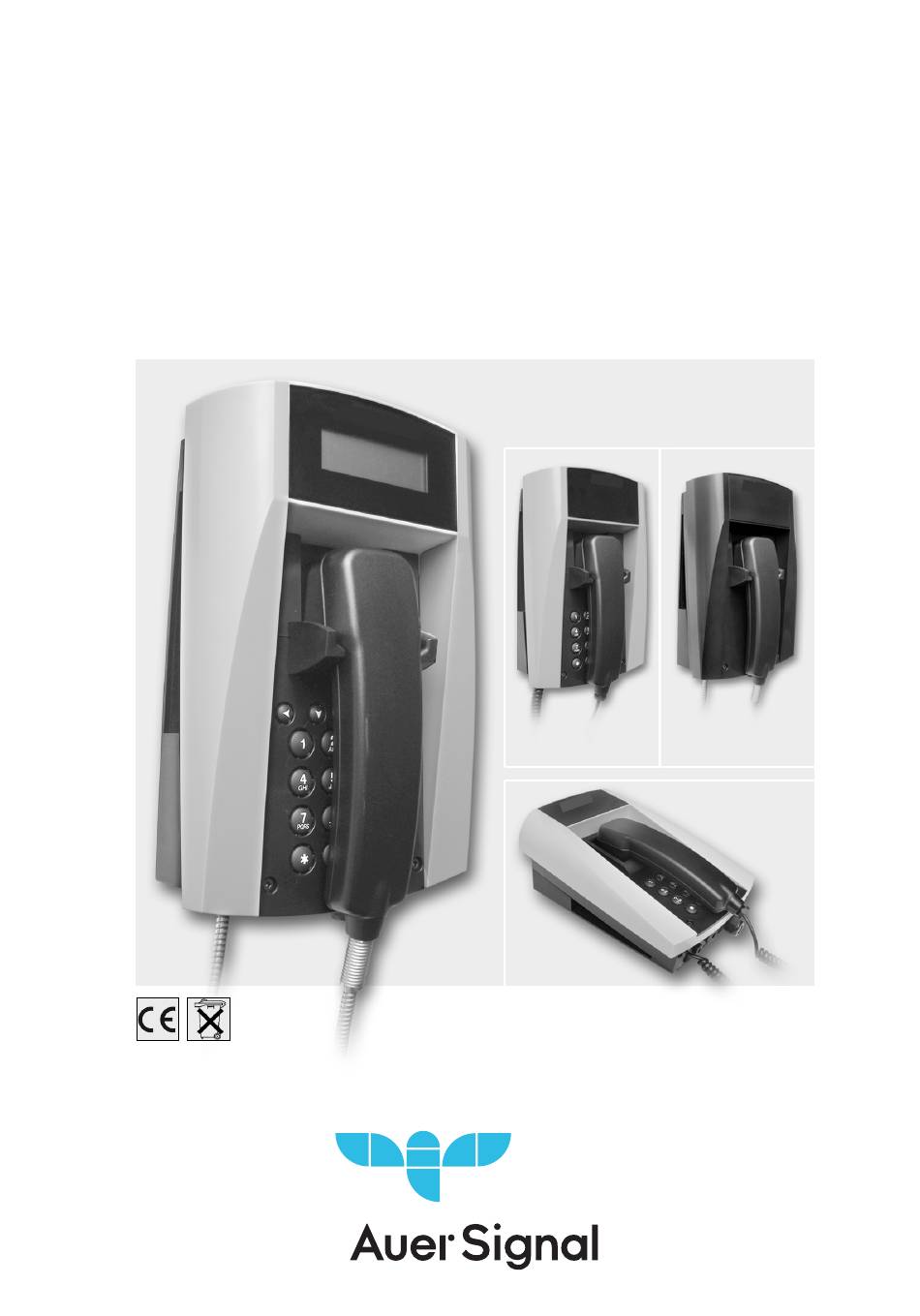

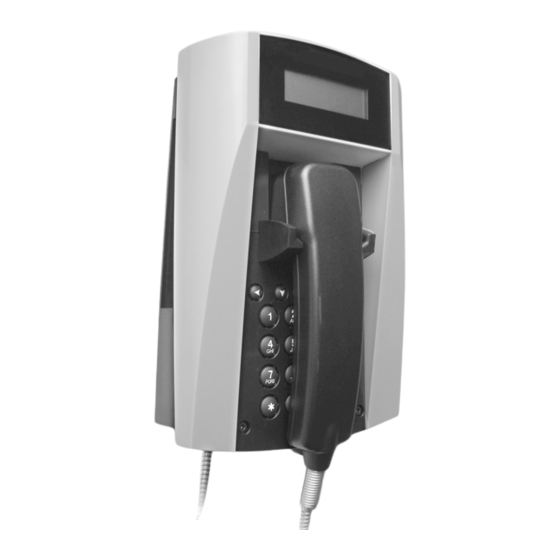

- Page 1 Weatherproof telephone wFT3 Version 21 keys with display Version 16 keys Version without keys, without display without display Tabletop unit Operating manual wFT3 3.0_E...
-
Page 2: Table Of Contents
Note Please read the operating manual carefully before installing the device. Please check the contents of the box for completeness. Table of Contents General operating notes................4 Device overview / Dimensions..............5 Device versions....................5 Controls and indicators................6 Version with keypad (21 keys) and display.............. - Page 3 Direct call....................16 Total lock....................16 Telephone book..................16 Programming..................16 Direct call number..................16 PIN........................ 16 Version with keypad (16 keys), without display ......17 Operation...................... 17 Seize (Make / answer a call)................. 17 Amplified listening in receiver............... 17 Make a call.....................
-
Page 4: General Operating Notes
General operating notes 1. The versions of FernTel 3 can be operated in the analogue, public telephone network and connected to analogue terminals of branch exchanges. 2. The receiver is equipped with a leakage field spool for coupling of hearing aids. Users of a hearing aid with inductive receiver may receive the signal from the receiver inset directly. -
Page 5: Device Overview / Dimensions
Device overview / Dimensions (mm / inch) Device versions The telephone FernTel 3 is available in three versions. - with keypad (21 keys) and display - with keypad (16 keys), without display - without keypad, without display (optionally with a device-internal programming keypad) -
Page 6: Controls And Indicators
Controls and indicators Version with keypad (21 keys) and display Keypad Menu operations keys Speed code dialling Disconnect Last number redial Enquiry key ________________________ Number keys Display The two uppermost lines display numbers or the menu settings. The lower line displays pictograms that correspond to the functions. -
Page 7: Version With Keypad (16 Keys), Without Display
Version with keypad (16 keys), without display Keypad Amplified listening in receiver Disconnect Last number redial Enquiry key ________________________ Number keys Version without keypad, without display Optional, device-internal programming keypad (12 keys) -
Page 8: As-Delivered Condition
As-delivered condition Box contents The scope of the delivery includes: 1 telephone 1 telephone mount 1 handset accommodation for the table version with 2 screws 4 washers Ø 18 mm this operating manual Telephone presetting Valid for version Dialling mode Dual-tone multifrequency (DTMF), signal duration 90 ms Enquiry key function (R key) -
Page 9: Mounting And Installing
Mounting and installing Protect the telephone from direct rays of the sun and sources of heat. Wall version Fasten the telephone mount with 4 screws (2). Place the provided washers Ø 18 mm under the screw head. Bore illustration (not to scale) Place the telephone in the upper latches (A), swing it downwards until the lower latches audibly engage (B). - Page 10 Plug the ribbon cable onto the pin contact strip (7) of the keypad plate. Tighten the keypad plate (6) using four screws (8). Table version Place the telephone in the lower latches (A), swing it backwards until the upper latches audibly engage (B).
-
Page 11: Mounting The Sling Holder
Mounting the sling holder (optional) Remove the keypad plate (6) by loosening the screws (8). Lever out the duct cover (13). Fasten the sling holder (14) by using the two included screws (15). Insert the duct cover (16) with groove. Screw the keypad plate (6) back on again. -
Page 12: Operation And Programming
Operation and programming Version with keypad (21 keys) and display Operation Seize (Make / answer a call) When you pick up the handset, you may answer a call or make a call to a conversation partner. Receiver volume During a call you can adjust the volume in the receiver for the duration of the call, using the keys . -
Page 13: Programming
Programming In order to program the telephone, you have to allow modifications of the settings. General Use the Programming menu to modify the operating settings of the telephone. After lifting the handset or pressing the disconnect key, a welcome message appears in the display. Begin the programming procedure by pressing the key. -
Page 14: Telephone Book
Restrictions Programming Press the key to select a menu item. Telephone book In the telephone book, you press the keys to display the entered names (and numbers). Press the key to choose between the following sub-menus: dial modify delete delete all In case of an empty telephone book, only the sub-menu „add“... -
Page 15: Settings
Settings Under Settings, use the keys to display the following sub-menus: Ringing signal Volume Dialling mode Menu As-delivered condition Ringing signal The volume and melody of the ringing signal are set. Volume The receiver volume is set permanently. Dialling mode Here, one of four dialling modes is selected. -
Page 16: Direct Call
Total lock The telephone is fully restricted. Calls can be received only. Direct call number Here, enter the number to call when Direct call is enabled. Lift restrictions by pressing the key, in case of total lock, Direct call and exclusive dialling from the telephone book. -
Page 17: Version With Keypad (16 Keys), Without Display
Version with keypad (16 keys), without display Operation Seize (Make / answer a call) When you pick up the handset, you may answer a call or make a call to a conversation partner. Amplified listening in receiver Press the A key to increase the receiver volume during a call. Depending on the presetting, the volume is increased in one or two steps. -
Page 18: Restrict Settings Modifications
Restrict settings modifications Lift the handset. Press the * and # keys simultaneously. Press the # and 1 keys consecutively. Enter the PIN Press the key to disable settings modifications. Replace the handset. (PIN) Adjust ringing volume Lift the handset. Press the * and # keys simultaneously. -
Page 19: Set Dialling Mode
Set dialling mode Lift the handset. Press the * and # keys simultaneously. Press key 9. Enter the code for the desired dialling mode. Press the key to store the selected dialling mode. Replace the handset. l a i n i l Dual-tone multifrequency (DTMF), The DTMF tone is being generated as long as the associated key is being... -
Page 20: Program Pause Following The Exchange Code
Program the pause following the exchange code Lift the handset. Press the * and # keys simultaneously. Press key 1. Press a key from 1 to 5 (the key number corresponds to the duration in seconds) Press the key to store the entered duration of the pause. Replace the handset. -
Page 21: Change Personal Identification Number (Pin)
Change Personal Identification Number (PIN) Lift the handset. Press the * and # keys simultaneously. Press the # and 2 keys consecutively. Enter the old PIN. Enter new PIN. Repeat new PIN. Press the key to store the new PIN. Replace the handset. -
Page 22: Version Without Keypad And Without Display
Version without keypad and without display Operation Seize (Make / answer a call) and dialling Receive a call by lifting the handset. If you want to make a call, lift the handset. The private branch exchange then automatically establishes a connection. Optionally If you have a telephone with a built-in programming keypad, you may program a speed code dialling number. -
Page 23: Adjust The Ringing Melody
Adjust the ringing melody Lift the handset. Press the * key. Press key 6 (the set melody is played back) Set the desired melody using the keys 1 to 9. Press the # key to store the selected melody. Replace the handset. (1…9) Set dialling mode Lift the handset. -
Page 24: General Information
General information Service You have bought a modern J. Auer product subject to meticulous quality control. If any questions regarding the telephone, or malfunctions should occur – even after the guarantee has expired - please contact AUER. Please have the type denomination and product number (to be found on the nameplate) ready. -
Page 25: Technical Data
Technical Data Connection data Supply voltage 24…66 Vdc Supply current 19… 100 mA Ringing alternating current 30…90 Vac Ringing frequency 16…68 Hz Ringer input impedance ≥ 6.0 k Ω at 25 Hz ≥ 3.5 kΩ at 50 Hz Enquiry key (flash) only for DTMF 80 ms, 120 ms, 600 ms Dialling mode Tone duration unlimited or 90 ms... -
Page 26: Eu Declaration Of Conformity
EU Declaration of Conformity Auer Signal GmbH declares that the telephone FernTel 3 is in compliance with the basic demands and other relevant provisions of Directive 2014/53/EU (R&TTE). This telephone is designed to be connected to public telecommunications exchanges and private branch exchanges, and complies with the basic demands according to EU Directive 2014/53/EU (Radio and Telecommunications Terminal Equipment, R&TTE). - Page 28 Subject to alterations or errors cations Perfektastr. 102 · A-1230 Vienna Phone 0043 1 813 82 20 · Telefax 0043 1 815 99 54 http://www.auersignal.com · e-mail: office@auersignal.com...
