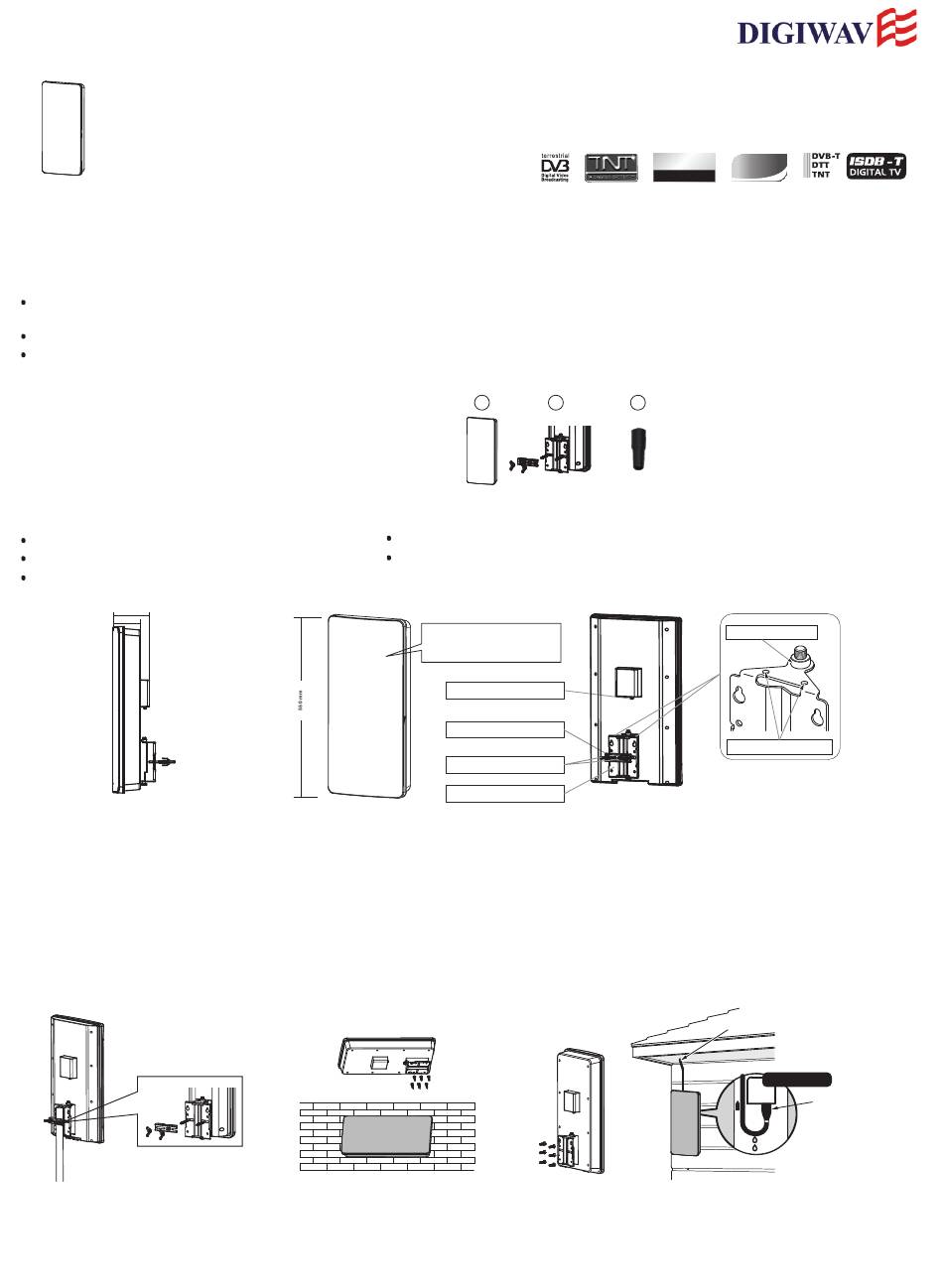

Digiwave ANT-5010 Quick Start Manual

ANT-5010

INTRODUCTION:

This is a special designed new concept antenna for digital outdoor analogue and terrestrial HDTV broadcasting reception. It is the best solution
for home reception and digital portable TV reception. Complete accessories are included for wall or pole mounting. With the anti-UV and water
proof housing.

Technical Date:

Frequency Range: VHF87.5-230MHz
UHF470-862MHz
Antenna Gain: 14dB
Impedance: 75Ω

Included in Package:

Before start your installation,please check the contents.
1. Antenna main unit
2. Mounting accessories
3. Water-proof kit

Product Features:

Anti-UV coating and waterproof design.
Lightweight, compact size and easy to install.
For both analog and digital TV signal reception
120mm
90mm

Mounting the antenna:

T his antenna can be used outdoor with the included mounting accessories, it can be mounted on the wall or the pole.
(Fig.1) use the pole mounting accessories to fix the antenna on the pole.
(Fig.2) use the wall mounting accessories to fix the antenna on the wall
Fig.1
DIGITAL OUTDOOR TV ANTENNA
With dipole inbuilt for the excellent UHF and VHF band signal reception.
Specially Compatible with HDTV of various digital terrestrial signal
(DVB-T; ISDB-T; DMB-T/H; ATSC)
Receive TV signal from the
front side, please face it to
the signal tower.
Wall instalation metal
Fig.2
Using the screws to fix the antenna on the wall.
HORIZONTAL
Passive version
1 2 3
F type connector
Pole fixing mast
Fixing screws
VERTICAL
ATSC
HDTV
Compatible
Compatible
Fixing direction nut
Falling-proof installation hole
Dig a hole on the eaves, and arrange
the cable into inner house
The back of antenna
Water-proof cap
U-shape cable arranging
prevents water from entering
