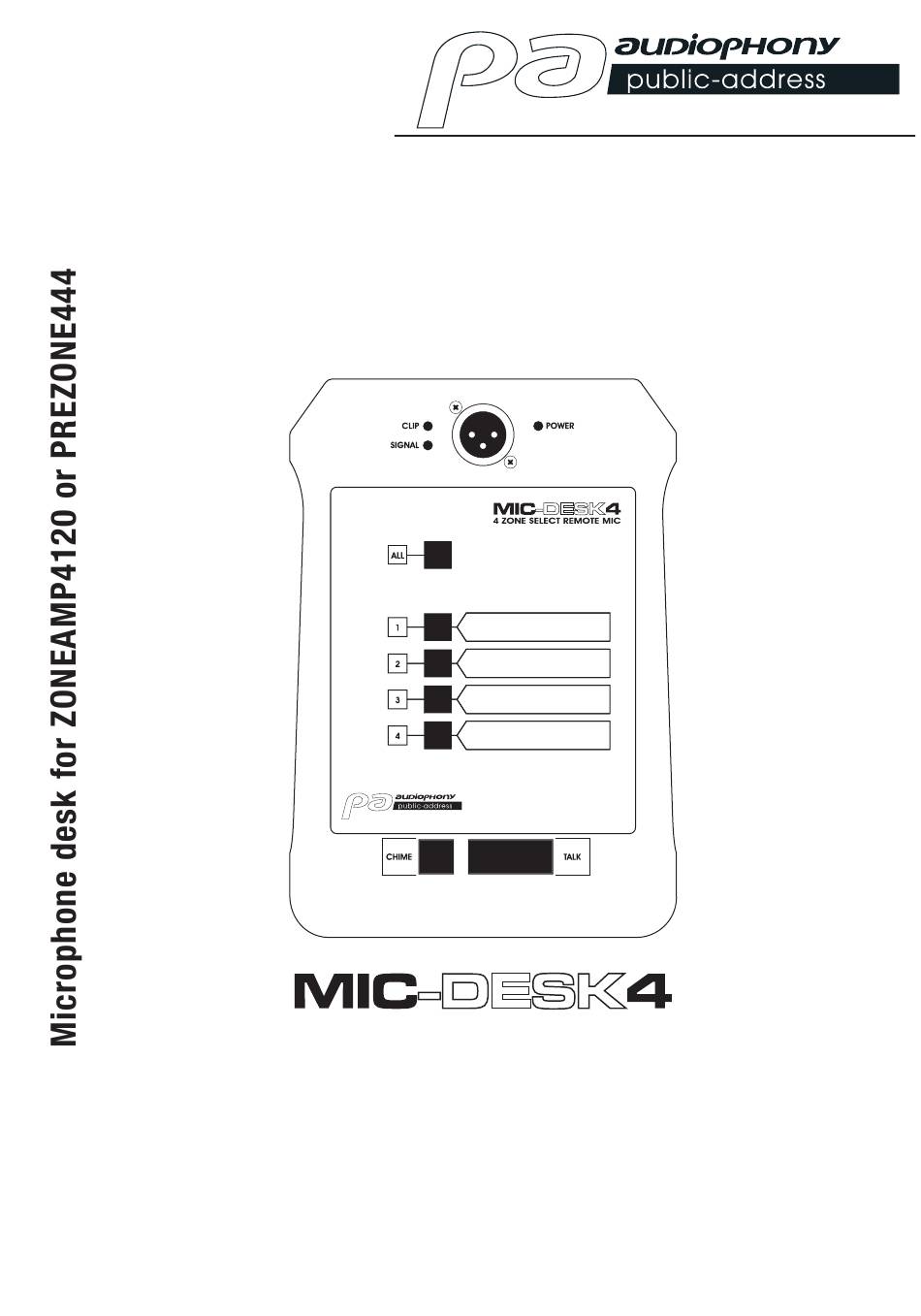

- Page 1 USER GUIDE 10509 - Version 1.0 / 09-2016...
-
Page 2: Safety Information
MIC-DESK4 - Microphone desk for ZONEAMP4120 or PREZONE444 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins-... - Page 3 MIC-DESK4 - Microphone desk for ZONEAMP4120 or PREZONE444 Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
-
Page 4: Technical Specifications
MIC-DESK4 - Microphone desk for ZONEAMP4120 or PREZONE444 2 - Introduction The MIC-DESK4 was clearly thought-out for professional installations, and allows you to broadcast public announcement via PA system. It features a zone selector to select 1 to 4 zones, a chime system and main volume controls. - Page 5 MIC-DESK4 - Microphone desk for ZONEAMP4120 or PREZONE444 4 - Presentation The sound signal will only be sent to selected zones. POWER LED The LOCK/UNLOCK must be on UNLOCK position to Indicates your device is activated. send the signal. Microphone input...
-
Page 6: Microphone Input
2 = Hotspot (+) 1 et 3 pins 6.2 - RJ45 socket This socket allows you to power up your MIC-DESK4, select broadcasting zones and send the signal to your ZONEAMP4120 or PREZONE444. It is hardwired as follows: 1 : +15V DC... - Page 7 MIC-DESK4 - Microphone desk for ZONEAMP4120 or PREZONE444 5 - Possible setup This setup features your MIC-DESK4 with the amplified ZONEAMP4120 mixing desk. The installation is identical with your PREZONE444, except for the amplification part. 100V line-level zone 4 speaker...
