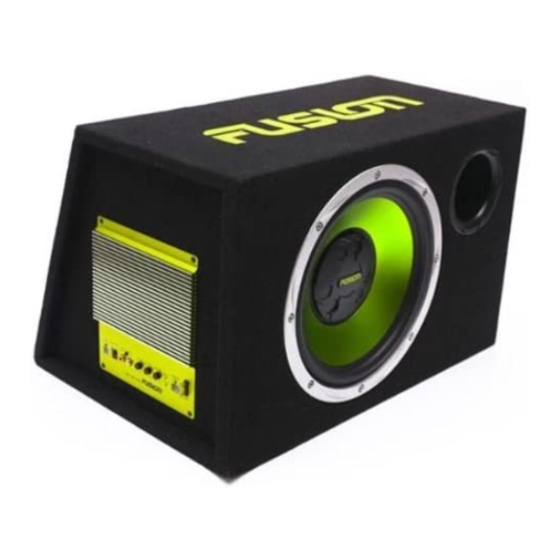

Fusion ENCOUNTER EN-AB1120 Quick Start Manual

ENCOUNTER
ACTIVE ENCLOSURES
EN-AB1120, EN-AB2120
Product Specifications
Max Power Rating
Frequency Repsonse
Bass Boost (Variable)
Low Pass Filter (Variable)
Tuning
Woofer Size
Fuse
Box Dimensions
Control Descriptions
LEVEL
This allows the adjustment of the amplifier level of the subwoofer. Turn clockwise to increase the level. If
the sound becomes distorted reduce the level.
LOW PASS FILTER (LPF)
This allows the adjustment of the highest frequency the Encounter Active Enclosure Tube will produce.
This should be adjusted to blend with your main speakers. Typically, this will be set to around 100Hz (ap-
proximately the central position of the control knob).
BASS
This allows very low frequencies to be boosted. Adjust with care and listen for distortion. If the sound be-
comes distorted, reduce the amount of boost.
REMOTE LEVEL CONTROLLER
When connected, this allows further control over the level from a remote location, using the supplied lead.
Installation
Make sure the Encounter Active Enclosure is firmly fixed in your vehicle. Check before drilling or cutting
holes. DO NOT work near gas tanks, fuel lines, hydraulic lines or electrical wiring.
DO NOT mount the Encounter Active Enclosure in such a way as to pinch or damage the wires.
Make sure everything is firmly connected, before attaching the +12V wire. Make sure the +12V wire is
fused as close as possible to the battery. ALWAYS use a fuse with the recommended rating.
EN-AB1120
360 Watts
4OHz - 500Hz
0 / + 18dB
40Hz - 250Hz
Bass Reflex
12"
15 Amp
520mm x 375mm x 405mm
20 1/2" x 14 3/4" x 15 15/16"
EN-AB2120
550 Watts
35Hz - 500Hz
0 / + 18dB
40Hz - 250Hz
Bass Reflex
2 x 12"
880mm x 375mm x 415mm
34 10/16" x 14 3/4" x 16 3/8"
