OWB-1G/65/EU Quick Start
This guide helps you install and use your product for the first time. For more detailed information, g
Step 1: Check what's in the box
The OWB-1G/65/EU On-wall Box

Step 2: Overview

The OWB-1G/65/EU is a white plastic wall-box for mounting two Kramer inserts or a 1 gang European wall plate. The box is mounted
on the wall for applications where in-wall installation is not possible.
The OWB-1G/65/EU is 65mm deep allowing sufficient space to prevent damage to connectors (such as HDMI connectors) when
connecting the rear side of the insert or wall plate.

Step 3: Installing the OWB-1G/65/EU

To mount the OWB-1G/65/EU to a wall or other surface, do the following:
If you want to feed the cables to the OWB-1G/65/EU from any of the four sides, carefully break the knock-off holes where appropriate
(knock-off holes are shown as gray dotted lines in the illustrations below).
Feed the cables from the rear/sides of the OWB-1G/65/EU out through the front.
Hold the OWB-1G/65/EU in position against the wall or surface on which it is to be mounted, taking care that the OWB-1G/65/EU is
level, and attach it using the wall mounting kit.
You can install either two inserts or a 1 gang European wall plate.

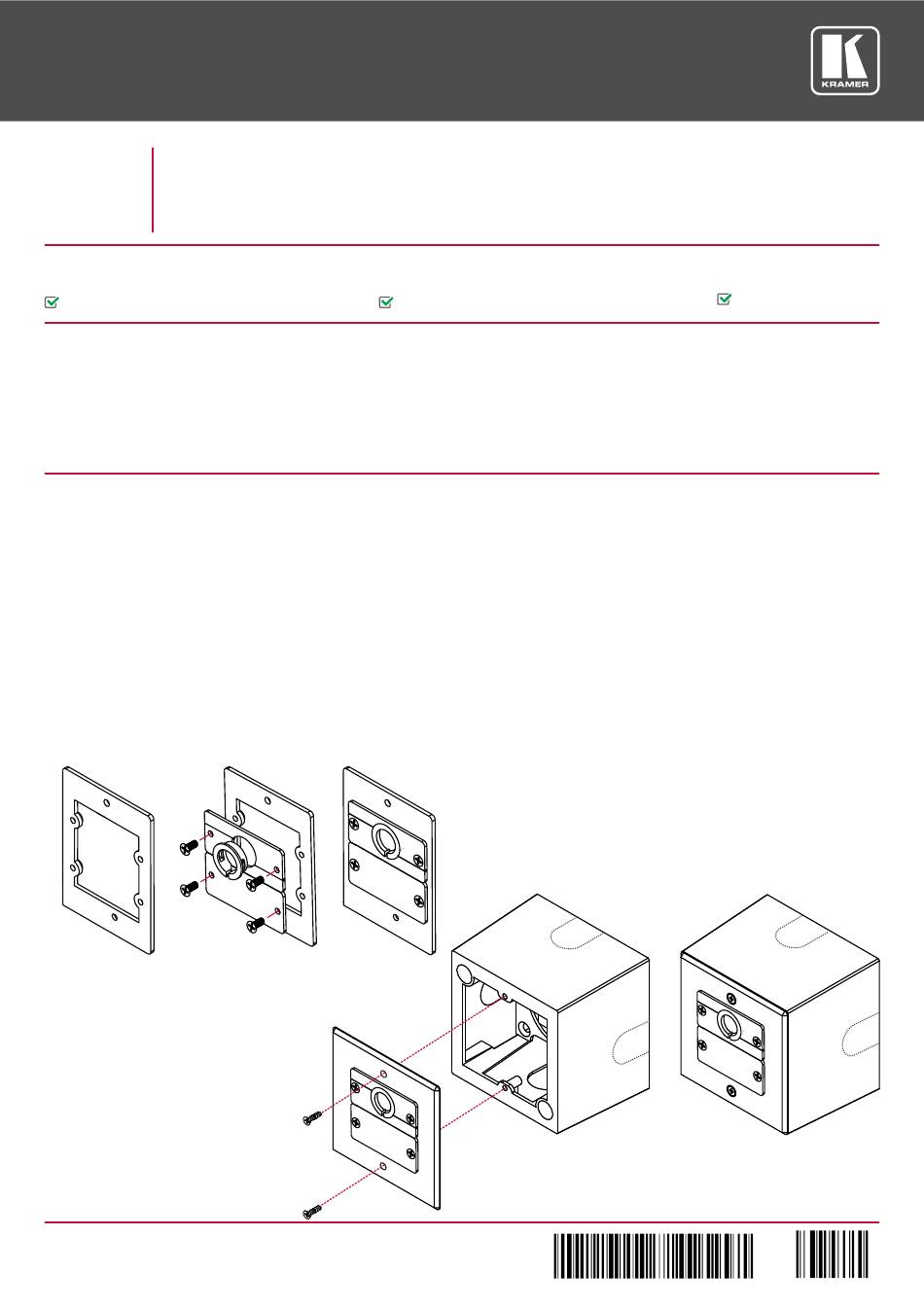

Installing the Inserts

To install the inserts onto the OWB-1G/65/EU, do the following:
1. Mount the inserts onto the supplied metal frame (inserts are not included and can be purchased separately).
2. Connect the cable ports to the rear side of the insert(s).
3. Use 2 screws to attach the metal insert frame to the
OWB-1G/65/EU.
OWB-1G/65/EU Quick Start (P/N: 2900-300589QS REV 3)
or scan the QR code on the left.
1 gang metal frame for two inserts
2 9 0 0 - 3 0 0 5 8 9 QS
P/N:
o to
Wall mounting kit
