Spitronics Bluetooth/UART Instructions

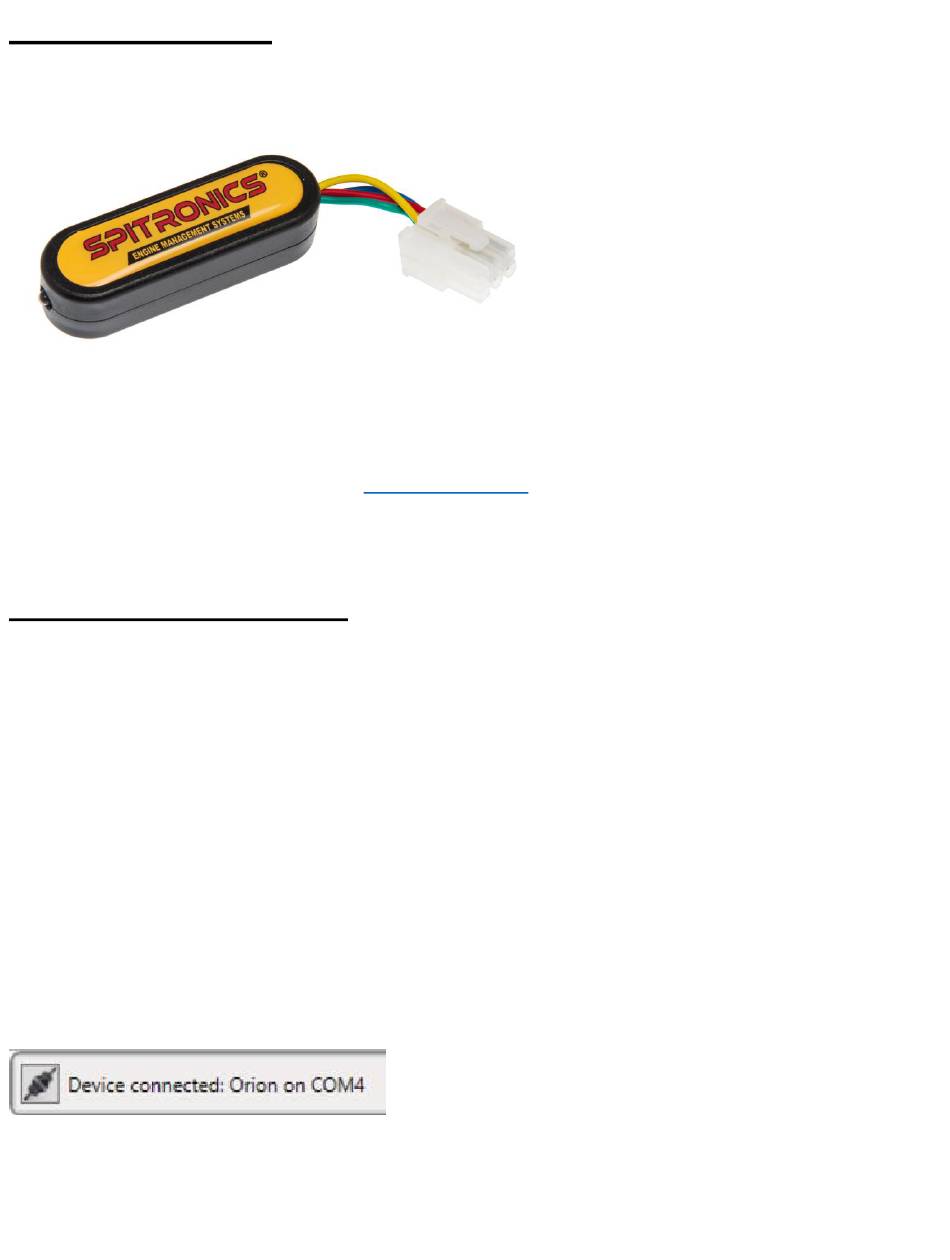

Bluetooth Module

The Bluetooth/UART module is used for wireless communication to the Spitronics devices. It can be

used with Hyperspace PC software on laptops or Android software for mobile phones. It is also used

for third party Android dash application

www.realdash.net

Bluetooth is not as fast and direct as the USB

cable so there is a setting that has to be made in the tuning software. It is however used with great

results. However you need Android 5 or higher and we cannot guarantee that all phones may work with

the software. MAC and IOS is not supported yet.

Connect the Bluetooth module to the device Comms connector. It will receive power from the device

when it is switched on. The blue LED on the module will start flashing. This will indicate that the module

has power and are ready for pairing.

Open windows Bluetooth manager of your laptop or mobile device, it can either be found in the

taskbar bottom right, or by going to the control panel. (NB! Make sure your laptop or mobile does

have Bluetooth capability)

Turn the Bluetooth on if not on and select the device, the module will read as "SPITRONICS". (it may

read it as unknown device at first but give it a while or just pair with it anyway)

It will now ask you for a pairing code, this code will stand on the side of the module and is also the

serial number of the module. (example BT0022) Every module has their own code. Ignore the BT and

leading zeros. So the example's pairing code is 22.

Now that the module is paired, open the Hyperspace software. See if the software detected the unit

on the bottom left corner.

If not try closing the software and opening it again.

Now open the Tuning and Settings menu on top and go to Device settings.

Table of Contents

Do you have a question about the Bluetooth/UART and is the answer not in the manual?

Page 1 Bluetooth capability) Turn the Bluetooth on if not on and select the device, the module will read as “SPITRONICS”. (it may read it as unknown device at first but give it a while or just pair with it anyway) It will now ask you for a pairing code, this code will stand on the side of the module and is also the serial number of the module.
Page 2 You will see the software communication LED will flash green then red. This means it loses communication. Now increase the Max Poll Error counter till it only flash green. Press close and you are ready to tune. You only need to set this once. If you are using the USB cable again you may do the same process and make the value zero again.
Page 3 Available Devices column. Now Click on Spitronics and it will ask you a paring code which is on your dongle. Enter the pairing code. This code will stand on the side of the module and is also the serial number of the module.
Page 4 After it is paired it should now sit in the paired devices column. You can now open the software and connect from that side.
