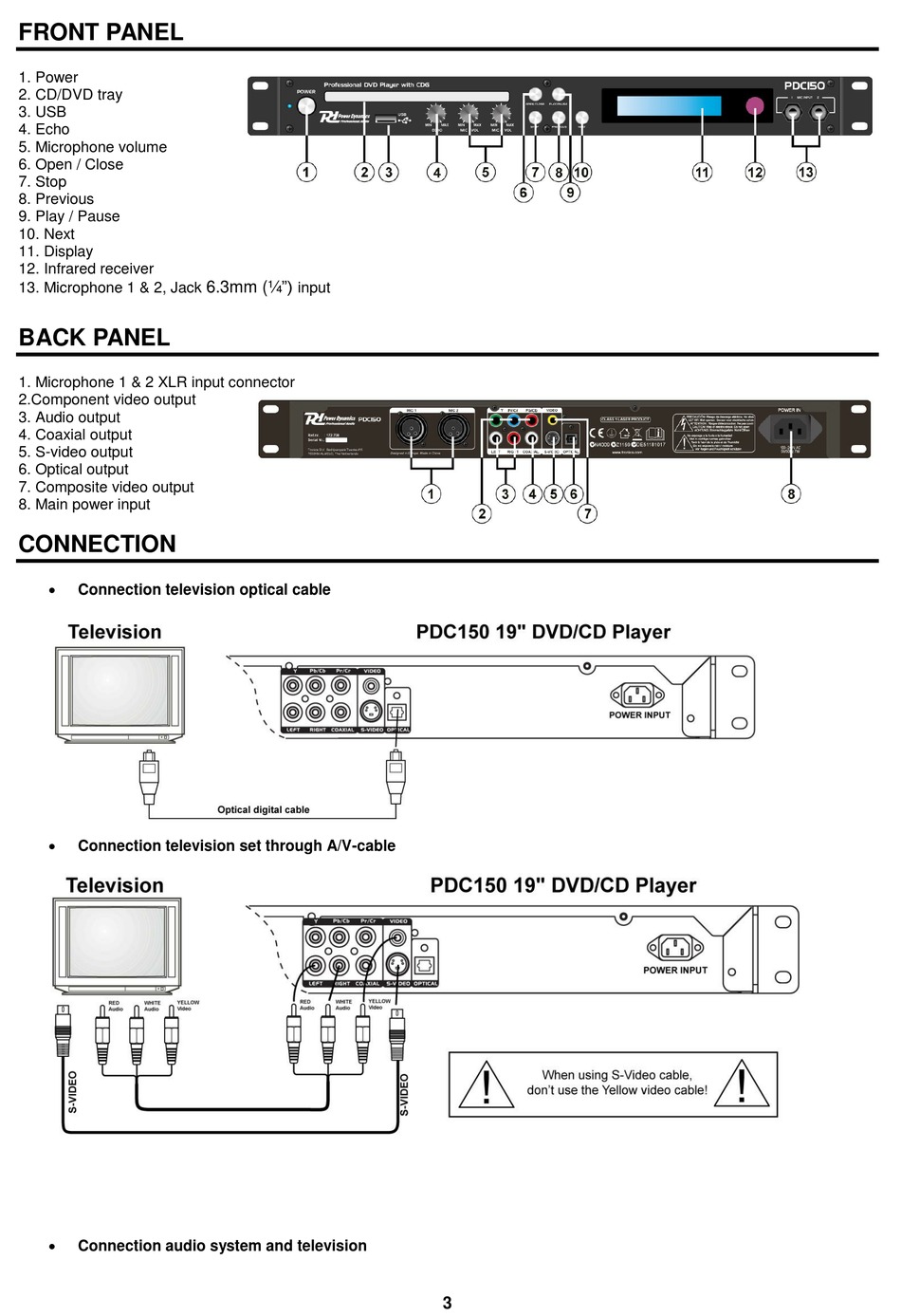

FRONT PANEL

1. Power
2. CD/DVD tray
3. USB
4. Echo
5. Microphone volume
6. Open / Close
7. Stop
8. Previous
9. Play / Pause
10. Next
11. Display
12. Infrared receiver
13. Microphone 1 & 2, Jack

BACK PANEL

1. Microphone 1 & 2 XLR input connector
2.Component video output
3. Audio output
4. Coaxial output
5. S-video output
6. Optical output
7. Composite video output
8. Main power input
CONNECTION

Connection television optical cable

Connection television set through A/V-cable

Connection audio system and television
6.3mm (¼")
input
