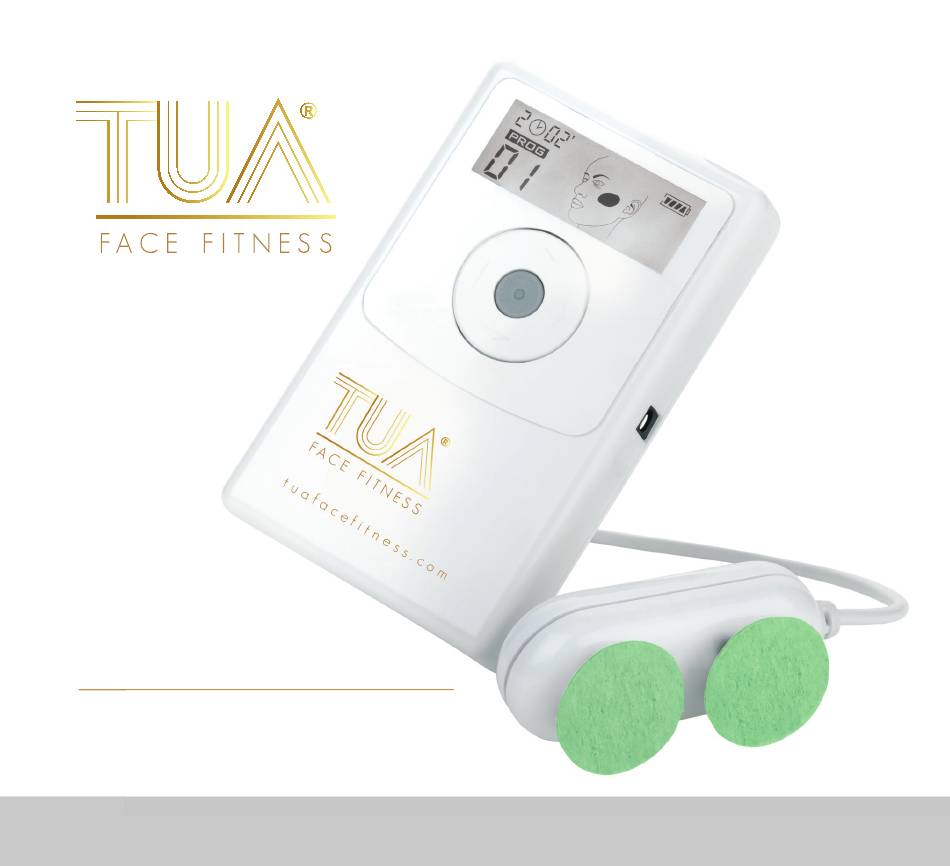

- Page 1 FACIAL TONING & LIFTING DEVICE HANDBOOK NEW GENERATION | NON INVASIVE TREATMENT | ADVANCED FEATURES...
- Page 2 Look after the Handbook carefully for further reference. Tua Face Fitness is intended for facial stimulation and is indicated for Over the Counter Cosmetic Use. This device must only be used for the purposes for which it was designed, namely for the electrical stimulation of facial muscles for personal-use beauty purposes (as indicated and described in this Handbook only).
- Page 3 Their carefully developed ergonomic lines make them very easy to use and their innovative designs are elegant and pleasant to touch. In the TUA community you will find all the technical and scientific experience gained from a market leader in the manufacture of electrical medical equipment used by professionals in hospitals and university centers.
-
Page 4: Table Of Contents
Product description..................Page 11 Description of the facial wand ..............Page 12 Face programs ...........................Page 14 Content of face programs ................Page 16 Using Tua Face Fitness ...........................Page 18 Graphic display ....................Page 18 Using the facial wand ..................Page 24 Recharging the batteries ................Page 26 Replacing the batteries ................Page 26... - Page 5 (muscle cells). In a similar way, Tua Face Fitness conveys special low-voltage micro-currents to the facial muscles and tissues via the patented electrode wand. These micro-currents, which are con- trolled and absolutely safe, cause passive contraction of the muscles fibres, particularly at the less-used level, and increase the blood circulation to the treated area.
- Page 6 Voluntary brain-nerve-muscle triggering IMPULSE Triggering by electrostimulation ELECTROSTIMULATOR...
-
Page 7: Benefits Of Electrostimulation
BENEFITS OF ELECTROSTIMULATION • Selective stimulation of muscle group. By positioning the electrodes correctly on the different muscles, a specific stimulation can be achieved on the selected muscle, reducing the activity of the adjacent muscle to a minimum. This is unlike what happens in the case of voluntary ‘manual’ contraction, where the muscles always work according to specific muscle chains and synergies. -
Page 8: Main Contraindications And Precautions
PRECAUTIONS - The sponge contacts must always be well moistened with tap water and kept in good contact with the skin; do not use other substances. If they are not adequately moistened, they tend to insulate the pulses and not conduct them. - The steel electrodes must never come into direct contact with the skin. - Page 9 CONTRAINDICATIONS Facial skin stimulators should not be used on patients with cardiac demand pacemakers and other con- ditions described below: − Pathological facial conditions − Pacemakers − Metal pins and plates − Weak psycho-physical condition − Broken or bruised skin −...
-
Page 10: Contents Of Packaging
CONTENTS OF PACKAGING • 1 Tua Face Fitness device including facial wand • 4 x rechargeable batteries 1.2V 950mA AAA type • Mains adaptor/Battery charger Input: AC 100-240V~50/60Hz. Output: DC7.5V – 200mA • Water Dispenser Bottle • 6 x spare contact sponges •... -
Page 11: Product Description
• Silent Use mode To avoid disturbance to others while using Tua Face Fitness, the silent use mode can be activated to stop the beep sound emanating from the device. -
Page 12: Description Of The Facial Wand
DESCRIPTION OF THE FACIAL WAND Tua Face Fitness features a special patented electrode wand that has been ergonomically designed for optimum positioning on the various facial areas. The mobility and flexibility of the 2 stainless-steel electrodes (covered with special cellulose contact... - Page 14 FACE PROGRAMS Tua Face Fitness has 5 workout programs, each with specific frequencies and contraction/ recovery times for the facial area concerned. Program 1 Position on the cheek bone area as far as the area in front of the ear.
- Page 15 Program 3 Position on the temporal region and the forehead in general. Program 4 Position on the chin and all around the mandibular arch (lower jaw bone). The same program is also used to work out the neck muscles and lower lip. Program 5 Position on the under eye area and on under eye bags.
-
Page 16: Content Of Face Programs
CONTENT OF FACE PROGRAMS Tua Face Fitness has five face programs which work out five different facial zones, including the neck. The duration of each exercise is 120 seconds, that is, 2 minutes. This is the perfect time to allow for facial wand placement, micro-current intensity selection and workout time to the area. - Page 17 next program (2 lower cheek) and indicates this transition by means of an intermittent beep. You can treat one whole side of your face first before repeating all the programs to the other side, or, after each program has finished you can go back and repeat that program to the other side, treating both sides of your face as you go along.
-
Page 18: Graphic Display
USING Tua Face Fitness GRAPHIC A B C DISPLAY When ‘1’ shows, you are in workout mode Battery charge status Active program flashing symbol Selected program Remaining workout time in minutes Face treatment areas Contraction / Pause indication Micro-current intensity (in mA) - Page 19 Connect the facial wand to either of the Tua Face Fitness outputs found at the top of the device.
- Page 20 Switching on the device Switch on Tua Face Fitness by keeping the central key pressed down for over 1 second. Selecting the desired program Tua Face Fitness features 5 workout programs covering different treatment areas of the face and neck. These are selected by means of the right arrow key (forward movement) or the left arrow key (backwards movement).
- Page 21 Starting the program At this point, the selection procedure ends and the program can start. To start the program press the central key lightly once. The clock icon flashes to indicate you are now in workout mode. Setting the intensity The intensity of the micro-current stimulation, ex- pressed in milliamperes (mA), is indicated on the right of the display screen to the right of the face...
- Page 22 In the example, left, the intensity is set at 20 milliamperes. The progress of the treatment time is indicated by the flashing clock icon and that of the minutes symbol (02). Each program (with the exception of treating the lower lip area) is conducted to both sides of the face.
- Page 23 Switching off the device At the end of the session, switch off Tua Face Fitness by keeping the central key pressed down for about 2 seconds. Silent Use mode To avoid disturbance to others while using Tua Face Fit- ness, the Silent Use mode can be activated to stop the beep sound emanating from the device.
-
Page 24: Using The Facial Wand
USING THE FACIAL WAND Tua Face Fitness uses a special facial wand consisting of 2 sprung electrodes adjustable in eve- ry direction so that they can adapt to every face conformation. The stainless-steel electrodes are covered by special cellulose sponges which are hand-washable. Before treatment and at the start of each program, moisten the sponges thoroughly by using 12 drops of water using the provided water dispenser bottle (provided). - Page 25 And you see your cheek lift up as you do this. This feature is exclusive to Tua Face Fitness – the only device in the world to do this.
-
Page 26: Recharging The Batteries
If correctly used, battery life expectations are around 300 charge/discharge cycles. For safety reasons, during battery recharging, Tua Face Fitness is deactivated. If Tua Face Fitness is not used for long periods of time, remove the batteries from the device. REPLACING THE BATTERIES... -
Page 27: Cleaning The Device
Do not use alcohol, thinners, solvents or other chemical products. CLEANING & REPLACING THE SPONGES (facial wand) To ensure that Tua Face Fitness works effectively, the sponges should always be well soaked in water before every treatment. If they are not completely moistened, they tend to isolate the impulses rather than conduct them. -
Page 28: Disposal
Fitness data plate indicates that the waste of electrical and electronic equip- ment must be collected separately. CLASSIFICATION • Tua Face Fitness is a BF type internally powered appliance; Class II when connected to the battery charger BF type applied part • Degree of protection against the penetration of liquids: IPX0 •... -
Page 29: Technical Details
TECHNICAL DETAILS Parameter Face program No. of outputs Wave shape Sinusoidal modulated No. of programs Pulse width Frequency range Contraction time Recovery time Current intensity 60 mA max (1KOhm load) Supply 4 x batteries 1.2V 950mA rechargeable AAA type (code VABA10) or 4 alkaline batteries 1.5 V AAA type Weight 120 g (including batteries) -
Page 30: Conformity With Regulations
CONFORMITY WITH REGULATIONS Tua Face Fitness bears the CE mark. Tua Face Fitness has been designed and manufactured in conformity with the requirements of the Company Quality System according to ISO 9001 and ISO 13485 standards. The device complies with the electrical safety to IEC 60601-1 Medical electrical equipment–... - Page 31 1 Symbol indicating conformity of the appliance with European Directives 2 4.8-6 V battery-powered (direct current) 3 Appliance with BF type fitted part 4 Do not dispose of the device in the common urban waste...
-
Page 32: Cheek Bone Area
1 • FACE APPLICATIONS CHEEK BONE AREA (POSITIONING OF ELECTRODES) Position the wand vertically, just above the corner of the mouth, as shown in the photo; during operation, the wand can be moved along the entire cheek bone and just skim the edge of the under eye area. - Page 33 1 • CHEEK BONE AREA cont’d For a second exercise, position the wand obliquely at the corner of the mouth to the cheek bone; this can be moved as far as the ear for a complete stimulation of the lower part of the cheek bone, skimming the cheek. A slight stretching will occur at the corner of the mouth as it is exercised upward and outward due to the muscle contraction.
-
Page 34: Lower Cheek Area
2 • LOWER CHEEK (JOWL) AREA In this exercise, the wand should be positioned obliquely, near the corner of the jaw (where your jaw bone ‘turns a corner’ before reaching the ear). During treatment, the wand can be moved as far as the ear, following the shape of the face, for a complete exercise on the entire lower cheek area. - Page 35 2 • LOWER CHEEK (JOWL) AREA cont’d The stimulation of this area tones the cheek and gives the face a relaxed expression, as if slightly smiling, increasing the volume of the upper lip and combating the appearance of vertical wrinkles typical of aging.
-
Page 36: Forehead Area (Including Advanced Exercise)
3 • FOREHEAD AREA The wand should rest on the temporal region, with the two electrodes located obliquely between the hair line and the edge of the eyebrow, slightly above the latter. During the exercise, the wand can slide across the remainder of the forehead in order to treat the whole area. - Page 37 3 • FOREHEAD AREA cont’d Be mindful of the intensity of the stimulation. The forehead muscles are, in fact, very thin and delicate. Consequently, lower the inten- sity slightly if necessary. Stimulation of the forehead muscles helps reduce expression wrinkles and raises the eyebrows, increasing the space between the eyelashes and brows, which opens up the eyes in a youthful way.
-
Page 38: Chin - Jaw Line Area, Lower Lip And Neck
4 • CHIN – LOWER LIP, JAW LINE & NECK This program has been developed to stimulate several areas: the chin, jaw line, lower lip and neck area... - Page 39 This exercise helps to plump up the appearance of the lower lip and increase its volume while you are using Tua Face Fitness. It helps to pre- vent atrophy (shrinkage) of the lower lip muscle which typically results in thinning...
- Page 40 4 • CHIN – LOWER LIP, JAW LINE & NECK 4.2 Jaw Line area: Position the wand on the lower jaw, between the corner of the jaw (where your jaw bone ‘turns a corner’ before reaching the ear) and the apex (point of your chin), following the conformation.
- Page 41 4 • CHIN – LOWER LIP, JAW LINE & NECK 4.3 Neck area: The wand should be positioned vertically. During the exercise, the wand can slide in this position to extend the work to the entire area. This exercise works to strengthen and firm the muscles in the neck and under the chin that lose their elasticity over time.
-
Page 42: Under Eye Area
5 • UNDER EYE AREA This application is dedicated to the eye area. The wand should be positioned horizontally just beneath the thin skin of the under eye area, at the very top of the cheek. The lower lid and eye bag are contracted without lowering. - Page 43 5 • UNDER EYE AREA cont’d You can treat one whole side of your face first before repeating all the programs to the other side, or, after each program has finished you can go back and repeat that program to the other side, treating both sides of your face as you go along.
- Page 44 www.tuafacefitness.com Made in Italy. Manufactured by Vupiesse - Italy, 47923 Rimini, Italy. Distributed by Spa Amazing, Inc.
