WOERNER VPA-C Quick Start Manual

1)
G 1/4
A1= Mounting position at the distributor (for
visual indication and electrical checking
device) at first place
A2= Mounting position at the distributor (for
electrical checking device) at last place
B = Mounting point for viewing indicator at
distributor (if point A is occupied
D = Proportioning block DPA-C
H = Main line
K =
Proportioning volume distinctive number
M = 2x M8 fastening threads for assembly
of auxiliary units
(see data sheets P0683)
R = Connecting plate APA-C
S = Mid fastening screw

Progressive distributor VPA-C

205.000
Number
of outlets
6
8
10
12
)
14
16
18
20
1)
Base plates threaded G 1/8
see data sheet S0688
EUGEN WOERNER
Postfach 1661
Hafenstrasse 2
Tel. +49 9342 803-0
Fax. +49 9342 803-202

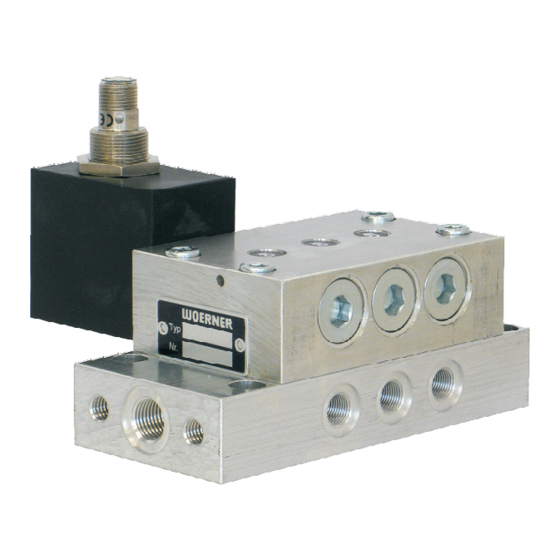

Progressive distributor
VPA-C
Use:
In progressive mode based central lubri-
cation systems
The main features of
progressive distributors are as follows
+
+
+
+
+
+
+
Technical data:
Proportioning volume
Lubrication point
Operating pressure at
Throughput volume in case of
Delivery medium
Material
Temperature range:
Length Length Weight
"a" "s" kg
Mounting position
130 - 1,30
152 - 1,65
174 - 2,00
202 92 2,30
224 114 2,60
246 114 2,90
268 136 3,25
290 136 3,60
Data sheet
GmbH & Co. KG
DE-97866 Wertheim Replaces
DE-97877 Wertheim
Page 1 of 7
info@woerner.de
www.woerner.de
WOERNER
Accurate proportioning volumes
Clear and precise arrangement of
control channels in spite of small-size
construction
Modular system construction
Quick fault remedy possible without
having to loosen the pipeline
9 different proportioning volumes
selectable in accordance with the
lubricant required
Extremely long service life
refined sliding surfaces
Pluggable monitoring elements
can be replaced during operation
No proportioning decrease at the
piston monitored
per cycle : 0,1 ... 0,9 cm³
on request
connections at max. :
max.:
Oil at max.: 2500 cm³/min
Grease at max.: 250 cm³/min
Oil-viscosity:
Grease: up to NLGI category 2
Proportioning block : Aluminium
Internal parts :
Connecting plate : Aluminium
-20 ...
: usually as needed
Note: In case of heavy vibration or
shock load, install the distributor such
that piston axes are situated vertically to
the main direction of shock impact.
An optimum ventilation of the whole
lubrication system is the precondition
for its functionally safe operation.
For quicker ventilation, the flow direc-
tion from bottom to top in the distributor
is of advantage (inlet on bottom side).
The distributor must not be "distorted".
Therefore, when mounting it, always be
careful that the supporting surface is
level.
P0688.10.13 EN
P0688.07.13 EN
:
due to
0,05 cm³
20
150 bar
>6 cP
Steel
+80 °C
