Aquapure AOT-FD-500 Quick Start Manual

Ozone module
Hide thumbs
1
2
3

Advertisement

Table of Contents

Specification :

Model No
Ozone Output
Input Voltage
Rated Power
Generating Method
Mechanical Part
Size
Weight
 Performance curve:

Safety:

A.
This unit generates very high voltages. Do not
disconnected;
B.
Any servicing or maintenance should only be carried out by approved and qualified personnel;
C.
All installations should only be carried out by qualified electricians.
OZONE MODULE
Model : AOT-FD-500

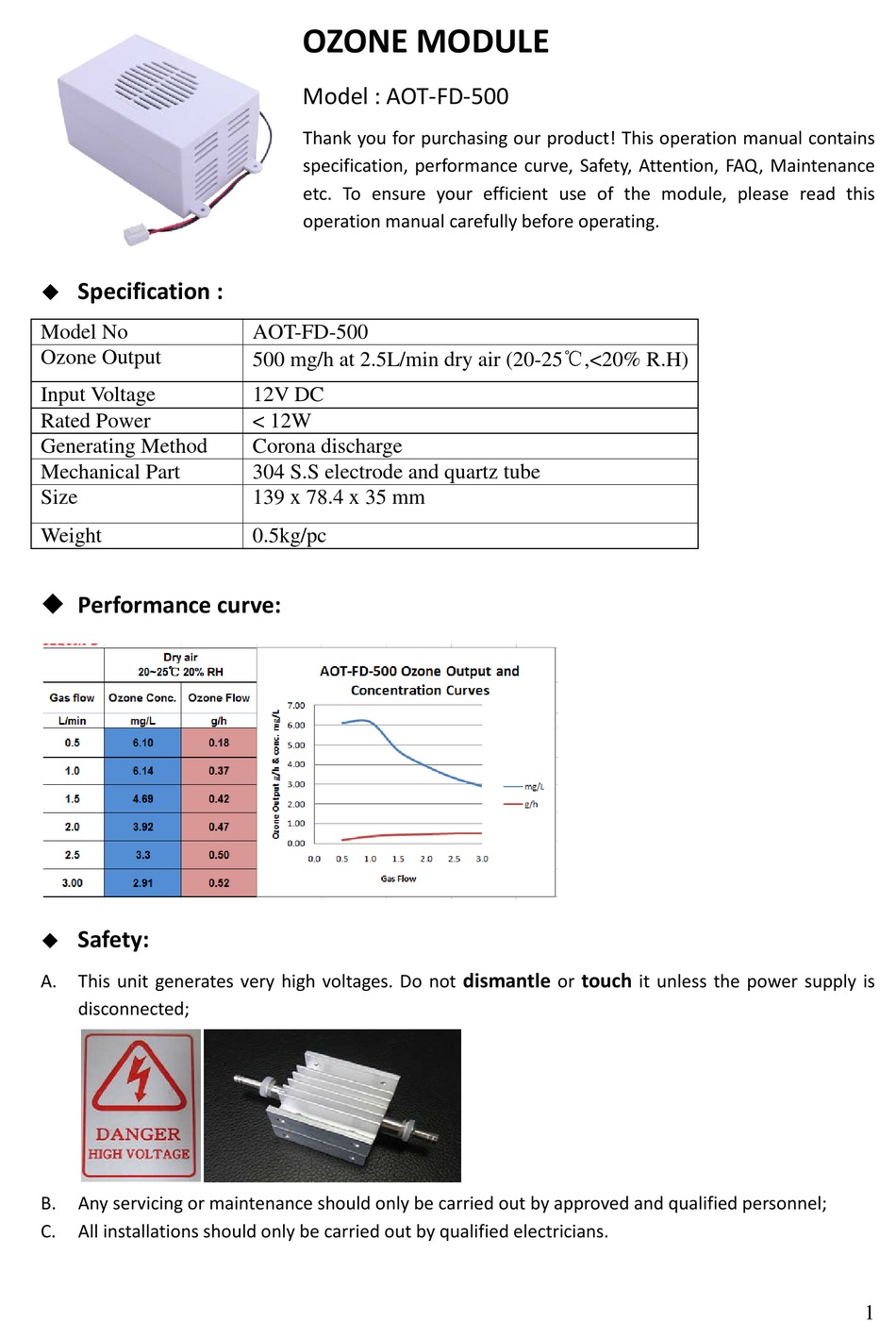

Thank you for purchasing our product! This operation manual contains
specification, performance curve, Safety, Attention, FAQ, Maintenance
etc. To ensure your efficient use of the module, please read this
operation manual carefully before operating.
AOT-FD-500
500 mg/h at 2.5L/min dry air (20-25℃,<20% R.H)
12V DC
< 12W
Corona discharge
304 S.S electrode and quartz tube
139 x 78.4 x 35 mm
0.5kg/pc
dismantle
touch
or
it unless the power supply is
1
