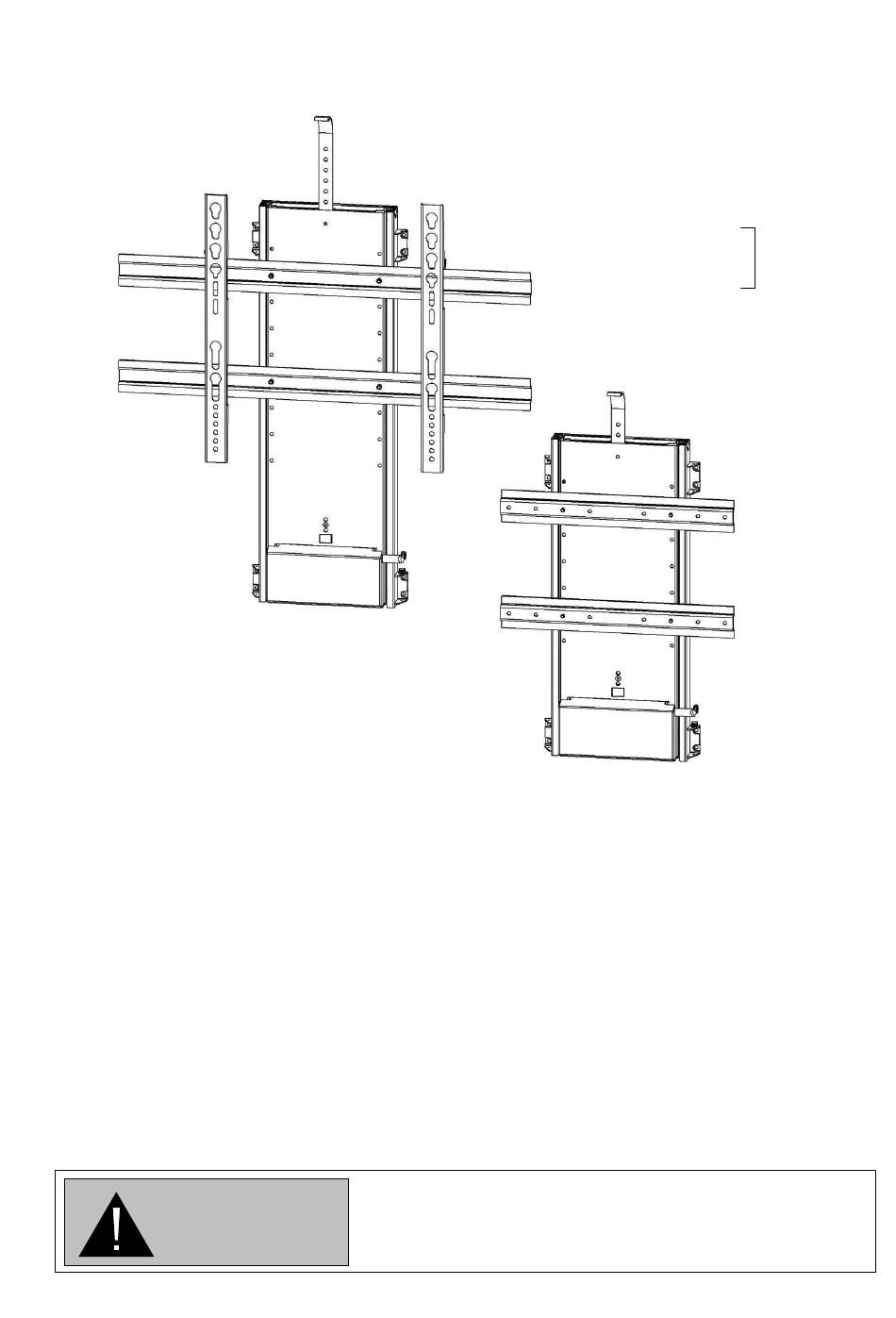

Electric TV Lift, VL-PLA- ST2-ST3
VL-PLAST3
INSTALLATION INSTRUCTIONS
CONTENT:
1. Important safety instructions.
2. Specifications and main dimensions.
3. Anti squeeze – auto reverse function (ASAR).
4. Parts included.
5. Installation.
6. RF remote system.
7. Feature functions and settings including anti-squeeze.
8. Adjusting the stroke length of the lift.
9. Declaration of conformity.
WARNING
WARNING: FAILURE TO COMPLY WITH OR OBSERVE ALL
ASSEMBLY, SAFETY AND OPERATION INSTRUCTIONS
AND WARNINGS REGARDING THE USE OF THIS PRO-
DUCT MAY RESULT IN SERIOUS BODILY INJURY.
1
Load with
min. 5 kg
VL-PLA-ST2
No. #324360.7
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for PLUSSCREEN VL-PLA-ST3
- Page 1 Electric TV Lift, VL-PLA- ST2-ST3 Load with min. 5 kg VL-PLAST3 VL-PLA-ST2 INSTALLATION INSTRUCTIONS CONTENT: 1. Important safety instructions. 2. Specifications and main dimensions. 3. Anti squeeze – auto reverse function (ASAR). 4. Parts included. 5. Installation. 6. RF remote system. 7.
- Page 2 Electric TV Lift, VL-PLA-ST2-ST3 1. Important safety Instructions. CAUTION ! Before you begin any of the Installation procedures on page 8, read and follow the warnings and safety instructions on page 2 and 3. WARNING ! THIS IS NOT A TOY ! CUSTOMER WARNING ! This appliance is sold as a component and should be installed only by a capable adult.
- Page 3 Electric TV Lift, VL-PLA-ST2-ST3 Safety guidelines Use the following safety guidelines to help protect your lift from potential damage and to ensure your own personal safety. Read all the installation instructions before testing or installing your lift. Read and follow all safety instructions. ...
- Page 4 Electric TV Lift, VL-PLA-ST2-ST3 2. Specifications and main dimensions. Materials and weights: Steel, black powder coated - Weight ~ 17/23 kg Max. working loads: 65 kg (by standard installation) 29 kg (when lift is mounted upside down) 100 kg peak load Duty cycle: 10% by 50% of working load or max 2 min.
- Page 5 Electric TV Lift, VL-PLA-ST2-ST3 Main dimensions, V-PLA-ST3 [mm]: VESA, VL-PLA-ST3: 600x400, 600x200, 600x100 400x400, 400x200, 400x100 300x300, 200x200, 200x100...
- Page 6 Electric TV Lift, VL-PLA-ST2-ST3 3. Anti squeeze – auto reverse function (ASAR). THE FACTORY DEFAULT SETTING OF ASAR = OFF. The system can be set to ‘ON’ for the downward stroke only, either for upside up or upside down installation. See page 12 for instructions. The anti-squeeze incorporates auto-reverse.
- Page 7 Lift unit ( #1 ) Lid lifter ( #2 ) Lift brackets ( #3 ) TV mounting brackets ( #4 ) (VL-PLA-ST3 only) R.F. Module ( #5 ) Remote control ( #6 ) AC input wire, country configured ( #7 )
- Page 8 Electric TV Lift, VL-PLA-ST2-ST3 . Installation. (Proceed only after having read the previous pages) 1) Check box contents with page 6 and read the remote RF instruction. Connect the lift (#1) to the RF Module (#5). Only once all other connections have been made plug power supply (#7) into the wall socket.
- Page 9 Electric TV Lift, VL-PLA-ST2-ST3 7) Make connections as no.1 above. Refer to the connection diagram. Only once all other connections have been made plug power supply (#10) into the wall socket. Test the lift fully up and down. 8) Fitting the VESA bracket if required: VESA sizes such as 200x200 and 200x100 do not require the bracket and should be fixed with your own suitable dome head Allen screws directly through the holes in the TV lift.
- Page 10 Electric TV Lift, VL-PLA-ST2-ST3 6. RF remote system. Installation o connect the power supply and the motor unit to the remote re- ceiver. 2 different plug sizes make this connection only possi- ble to make in the right way o after having connected the plugs, the blue light will be lit o push the emitter buttons and the motor unit will move up and down...
- Page 11 Electric TV Lift, VL-PLA-ST2-ST3 Change of battery in RF emitter, type 27A/12V 1.) Remove the three screws on back side 2.) Remove the lid on back side 3.) Lift up old battery. In case of a leaking battery wear protection gloves. 4.) Place new battery with positive polarity pointing to the mark VCC on the PCB.
- Page 12 Electric TV Lift, VL-PLA-ST2-ST3 . Feature functions and settings. Several features are controlled by using Jumpers. A Jumper is either set or open. See ex- ample below. Example of Jumper settings. Jumper Aux = set Jumper Rev = open Jumper Off = set Jumper M/L = set a.
- Page 13 Electric TV Lift, VL-PLA-ST2-ST3 8. Adjusting the stroke length of the lift. Adjusting the bottom stop: The bottom stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way down into the cabinet. You can adjust just one or both end stops. Fig.
- Page 14 Electric TV Lift, VL-PLA-ST2-ST3 Adjusting the top stop: The top stop can be adjusted to any preferred height, e.g. if you don’t want the lift to go all the way up out of the cabinet. You can adjust just one or both end stops. Fig.
