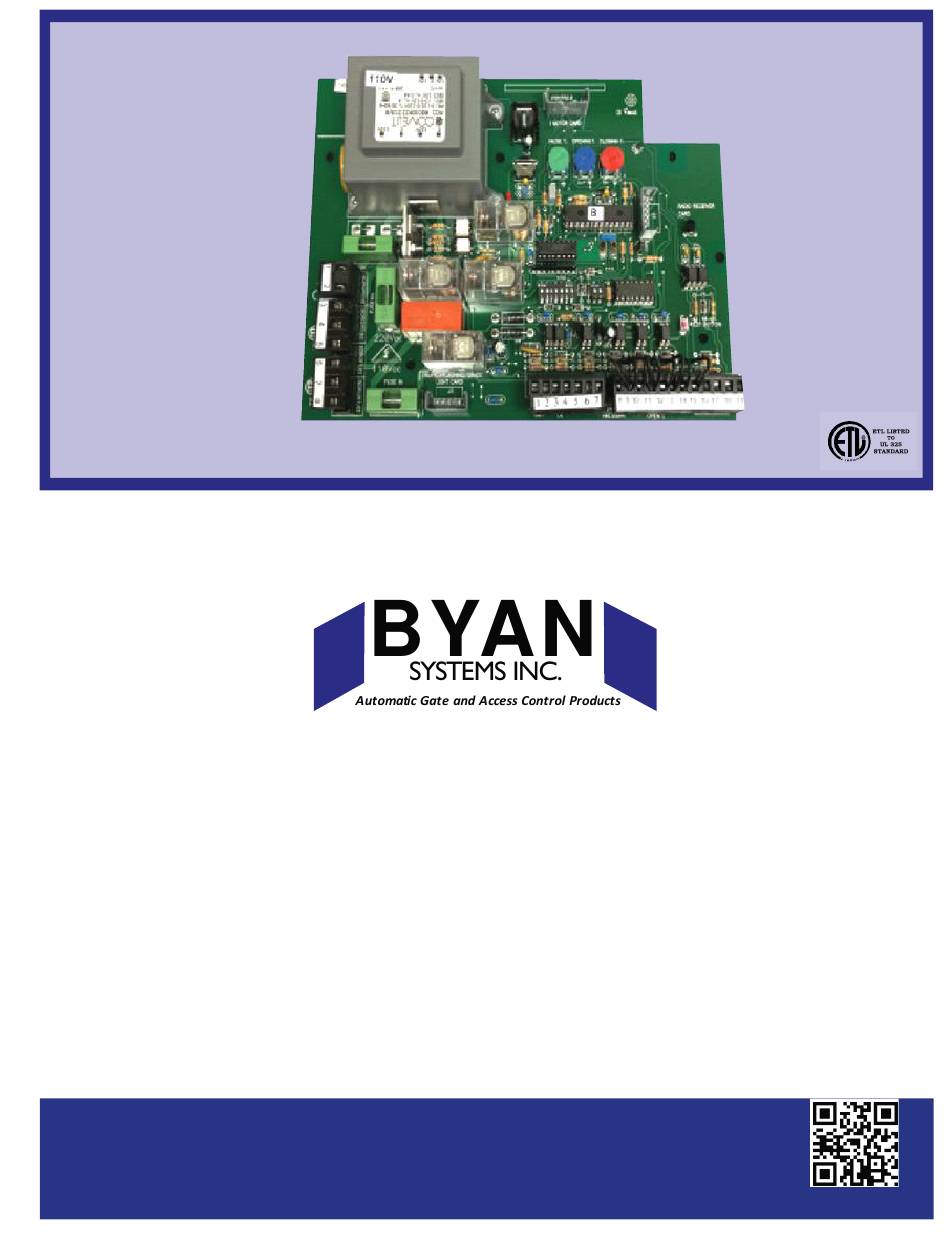

G2M Classic Control Board
Power Supply:
Motor Power Consumption:
Electric Lock Output:
Accessory Power Output:
Input Power Fuse:
Motor Power Fuses:
307.334.2865
Fax: 307.334.2028
P.O. Box 1384
|
Installation and Operators Manual
Specifications:
413 South Linden Street
Single-Phase 115-Volt or 220-Volt 50/60 Hz AC
2-Amp, 250-Volt; 5mm x 20mm Tubular Glass
6-Amp, 250-Volt; 5mm x 20mm Tubular Glass
www.byan.com
Toll Free: 800.223.2926
|
Lusk, Wyoming 82225
-1-
BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1
Up to 550 Watts or 3/4 HP
12-Volt DC 1-Amp Maximum
24-Volt AC 1-Amp Maximum
Advertisement
Table of Contents
Summary of Contents for Byan Systems G2M
- Page 1 2-Amp, 250-Volt; 5mm x 20mm Tubular Glass Motor Power Fuses: 6-Amp, 250-Volt; 5mm x 20mm Tubular Glass www.byan.com 307.334.2865 Fax: 307.334.2028 Toll Free: 800.223.2926 P.O. Box 1384 413 South Linden Street Lusk, Wyoming 82225 BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1...
- Page 2 BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1...
-
Page 3: Table Of Contents
20x16 Prewired Enclosure Wired to Linear GRD Receiver ..................Page 23 Troubleshooting Guide ............................Page 24 T2M Leaf Delay Card .............................. Page 25 Circuit Operation ..............................Page 26 Final System Warnings ............................Page 27 Byan Systems, Inc. Warranty Information ......................Page 28 BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 4: Product Warning
QUALIFIED TECHNICAL PERSONNEL As a Byan Systems gate installer, you MUST inform your customer about all safety equipment that should be installed on each job site. This is in accordance with your legal liability to your customer. Ensure that the protection and warning signaling devices are operational and visible. -
Page 5: G2M Classic Board Description
BYAN SYSTEMS G2M CLASSIC CONTROL BOARD The G2M is a single phase, microprocessor controlled unit. It is capable of controlling up to two ¾-hp, 115-volt or 220-volt AC motors. Two different plug in accessory cards are available for the G2M: a leaf delay card (which comes standard with every board), and a traffic light card (which is available separately). -
Page 6: Terminal Information
Terminal Strips: There are two sets of terminals on the G2M control board. The first terminal strip is the Power and Motor Run Terminal Block, located on the left side of the board below the transformer. This is where the incoming commercial power and the outgoing power to the operators are connected. -
Page 7: Accessory Terminal Table
The second terminal strip is the Accessory Terminal Strip. This is where ALL of the accessories are connected to the controller board. This terminal strip is located on the bottom right of the G2M Controller Board. This terminal strip consists of two socketed blocks to allow you to unplug the connector as a whole without removing wires. The drawings on Pages 10-12 are color-coded for ease in determining wiring connections for accessories. -
Page 8: Accessory Hook-Up
Accessory Hook-Ups*: There are many accessories available that are compatible with the G2M that will give the end user different options for safety, security, and system operations. Since it would be impossible to outline all possible combinations, we will simply outline a few of the most common. Keep in mind; these instructions are specific to the brand and model most commonly used by Byan Systems. -
Page 9: Timing Potentiometers
When turned on, maximum opening and closing time is extended Double Timing from 30 Seconds to 1 Minute and maximum pause time is extended from 45 Seconds to 1 Minute 30 Seconds. BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 10: 12X10 Prewire Layout
24-Volt AC Common (Black) 24-Volt AC Positive (Red) People Safe (Normally Closed) (White) Common Safety Car Safe (Blue) Common Open/Reversing (Green) Command Open (Normally Open) (Purple) Command Reversing (Normally Open) (Orange) -10- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 11: 20X16 Prewire Layout
D a u g h te r C a rd J P 1 (Optional) MAG-LOCK RELAY 6 A m p s (Optional) SHADOW RELAY POWER TERMINALS Terminal Block 2 Terminal Block 4 Terminal Block 1 -11- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 12: 24X20 Prewire Layouts
JP 1 SHADOW 6 Amps RELAY (Optional) MAG-LOCK POWER TERMINALS RELAY (Optional) Terminal Block 9 Daughter Card JP 1 6 Amps SHADOW RELAY POWER TERMINALS (Optional) MAG-LOCK RELAY (Optional) Terminal Block 10 -12- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 13: 24X20 Prewire Terminal Strip Guide
INTERRUPTED HIGH VOLTAGE 115-VOLT AC (WHITE) INTERRUPTED HIGH VOLTAGE 115-VOLT AC (BLACK) INTERRUPTED HIGH VOLTAGE 115-VOLT AC (WHITE) NOTE: WHEN LEAF DELAY IS ENGAGED, MOTOR 1 WILL OPEN FIRST AND MOTOR 2 WILL CLOSE FIRST. -13- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 14: 20X16 Prewired Enclosure With Safety, Shadow And Free Exit Bases Wired To 2 Sets Of Photobeams
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -14- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 15: 20X16 Prewired Enclosure With Safety And Free Exit Bases Wired To 2 Sets Of Photobeams
J P1 Optional Mag Lock Relay 6 Amps POWER TERMINALS -15- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 16: 20X16 Prewired Enclosure With Shadow And Free Exit Bases Wired To 2 Sets Of Photobeams
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -16- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 17: 20X16 Prewired Enclosure With Shadow And Safety Bases Wired To 2 Sets Of Photobeams
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -17- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 18: 20X16 Prewired Enclosure Wired To Miller Edge Rband Rb-G-K10 Sensing Edge And Photobeams
Phot eam D I P 1 2 3 4 Optional Mag Lock Relay 6 Am ps Optional Shadow Relay POWER TERMINALS -18- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 19: Sensing Edge And Photobeams
Bu zze r OF F F re q u e n cy Ou t1 1 0 K Ou t2 1 0 K Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -19- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 20: 20X16 Prewired Enclosure Wired With A 24-Volt Dc Transformer
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -20- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 21: 20X16 Prewired Enclosure Wired With A 24-Volt Dc Transformer And 24-Volt Dc Photobeams
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -21- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 22: 20X16 Prewired Enclosure Wired To A Miller Edge Gem-104 And Normally Open Sensing Edge
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -22- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 23: 20X16 Prewired Enclosure Wired To Linear Grd Receiver
J P1 Optional Mag Lock Relay 6 Amps Optional Shadow Relay POWER TERMINALS -23- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 24: Troubleshooting Guide
Reverse the black and red directional wires either at the operator running the switched or at the board. wrong direction If, at any time, you have a question concerning the Byan Systems G2M control board, call (800) 223-2926 for technical support. -24- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 25: T2M Leaf Delay Card
Motor Two Limit Switch Common Installation Instructions: To install the leaf delay card, simply plug it into the card slot marked “2 Motor Card” on the G2M Control Board. Adjustment Procedure: 1. To set the amount of delay between the first leaf opening and the second leaf opening, turn the Open Delay Timer (left timer) with a small screwdriver. -
Page 26: Circuit Operation
5 Seconds to 1 Minute Opening and Closing Time (x2) 1 Minute to 2 Minutes Radio Control Card Optional Second Motor Card Optional Flashing Card Optional Temperature Range -40ºF to 185ºF -26- BYAN G2M CLASSIC CONTROL BOARD | Rev. 2019.6.1... -
Page 27: Final System Warnings
FINAL SYSTEM WARNINGS Following all of the setup instructions, you should now have a working system with moving components. Byan Systems, Inc. issues the following warnings for your safety: THIS EQUIPMENT USES HIGH VOLTAGE. TO REDUCE THE RISK OF SEVERE INJURY OR DEATH, FOLLOW ALL INSTALLATION INSTRUCTION MOVING GATE CAN CAUSE SERIOUS INJURY OR DEATH. -
Page 28: Byan Systems, Inc. Warranty Information
God. All implied warranties for fitness are limited in duration to sixty months from date of sale by BYAN SYSTEMS, INC. Some states do not allow for the length of the term of this implied warranty, so this limitation may not apply to you. This warranty by BYAN SYSTEMS, INC. is in lieu of all warranties expressed or implied.
