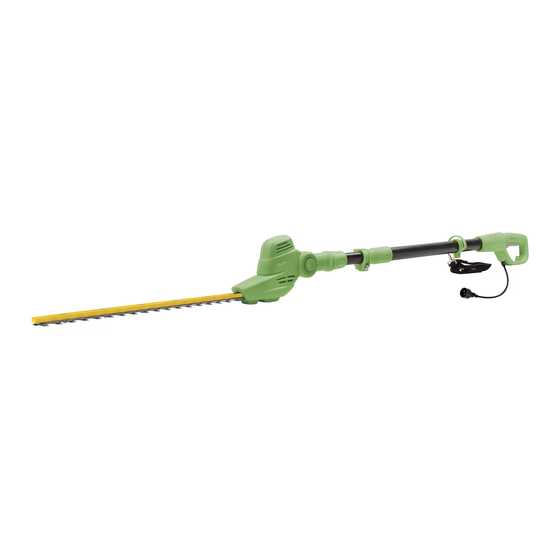

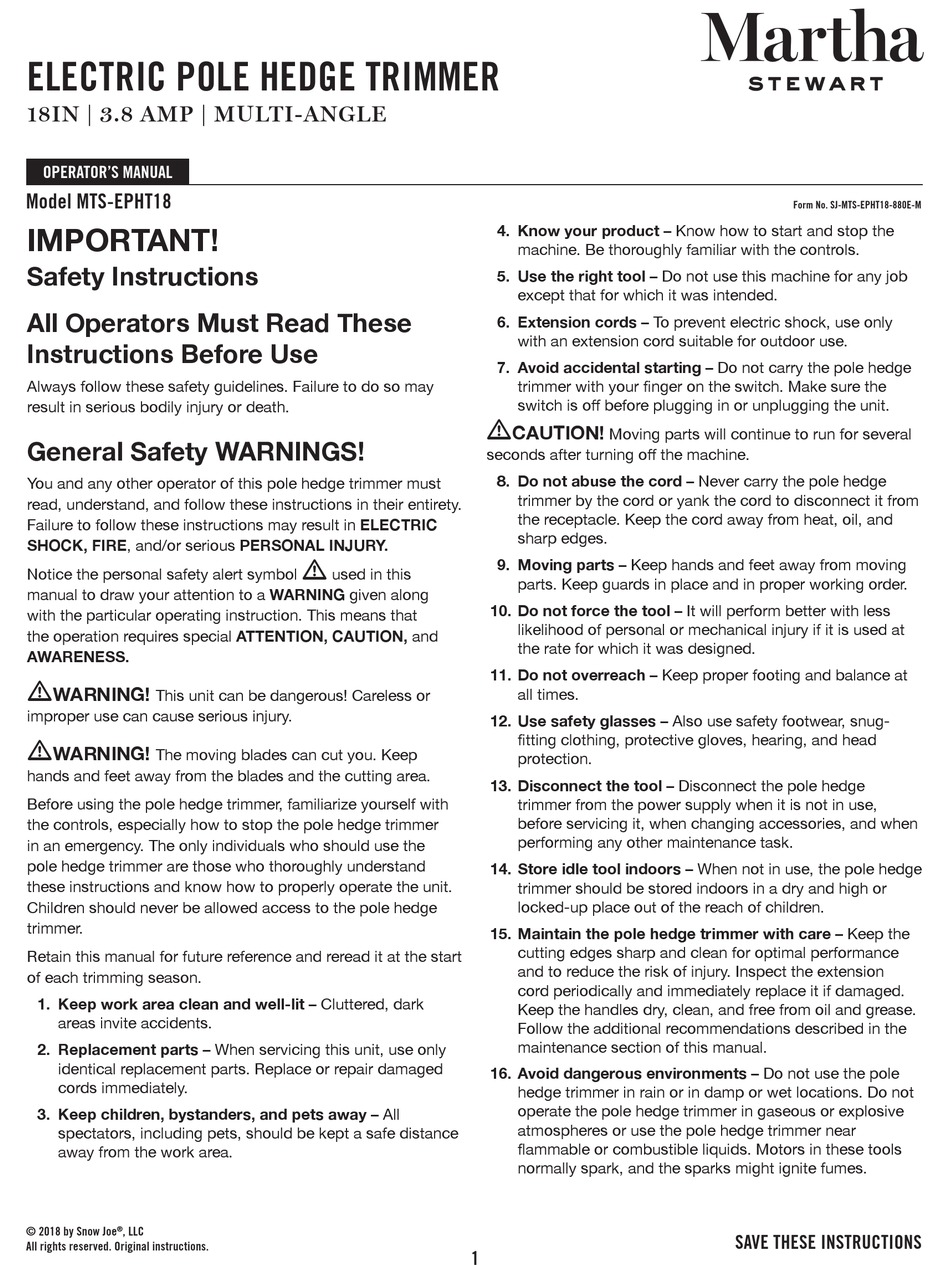

ELECTRIC POLE HEDGE TRIMMER
18IN | 3.8 AMP | MULTI-ANGLE
OPERATOR'S MANUAL
Model MTS-EPHT18
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
General Safety WARNINGS!
You and any other operator of this pole hedge trimmer must
read, understand, and follow these instructions in their entirety.
Failure to follow these instructions may result in ELECTRIC
SHOCK, FIRE, and/or serious PERSONAL INJURY.
Notice the personal safety alert symbol
manual to draw your attention to a WARNING given along
with the particular operating instruction. This means that
the operation requires special ATTENTION, CAUTION, and
AWARENESS.
m
WARNING!
This unit can be dangerous! Careless or
improper use can cause serious injury.
m
WARNING!
The moving blades can cut you. Keep
hands and feet away from the blades and the cutting area.
Before using the pole hedge trimmer, familiarize yourself with
the controls, especially how to stop the pole hedge trimmer
in an emergency. The only individuals who should use the
pole hedge trimmer are those who thoroughly understand
these instructions and know how to properly operate the unit.
Children should never be allowed access to the pole hedge
trimmer.
Retain this manual for future reference and reread it at the start
of each trimming season.
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
3. Keep children, bystanders, and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
© 2018 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
m
used in this
1
4. Know your product – Know how to start and stop the
machine. Be thoroughly familiar with the controls.
5. Use the right tool – Do not use this machine for any job
except that for which it was intended.
6. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
7. Avoid accidental starting – Do not carry the pole hedge
trimmer with your finger on the switch. Make sure the
switch is off before plugging in or unplugging the unit.
m
CAUTION!
Moving parts will continue to run for several
seconds after turning off the machine.
8. Do not abuse the cord – Never carry the pole hedge
trimmer by the cord or yank the cord to disconnect it from
the receptacle. Keep the cord away from heat, oil, and
sharp edges.
9. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
10. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
11. Do not overreach – Keep proper footing and balance at
all times.
12. Use safety glasses – Also use safety footwear, snug-
fitting clothing, protective gloves, hearing, and head
protection.
13. Disconnect the tool – Disconnect the pole hedge
trimmer from the power supply when it is not in use,
before servicing it, when changing accessories, and when
performing any other maintenance task.
14. Store idle tool indoors – When not in use, the pole hedge
trimmer should be stored indoors in a dry and high or
locked-up place out of the reach of children.
15. Maintain the pole hedge trimmer with care – Keep the
cutting edges sharp and clean for optimal performance
and to reduce the risk of injury. Inspect the extension
cord periodically and immediately replace it if damaged.
Keep the handles dry, clean, and free from oil and grease.
Follow the additional recommendations described in the
maintenance section of this manual.
16. Avoid dangerous environments – Do not use the pole
hedge trimmer in rain or in damp or wet locations. Do not
operate the pole hedge trimmer in gaseous or explosive
atmospheres or use the pole hedge trimmer near
flammable or combustible liquids. Motors in these tools
normally spark, and the sparks might ignite fumes.
Form No. SJ-MTS-EPHT18-880E-M
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTS-EPHT18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Martha Stewart MTS-EPHT18

  • Page 1 ELECTRIC POLE HEDGE TRIMMER 18IN | 3.8 AMP | MULTI-ANGLE OPERATOR’S MANUAL Model MTS-EPHT18 Form No. SJ-MTS-EPHT18-880E-M IMPORTANT! 4. Know your product – Know how to start and stop the machine. Be thoroughly familiar with the controls. Safety Instructions 5. Use the right tool – Do not use this machine for any job except that for which it was intended.
  • Page 2 17. Stay alert – Watch what you are doing. Use common 11. Keep all parts of the body away from the cutting blade. Do sense. Do not operate the pole hedge trimmer when you not remove cut material or hold material to be cut when are tired or under the influence of drugs, alcohol, or other blades are moving.
  • Page 3: Residual Risks

    16. Never use replacement parts or accessories not provided Switch the product off, disconnect it from the power supply and take the following steps: or recommended by the manufacturer. 17. The use of this product may be restricted by regional or –...
  • Page 4: Electric Safety

    WARNING! polarized wall outlet. The extension cord plug will fit into This product produces an electromagnetic the polarized wall outlet only one way. If the plug does field during operation. This field may under some not fit fully into the wall outlet, reverse the plug. If the plug circumstances interfere with active or passive medical still does not fit, contact a qualified electrician to install implants! To reduce the risk of serious or fatal injury, we...
  • Page 5: Double-Insulated Appliances

    Double-Insulated Appliances In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double- insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe + Sun Joe...
  • Page 6: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, SAFETY ALERT –...
  • Page 7: Technical Data

    Know Your Electric Telescoping Pole Hedge Trimmer Read the owner’s manual and safety instructions carefully before operating the electric pole hedge trimmer. Compare the illustration below to the electric pole hedge trimmer in order to become familiar with the location of the various controls and adjustments.
  • Page 8: Carton Contents

    Unpacking Fig. 1 Trimmer head Locking Carton Contents knob • Electric hedge trimmer head Telescoping Locking base pole • Rear handle with telescoping pole • Blade cover • Shoulder strap Lock hole • Manuals with registration card 1. Carefully remove the electric pole hedge trimmer and check to see that all of the above items are supplied.
  • Page 9: Operation

    2. Make a loop in the extension cord and push it up through the hole in the handle and around the cord restraint hook, Fig. 3 then connect the extension cord to the appliance cord (Fig. 5). Bracket Fig. 5 Carabiner hook Cord restraint hook Extension cord...
  • Page 10 Adjusting the Telescoping Pole Do not attempt to use the pole hedge trimmer at a length which does not allow you to achieve proper footing and 1. Disconnect the pole hedge trimmer from the power supply. balance at all times! 2.
  • Page 11: General Operation

    Cutting Tips 4. Ensure the trimmer head is locked in position when the button is released. WARNING! Always hold the pole hedge trimmer with NOTE: Failure to properly secure the trimmer head may both hands. Never hold shrubs with one hand and operate result in personal injury and/or property damage.
  • Page 12 1. To use the pole hedge trimmer for trimming tall, hard-to- CAUTION! Do not use the pole hedge trimmer for read hedges or shrubs, hold the trimmer at the position cutting stems greater than 0.70" (1.8 cm) (or approximately shown below (Fig. 12). Pivot the power head to several 3/4 in.
  • Page 13: Recycling + Disposal

    1. Stop the motor and disconnect from the power supply. 2. Lubricate the pole hedge trimmer as described above. If your Martha Stewart MTS-EPHT18 electric pole hedge ® 3. Reconnect to the power source and resume use. trimmer requires service or maintenance, please call the...
  • Page 14: Troubleshooting

    Troubleshooting Problems Possible Cause Possible Solution Product does not • Not connected to power supply. • Connect to power supply. start • Power cord or plug is defective. • Please call the Snow Joe + Sun Joe customer ® ® service center at 1-866-SNOWJOE (1-866-766-9563) •...
  • Page 15 SNOW JOE + SUN JOE CUSTOMER PROMISE ® ® ABOVE ALL ELSE, Snow Joe + Sun Joe are dedicated to you, our customer. We strive to make your experience as pleasant ® ® as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it’s important that you know what you can expect from us.
  • Page 16 snowjoe.com...
