prosilica

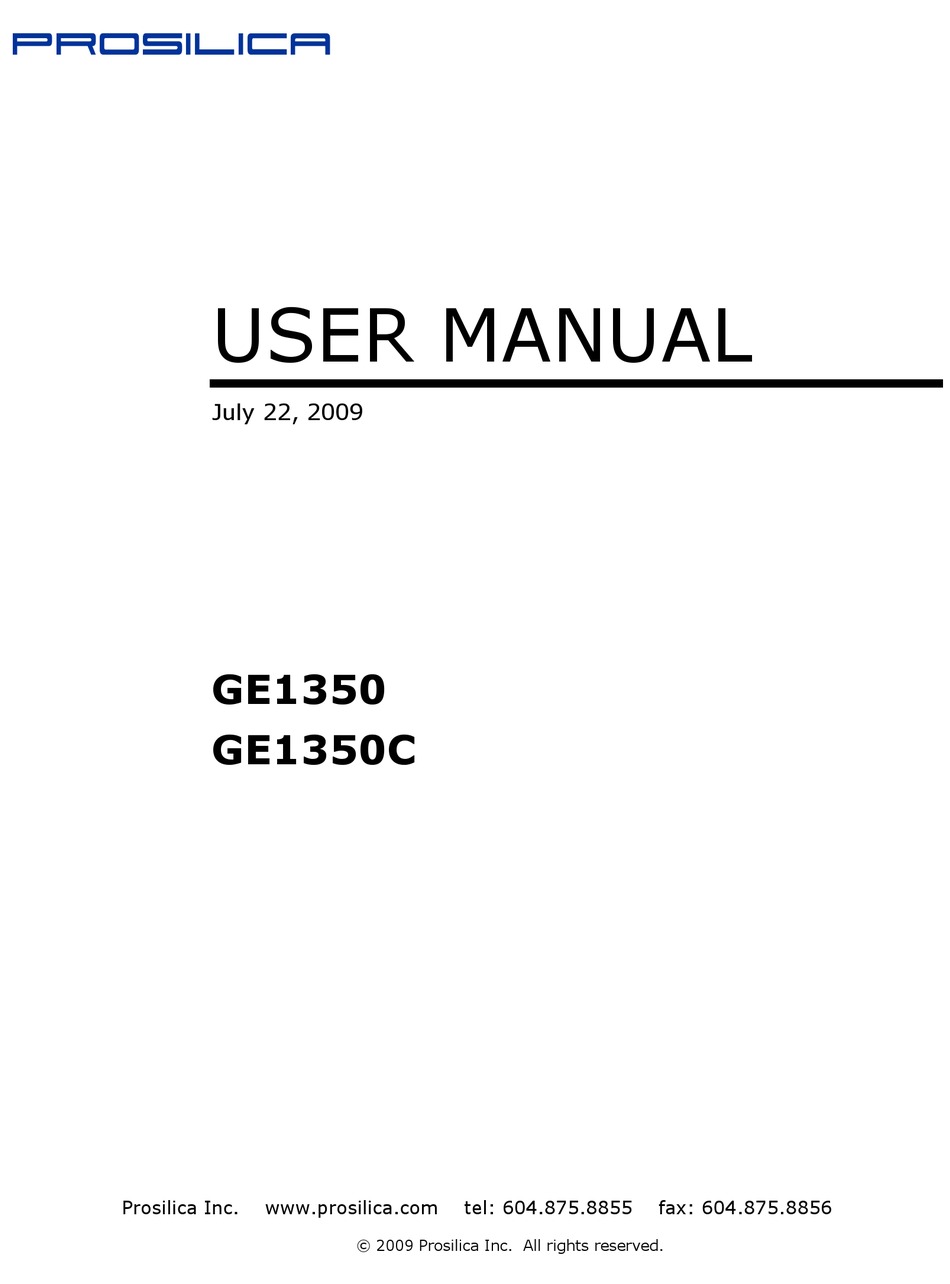

USER MANUAL
July 22, 2009
GE1350
GE1350C
Prosilica Inc.
www.prosilica.com
tel: 604.875.8855
fax: 604.875.8856
© 2009 Prosilica Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE1350 and is the answer not in the manual?

Questions and answers

Related Manuals for Prosilica GE1350

Summary of Contents for Prosilica GE1350

  • Page 1 USER MANUAL July 22, 2009 GE1350 GE1350C Prosilica Inc. www.prosilica.com tel: 604.875.8855 fax: 604.875.8856 © 2009 Prosilica Inc. All rights reserved.

  • Page 2: Table Of Contents

    GE1350 User Manual 70-0013A-D Table of Contents Table of Contents..........................ii Introduction ..........................1 Precautions ..........................1 Warranty............................1 Specifications ..........................2 Supported Features ........................3 Mechanical ..........................4 Connections ..........................5 Cleaning the Sensor........................10 Adjusting the C-mount ......................11 Camera Installation........................12 System Optimization .........................17 Trouble Shooting........................19 Addendum............................22 GE IO Schematic........................23...

  • Page 3: Introduction

    Prosilica provides a 2 year warranty which covers the replacement and repair of all Prosilica parts which are found to be defective in the normal use of this product. Prosilica will not warranty parts which have been damaged through the obvious misuse of this product.

  • Page 4: Specifications

    GE1350 User Manual 70-0013A-D Specifications Sensor Type Sony ICX205AL CCD (ICX205AK for color) Sensor Shutter Type Progressive Interline Image Resolution 1360 x 1024 pixels Pixel Size 4.65µm x 4.65µm Optical Format 1/2 inch Lens Mount C-mount with adjustable back focus †...

  • Page 5: Supported Features

    GE1350 User Manual 70-0013A-D Supported Features Imaging Modes free-running, external trigger, fixed rate, software trigger Fixed Rate Control 0.001 fps to maximum frame rate External Trigger Delay 0 to 60 seconds in 1 microsecond increments External Trigger Event rising edge, falling edge, any edge, level high, level low...

  • Page 6: Mechanical

    GE1350 User Manual 70-0013A-D Mechanical 3MM DEEP 6 PLCS TYP 20.2* 79.6* 51.3 All dimensions are in mm. * Add 0.3mm for color cameras due to addition of I R blocking filter. 39.1 Figure 1. GE SERIES mechanical dimensions. Prosilica Inc.

  • Page 7: Connections

    GE1350 User Manual 70-0013A-D Connections Figure 2. GE SERIES connection diagram. Prosilica Inc.
  • Page 8 GE1350 User Manual 70-0013A-D Item 1: GIGABIT ETHERNET PORT This port conforms to the IEEE 802.3 1000BASE-T standard for Gigabit Ethernet over copper. It is recommended that CAT5E or CAT6 compatible cabling and connectors be used for best performance. Cable lengths up to 100m are supported.
  • Page 9 GE1350 User Manual 70-0013A-D Sync Out 2 and Sync Out 3 These signals only function as outputs and can be configured as follows: Exposing Corresponds to when camera is integrating light. Trigger Ready Indicates when the camera will accept a trigger signal.
  • Page 10 GE1350 User Manual 70-0013A-D Item 4: Mini-SMB Sync Out 1 This Mini-SMB port on the camera uses an Amphenol 903-406J-51R connector. A suitable mating cable connector is Amp 413985-3 which can be used with RG174 coaxial cable. Contact Prosilica to purchase cabling.
  • Page 11 This port is required to provide power to the camera. This port provides threaded captivation of the power cable if required. The captivated cable mating connector is the Switchcraft 760K. This connector can be purchased from Prosilica or from http://www.digikey.com.

  • Page 12: Cleaning The Sensor

    Repeat this process until the debris is gone. If this process fails to remove the debris, then contact Prosilica. Prosilica Inc.

  • Page 13: Adjusting The C-Mount

    Use an adjustable wrench to loosen locking ring. Be careful not to scratch the camera. When the locking ring is loose, unthread the ring a few turns from the camera face. A wrench suitable for this procedure can be provided by Prosilica (P/N 11-0048A). Image to Infinity Use a c-mount compatible lens that allows an infinity focus.

  • Page 14: Camera Installation

    Camera Installation Computer Interface The Prosilica GE Series cameras will work with any Gigabit Ethernet network card; however Prosilica strongly recommends using Gigabit Ethernet components that support Jumbo Frames. A Jumbo Frame is loosely defined as a frame size greater than 1500 bytes however typical Jumbo Frames are around 9000 bytes.
  • Page 15 GE1350 User Manual 70-0013A-D Gigabit Ethernet Setup for Windows o Install network card in computer. o Boot the PC and cancel the “Found new Hardware Wizard” window that may appear when Windows detects the new card. o Install the driver that came with the network card.
  • Page 16 GE1350 User Manual 70-0013A-D o Select the Internet Protocol (TCP/IP) check box and then select Properties. See Figure 6. Network card TCP/IP address.. Select the Use the following IP address and enter an IP address of 169. 254. x. y, where x and y can be any number. Press the TAB key after entering the IP address and the subnet mask will automatically be entered.
  • Page 17 The camera can be triggered either through the 12 pin general purpose connector or the mini- SMB input. The compatible cable connectors are specified in the Connections section of this document or contact Prosilica to purchase compatible cabling. Prosilica provides SMB-to-SMB or SMB-to-BNC cabling of varying lengths.
  • Page 18 Plug in the Prosilica camera via the Gigabit Ethernet port. Plug in the power connection. Verify that the Status LED 1 is a solid green. Run the Prosilica GigE Viewer Application. It will take a few seconds for the camera to be recognized. If the camera does not appear in the Viewer list after approximately 10 seconds then try disconnecting and reconnecting the power.

  • Page 19: System Optimization

    GE1350 User Manual 70-0013A-D System Optimization o Open the Network Connections Dialog as follows: From the Windows desktop select start, then select Control Panel, then double click on the Network Connections icon. Double click the relevant network card listed or right-click the relevant network card and select Properties.
  • Page 20 GE1350 User Manual 70-0013A-D Figure 10. Network card advanced settings. o Set Maximum Frame Size or Jumbo Frames to the maximum possible value. A typical value is 9000. If the list contains a property called Receive Descriptors, then change this value to its maximum value.

  • Page 21: Trouble Shooting

    The right LED is the camera power indicator. If unlit, check the power adaptor. If possible, swap with one that is known to work. If using a custom power adaptor, be sure the adaptor and wire gauge is rated to at least 500 mA. If the right LED still does not light up, contact Prosilica support.
  • Page 22 GE1350 User Manual 70-0013A-D The following example is not on the same Subnet: NIC IP 169.250.23.2 Subnet Mask: 255.255.255.0, CamIP 169.254.13.0 Subnet Mask: 255.255.0.0. This can happen if you use a non AutoIP range on your NIC and it doesn’t have access to a DHCP server. Either change your NIC IP to be in the AutoIP range, or fix the camera IP address to be on the same subnet as your NIC.
  • Page 23 • All packets completing as normal, but black image. Check ExposureValue, ExposureMode, and be sure your scene is suitably lit. If you are still having problems acquiring images, please send your camera settings file (click on the disk icon in SampleViewer) to support@prosilica.com. Saving camera setting file Prosilica Inc.

  • Page 24: Addendum

    GE1350 User Manual 70-0013A-D Addendum Prosilica Inc.

  • Page 25: Ge Io Schematic

    GE1350 User Manual 70-0013A-C GE IO Schematic HIROSE HR10A-10R-12SB CAMERA INTERNAL CIRCUIT TRIGGER INPUT SY NC OUT 2 SY NC OUT 3 RS-232 RXD RS-232 TXD TEXAS INSTRUMENTS SN74ACT244PWR 1Y 1 SY NC OUT 3 1Y 2 SY NC OUT 2...

  • Page 26: Hirose 12-Pin Trigger Schematic

    GE1350 User Manual 70-0013A-C Hirose 12-pin Trigger Schematic USERS TRIGGER CIRCUIT CABLE SIDE TRIGGER INPUT USER TRIGGER (5V TTL DRIVER) SY NC OUT 2 SY NC OUT 3 SY NC OUT 2 (5V TTL RECEIVER) SY NC OUT 3 (5V TTL RECEIVER)

  • Page 27: Mini-Smb Trigger Schematic

    GE1350 User Manual 70-0013A-C Mini-SMB Trigger Schematic USERS TRIGGER CIRCUIT RG-174 COAX CABLE MINI-SMB TRIGGER INPUT USER TRIGGER (5V TTL DRIVER) RG-174 COAX CABLE MINI-SMB SY NC OUT 1 SY NC OUT 1 (5V TTL RECEIVER) The trigger circuit is connected to a Texas Instruments SN74ACT244PWR buffer/driver inside the camera. The required trigger input current is less than 10uA and the maximum sync output current is 24mA.

  • Page 28: Trigger Timing Diagram

    GE1350 User Manual 70-0013A-C Trigger Timing Diagram Readout Time Trigger Latency Expose Start Registered Delay Exposure Time User Trigger Logic Trigger Exposure Trigger Jitter Readout Interline Time Trigger Ready Imaging Idle Prosilica Inc.

  • Page 29: Notes On Triggering

    GE1350 User Manual 70-0013A-C Notes on Triggering Definitions o User Trigger is the trigger signal applied by the user. o Logic Trigger is the trigger signal seen by the camera internal logic. o Tpd is the propagation delay between the User Trigger and the Logic Trigger.
  • Page 30 GE1350 User Manual 70-0013A-C Triggering during the Readout State o For applications requiring the fastest triggering cycle time whereby the camera image sensor is exposing and reading out simultaneously, then the User Trigger signal should be applied as soon as a valid Trigger Ready is detected.
