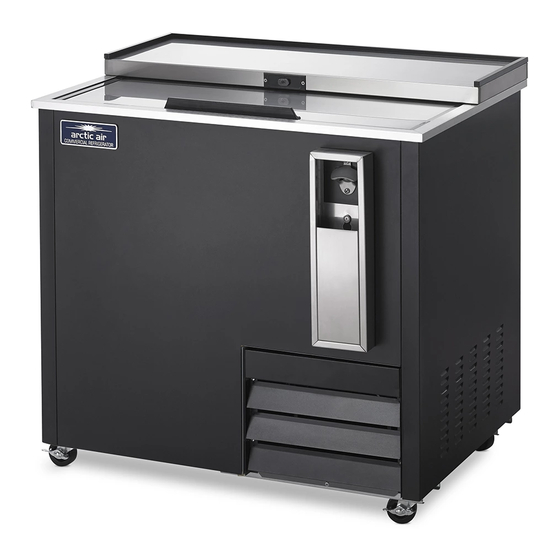

Bottle cooler

Advertisement

BOTTLE COOLER
BOTTLE COOLER
BOTTLE COOLER
BOTTLE COOLER
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUB36RZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Arctic Air AUB36RZ

  • Page 1 BOTTLE COOLER BOTTLE COOLER BOTTLE COOLER BOTTLE COOLER Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
  • Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
  • Page 3 Service and Installation Manual The appliance use flammable insulation blowing gas C5H10, disposal of the appliance shall in accordance with the regulations of local authorities. The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
  • Page 4: Specification

    TROUBLE SHOOTINGEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE.8 DISPOSALEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE8 SPECIAL PIONTS TO NOTEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE8 WIRING DIAGRAMEEEEEEEEEEEEEEEEEEEEEEEEEEEEEEE9 SPECIFICATION STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG AUB36RZ 115/60/1 2000 2.12 5-15P AUB50RZ 115/60/1 3200 2.47 5-15P AUB65RZ 115/60/1 5400 3.17 5-15P CONGRATULATIONS ON YOUR NEW COOLER Note these instructions apply to all coolers.
  • Page 5: Electrical Connection

    Service and Installation Manual ELECTRICAL CONNECTION The cooler must be connected to a socket with the correct voltage/frequency, as show on the nameplate. The standard for u.s is 115V/50HZ. Voltage variations of ±10% are acceptable. Greater variations can damage the cooler, and in such cases the factory warranty is not valid. In the case of extreme voltage variation, above or below the standard, your local supplier will be able to advise you, what to do.
  • Page 6: Operation

    Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans wilt run continuously even when one or more doors are open.
  • Page 7 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
  • Page 8: Maintenance

    Service and Installation Manual MAINTENANCE This cooler can be cleaned using warm water and a mild detergent. Rinse with clean water to finish off. Never use detergents that contain chlorine. The lid may be cleaned in the same way as the cooler. If a condenser and associated fan are fitted at the back bottom of the cooler, they can gather dust and dirt.
  • Page 9: Wiring Diagram

    Service and Installation Manual WIRING DIAGRAM MODEL: AUB36RZ / AUB50RZ / AUB65RZ...
  • Page 10 Service and Installation Manual WIRING DIAGRAM MODEL: AUB36RZ / AUB50RZ / AUB65RZ...
  • Page 11 Additional three-year compressor warranty* In addition to the two (2) year warranty stated above, Arctic Air warrants its compressor units to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation but not to exceed five (5) years and three (3) months after shipment from Arctic Air.
  • Page 12 Broich Enterprises, Inc. / Arctic Air 6440 City West Parkway Eden Prairie, MN 55344 Phone: 952-941-2270 Fax: 952-941-3066 Website: www.arcticairco.com...
