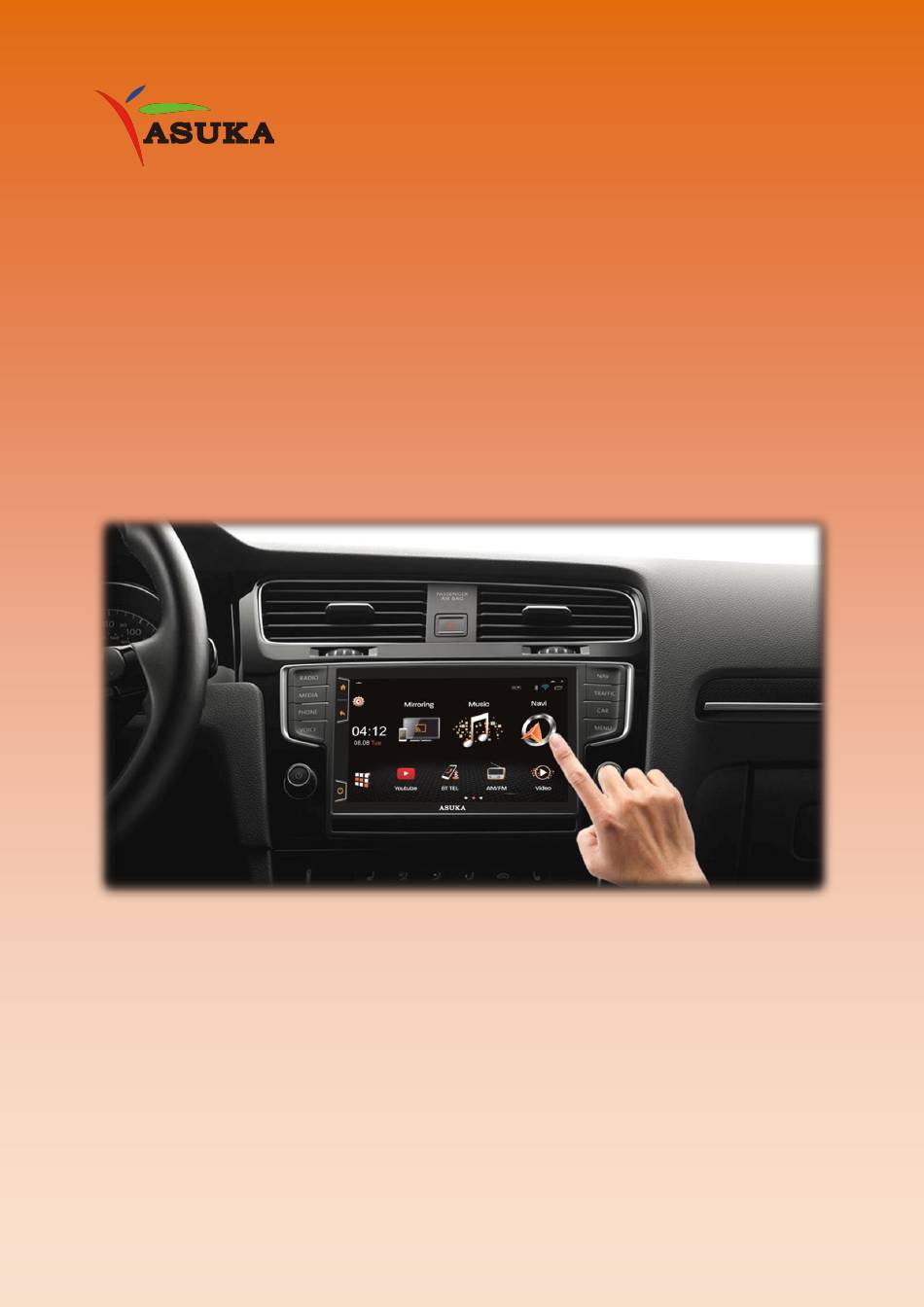

- Page 1 PTA-100TV 7-inch WiFi Multimedia Navi 2DIN User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction ......................4 Quick Start Guide ..................... 5 II.1 Turning the Power On ....................5 II.2 User Interface ......................6 II.3 Common Screen Operation ..................7 III. Bluetooth ........................8 III.1 Connect to Bluetooth ....................8 III.2 Bluetooth Dialing ....................9 Internet Access .......................10 Mirroring ........................ - Page 3 PRECAUTIONS IMPORTANT o ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGS and CAUTIONS in this manual. Please keep the manual in a safe and accessible place for future reference. WARNINGS: (To prevent accidents and damage) DO NOT install any unit or wire any cable in a location where:...
-
Page 4: Introduction
Introduction ASUKA PTA-100 is a revolutionary In-car entertainment product designed to satisfy all users’ desire to access the internet while in car. On-line entertainment is beyond traditional broadcasting services & pre-recorded media contents; it brings you more entertaining and smarter user experience than ever before. -
Page 5: Quick Start Guide
Quick Start Guide II.1 Turning the Power On Turn on the ACC or IGN of the vehicles. When the head unit is activated, you will see a reminder after startup screen Now you can touch any icon on the screen to activate the corresponding function. -
Page 6: Ii.2 User Interface
II.2 User Interface User Interface Introduction On the left side of the screen, there are three touch keys. Home Screen... -
Page 7: Ii.3 Common Screen Operation
II.3 Common Screen Operation Touch Touch the screen gently to select the item on the screen. Touch and Hold Touch the screen and keep your finger in place until display changes allow you to drag the icon to the position you want it to be. Swipe ... -
Page 8: Bluetooth
1. Turn on the Bluetooth function of your mobile devices. Example of Android Devices iOS Devices 2. Select “Bluetooth” under Settings.” Select the device you want to pair. 3. When the mobile device is paired with PTA-100TV successfully, the indicator on the screen will turn to orange. -
Page 9: Iii.2 Bluetooth Dialing
III.2 Bluetooth Dialing Dial out using keypads and contact list. Option 1 Keypads Option 2 Contact List... -
Page 10: Internet Access
1. Turn on the hotspot of your mobile device. Example of Android Devices iOS Devices 2. Select “WiFi” under “Settings” of PTA-100TV home menu 3. Select the name of hotspot shared by the mobile phone and key in the requested password. -
Page 11: Mirroring
Mirroring This function allows users to cast the mobile device to the screen of the head unit. PTA-100TV supports two ways of Mirroring: via Miracast for Android and via HDMI for iPhone. V.1 Android Step 1: Make sure your mobile device is Miracast-compatible. - Page 12 Adapter Step 5: You should be able to see your iOS image on PTA-100TV.
-
Page 13: Radio
Radio 1. Scan Button 2. Add to Favorite 3. Equalizer Settings 4. Mute 5. Drag to change frequency 6. AM/FM band Switch. 7. Manual tune backward 8. Display current frequency 9. Manual tune forward 10. Searches for stations 11. Preset list button 12. -
Page 14: Music
VII. Music There are two options to choose to play music [USB] and [Bluetooth] Basic Music Interface... - Page 15 Listen to Music by Bluetooth Before selecting Bluetooth, pair PTA-100TV to your mobile device. [See Page8]...
-
Page 16: Video
VIII. Video Video Interface... -
Page 17: Digital Television
Digital Television Digital Television is an optional for countries except United States of America. Select TV icon to watch DTV DTV Interface To change language by select [Setting]... - Page 18 Select [CH Scan] to search for the available channels automatically Use [CH] / [CH] or Select CH List to change channels...
-
Page 19: Steering Wheel Control
Steering wheel controls allow drivers to keep their eyes on the road. Step 1: Select [SETUP ICON] then [SWC] Step 2: Select VOL+ on PTA-100TV Step 3: Press and hold the function button on the steering wheel, wait until the display shows paired. -
Page 20: Reference
The surface is easily scratched, so do not rub it with hard objects. XI.2 Troubleshooting What appears to be trouble is not always serious. Check the following points before calling dealers/ASUKA. General No sound comes out of the speakers. -
Page 21: Installation/ Wire Connection Guide
XII. Installation/ Wire Connection Guide XII.1 Precautions on installation and connection • Mounting and wiring this product requires skills and experience. For best safety, leave the mounting and wiring work to professionals. • Make sure to ground the unit to a negative 12 V DC power supply. •... -
Page 22: Xii.2 Wiring Information
XII.2 Wiring Information Color Function Color Function White Green White/Black Green/Black Grey Purple Grey/Black Purple/Black Pink BRAKE Yellow BAT+ Orange Black(Thick) Red/Black Blue/White SWC 1 Blue ANT+12V Brown REVERSE Blue/Black SWC 2 Black SWC GND Red/White... -
Page 23: Xii.3 Installation Procedure
XII.3 Installation procedure 1. To prevent a short circuit, remove the key from the ignition and disconnect the Negative (-) battery. 2. Make the proper input and output wire connections for each unit. 3. Connect the speaker wires of the wiring harness. 4. - Page 24 • To improve the GPs signal reception, install the GPs antenna horizontally on a flat plane. • Do not wax or paint the cover of the GPS antenna. This may reduce the performance of the GPS antenna. • Wipe off the dirt of the mounting surface before installing the GPS antenna.
-
Page 25: Customer Service
XIV. Customer Service ASUKA Autotronics Inc. Email: sales@asuka-autotronics.com Tel: +886 3-666-7117 http://www.asuka-autotronics.com Thanks for your support; we hope you enjoy our product.
