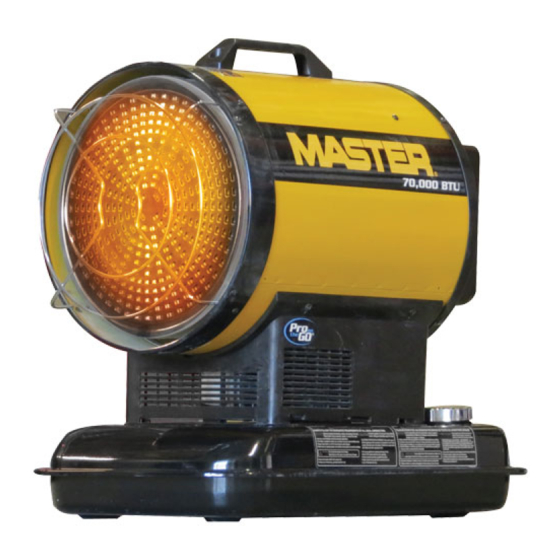

Kerosene radiant heater

Advertisement

Quick Links

CONSUMER: READ AND SAVE THESE INSTRUCTIONS
DANGER
SERVICING THE HEATER. Be sure to comply with the instructions and warnings provided
with this heater. Failure to comply can result in fire or explosion that can cause property
loss, bodily injury, or loss of life. Only persons who can follow and understand these
instructions should operate or service this heater. If you need heater info; such as an
operating manual, labels, etcetera, contact Pinnacle Climate Technologies at
800-779-3267.
DANGER
FOR: THE TEMPORARY HEATING OF ADEQUATELY VENTILATED BUILDINGS
OR STRUCTURES UNDER CONSTRUCTION, ALTERATION OR REPAIR. This is an
unvented portable heater that uses air (Oxygen) from within the area in which it is used.
Failure to provide adequate combustion and ventilation air will result in asphyxiation, carbon
monoxide poisoning, bodily injury or death. Refer to "Ventilation" on Page 6.
WARNING
tions. Never use the heater in spaces which contain products such as; gasoline, solvents,
paint thinners, dust particles, volatile or airborne combustibles or any unknown chemicals.
This is an unvented portable heater. It uses air (Oxygen) from the area in which it is used.
Adequate combustion and ventilation air must be provided. Refer to "Ventilation" on page 6.
Bulk fuel storage should be a minimum of 25 feet from heater.
WARNING
OPERATING INSTRUCTIONS.
Failure to comply with the precautions and instructions provided with this
heater can result in death, serious bodily injury, property loss or damage
from the hazards of fire, soot production, explosions, burns, asphyxiation or
carbon monoxide poisoning. Only persons who can read and understand
these instructions should use or service this heater
U.S. Patent No. 9,644,863
Model Numbers
MH-70-SS-A / MH-125-OFR-A
Safety Information
GENERAL HAZARD WARNING:
READ AND UNDERSTAND ALL OF THE INSTRUCTIONS
IN THIS MANUAL BEFORE ASSEMBLING, STARTING, OR
NOT FOR USE IN RESIDENTIAL LIVING AREAS OR IN
ENCLOSED SPACES WITHOUT ADEQUATE VENTILATION.
FOR OUTDOOR USE. INDOOR USE PERMITTED ONLY
FIRE, BURN, INHALATION AND EXPLOSION HAZARD. Keep
combustibles such as; building materials, paper or cardboard a safe
distance away from the heater as recommended by these instruc-
DO NOT OPERATE THIS HEATER UNTIL
YOU HAVE READ AND THOROUGHLY
UNDERSTAND THESE SAFETY AND
Fax: 320-251-2922 • Web:
KEROSENE RADIANT HEATER
User's Manual &
Operating Instructions
.
1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free
www.masterindustrialproducts.com
© 2017 Pinnacle Climate Technologies, Inc.
Factory ID: 001
(800) 779-3267
• Email: info@pinnacleclimate.com
MARA-401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Master MH-70-SS-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pinnacle Climate Technologies Master MH-70-SS-A

  • Page 1 Only persons who can follow and understand these instructions should operate or service this heater. If you need heater info; such as an operating manual, labels, etcetera, contact Pinnacle Climate Technologies at 800-779-3267.
  • Page 2 100,000 Btu/Hr (29 kW) heater rating. Refer to in accordance with the instructions in this manual “Ventilation” on page 5 for further instructions. can result in death. People with breathing problems should consult a © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 3: Specifications

    Your serial number can be found on a blue label on the left side cover. For Example: S160901126. Have your Serial Number ready before calling customer service at 800-779-3267. © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 4 (BEHIND REMOVABLE COVER) 125-OFR Top Safety Guard Radiant Cone Handle Front Safety Guard Radiant Fuel Cap Visors Wheel Frame Adjustment Knob º Can Tilt Up To 15° Drain Bolt Wheel © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 5 (see Figure 3) . shell ring. Attach with screws removed in step 1 (see Figure 4 and 5). Figure 3 Figure 4 Figure 5 Heat Shield © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 6 5. Attach top safety guard using the two Figure 8 outer-most extra screws on the top of the radiant cone (see Figure 9). Note: Save the box and packaging materials for future storage. © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 7 - NEVER store Kerosene in the living space. Kerosene should be stored in a well ventilated area outside the living area. - NEVER store Kerosene in direct sunlight or near a source of heat. © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 8 (see Figure 11). will ignite (see Figure 10). Always keep outlet covered when not in use Electrical Outlet Power Switch 70-SS Only Figure 10 Figure 11 © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 9: Fan Blades

    Plug, clean the terminals with a wire brush. 1/4 of a turn counterclockwise to reduce the air Re-gap the terminals to 0.140” (3.5 mm) pressure until the unit is operating properly. (see Figure 12). © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 10 Figure 14b clean Kerosene or diesel. Contaminated or old fuel could make cleaning necessary immediately. (see Figure 16). Figure 16 © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 11 1. Be sure pump pressure is adjusted correctly. Poor combustion and / or soot 2. Poor fuel quality. 2. Be sure Kerosene/ diesel is not old production. or contaminated. © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 12: Wiring Diagram

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Wiring Diagram 70-SS AC 250V 3.15A ELECTRIC OUTLET AC 120V/60Hz 125-OFR © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 13: Exploded View

    NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Exploded View 70-SS © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 14 75-036-0400 Nipple 75-040-0610 Diffusion Cap 75-036-0500 Blower Motor Assembly 75-045-0200 Photocell 75-038-0200 Return Pipe 75-055-0100 Return Hose 75-055-0200 Electronic Pump Bracket 75-027-0255 Heat Shield 75-012-0320 Fuel Pressure Gauge 70-028-0200 © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 15 NEVER LEAVE HEATER UNATTENDED WHILE BURNING OR WHILE CONNECTED TO A POWER SOURCE Exploded View 125-OFR © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 16 72-037-0350 Temperature Overheat Sensor 72-040-0100 Heat Plate 72-012-0400 Safety Guard 72-012-0200 Front Frame 72-042-0410 Top Safety Guard 72-012-0250 Radiant Visors 72-012-0220 72-035-0630 Radiant Cone Gaskets 72-035-0615 Burner Housing Assembly © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 17: Limited Warranty

    9 digits. For Example: S160901126. Have your Serial Number ready before calling customer service at 800- 779-3267. Model #:________________________________ Serial #:________________________________ Serial Number Label Date of Purchase: ________________________ © 2017, Pinnacle Climate Technologies, Inc. Kerosene Radiant Heater User’s Manual...
  • Page 18 1 Industrial Blvd #101, Sauk Rapids, MN 56379 USA • Toll Free (800) 779-3267 Fax: 320-251-2922 • Web: www.masterindustrialproducts.com • Email: info@pinnacleclimate.com © 2017 Pinnacle Climate Technologies, Inc.
